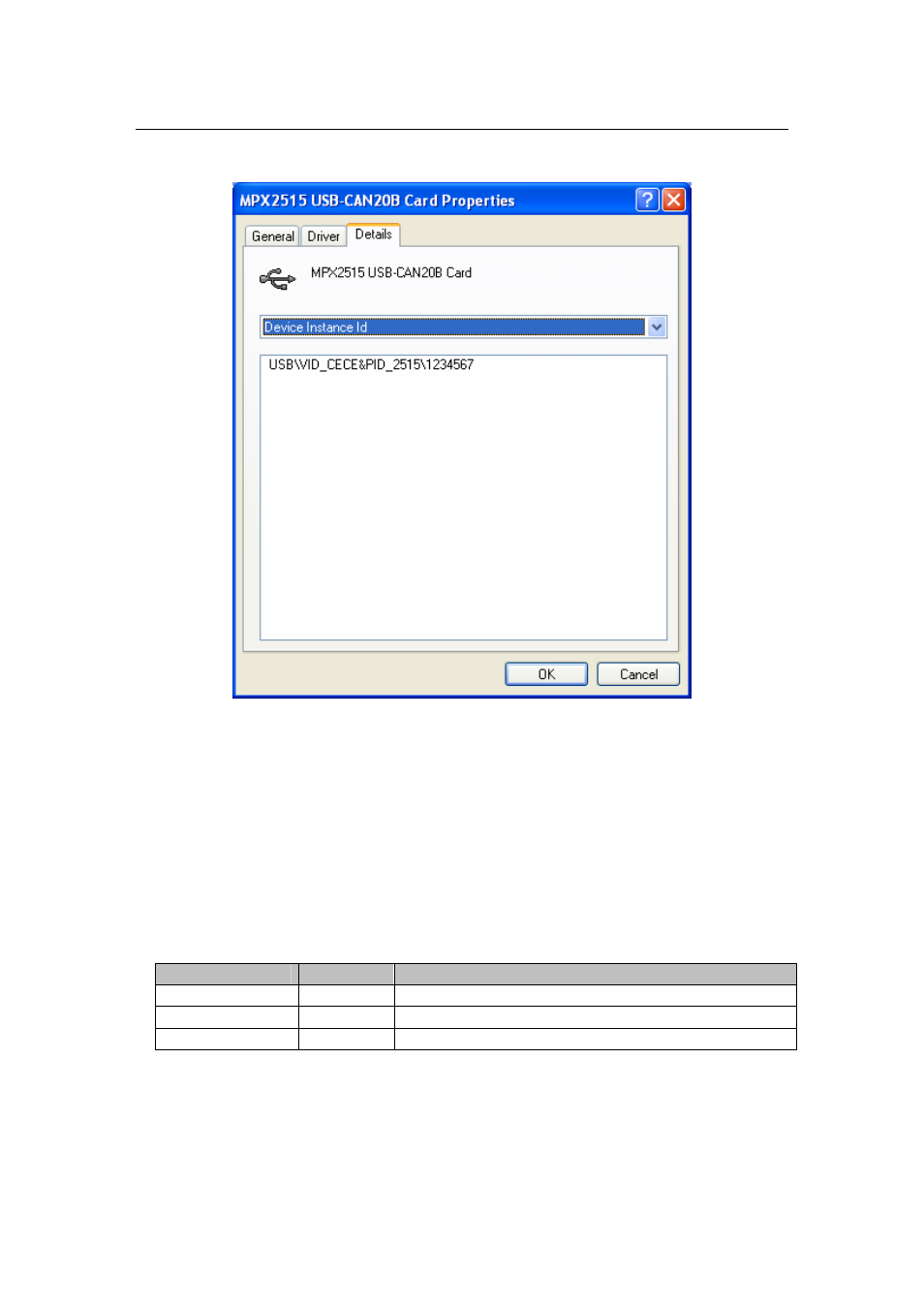

Figure 22 Device Instance ID of MPX-2515
1.9.2 LED Indicators
The following table defines the LED indicators that are used in the MPX-2515 card.
Please be noted that these LED indicators can be turned off by the software. CCP
provides a command that the application can issue to command MPX-2515 card to
either turn on or turn off these LED indicators. Please refer to the CCP section for the
format of this command.
POSITION
COLOR
DESCRIPTION
Q2 Red
CAN
bus
errors
Q3
Green
System timer blinking
Q5
Yellow
CAN bus received/transmit activities
Table 5 MPX-2515 LED Indicators
