Audio interface – COMMELL FS-97C User Manual
Page 26
FS-97C User’s Manual Hardware Setup
TV-out Interface
26
2.9.4
The board provides an HDTV interface with Intel 945GM(E), supports PAL and NTSC of TV
system, and display (clone or extended desktop) function with CRT,LVDS,DVI.

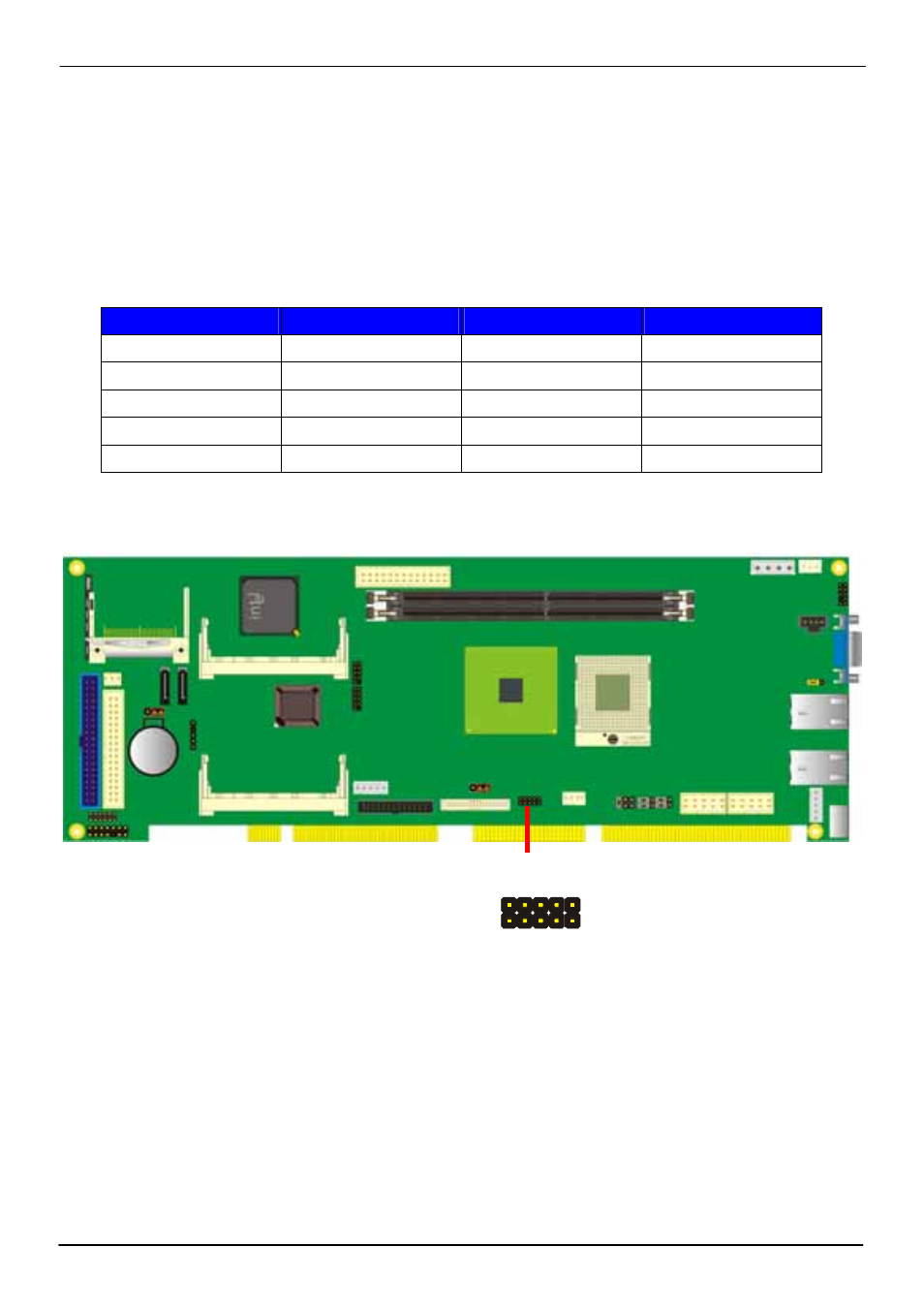

Connector: CN_HDTV
Connector type: 9-pin header HDTV connector (pitch = 2.54mm)
Pin Number
Assignment
Pin Number
Assignment
1 GND 2
DACB1
(Y)
3 DACB2
(Pb) 4
GND
5 GND 6 N/C
7 DACB3
(Pb) 8
GND
9 N/C 10 N/C
FS-979 integrated with REALTEK® ALC201A Codec for 2 channel sound output. It supports
CN_HDTV
10
1
