COMMELL FS-97C User Manual
Page 25

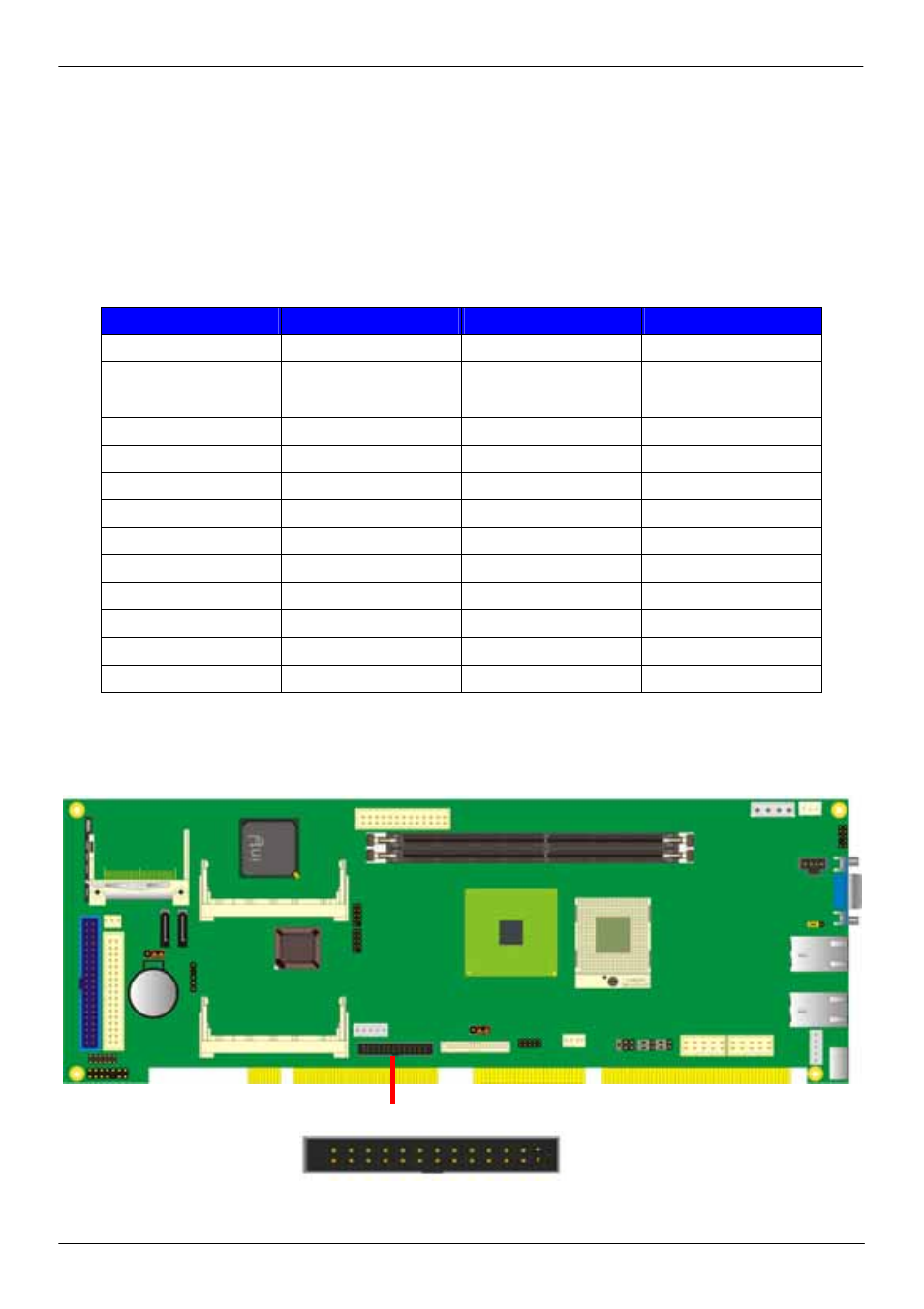

FS-97C User’s Manual Hardware Setup
Onboard Display Interface
25
2.9.3
The board also comes with a DVI interface with Chrontel CH7307C for digital video
interface.
Connector: CN_DVI
Connector type: 26-pin header connector (pitch = 2.00mm)
Pin Number
Assignment
Pin Number
Assignment
1 TX1+ 2 TX1-
3 Ground 4 Ground
5 TXC+ 6 TXC-
7 Ground 8 PVDD
9 N/C 10 N/C
11 TX2+ 12 TX2-
13 Ground 14 Ground
15 TX0+ 16 TX0-
17 N/C 18
HPDET
19 DDCDATA 20 DDCCLK
21 GND 22 N/C
23 N/C 24 N/C
25 N/C 26 N/C
CN_DVI
1
2
25
26
