2.4 < CPU and Memory Setup >
2.4.1
The board comes with the socket479 for Intel Core 2 Duo/Core Duo /Core solo
processor , it supports new generation of Intel Core 2 Duo/Core Duo /Core solo
processor with 533/667MHz of front side bus and 4MB L2 cache. Please follow the
instruction to install the CPU properly.

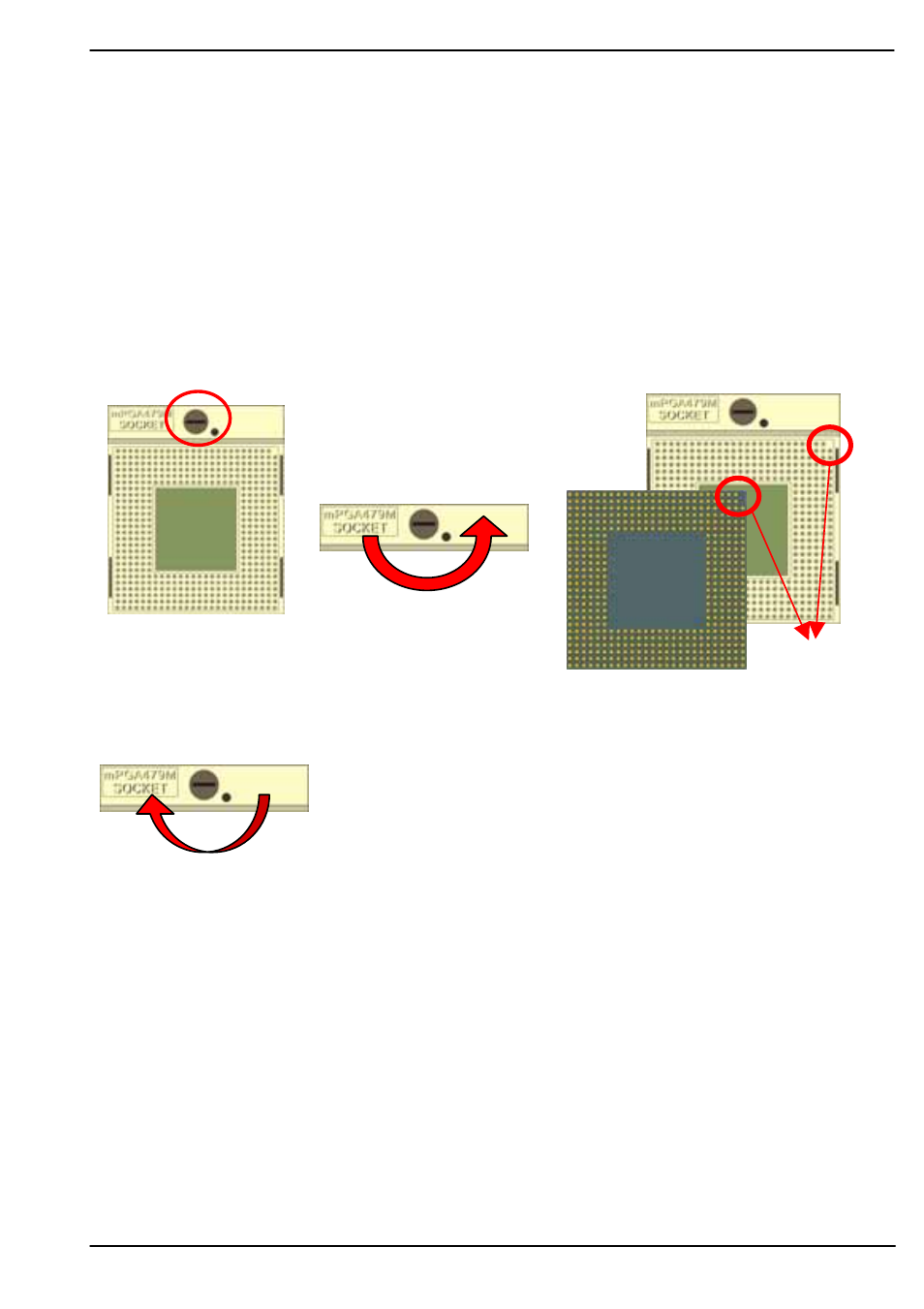

1. Use the flat-type
screw drive to unlock
the CPU socket
Unlock way
Check point
2. Follow the pin direction to install
the processor on the socket
3. Lock the socket
