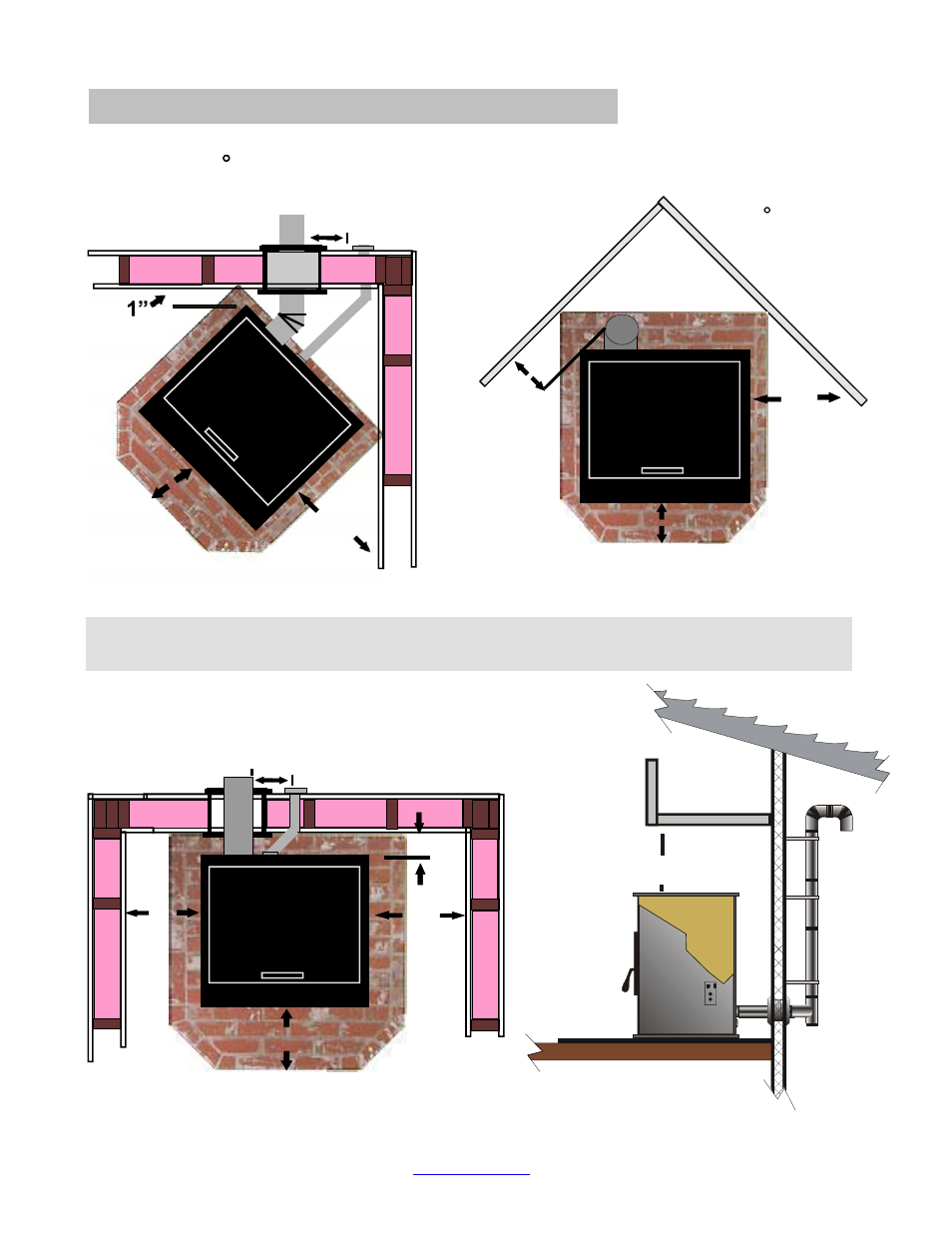

CLEARANCES – “CORNER INSTALLATION”:
Figure 14 Figure 15
Note: If interior vertical vent is used, the clearance to the back wall is determined by the upward-turned
elbow or “Tee”. It will vary in depth depending on the brand of PL vent used.
Before placing the stove, connect the elbow or “Tee” and measure off the 3” clearance.
ALCOVE INSTALLATION
:
Figure 16 Figure 17
3”
6”
10”
I
NTERIOR
V
ERTICAL
45 C
ORNER
