Page 3
E48SR12007_05222008
3

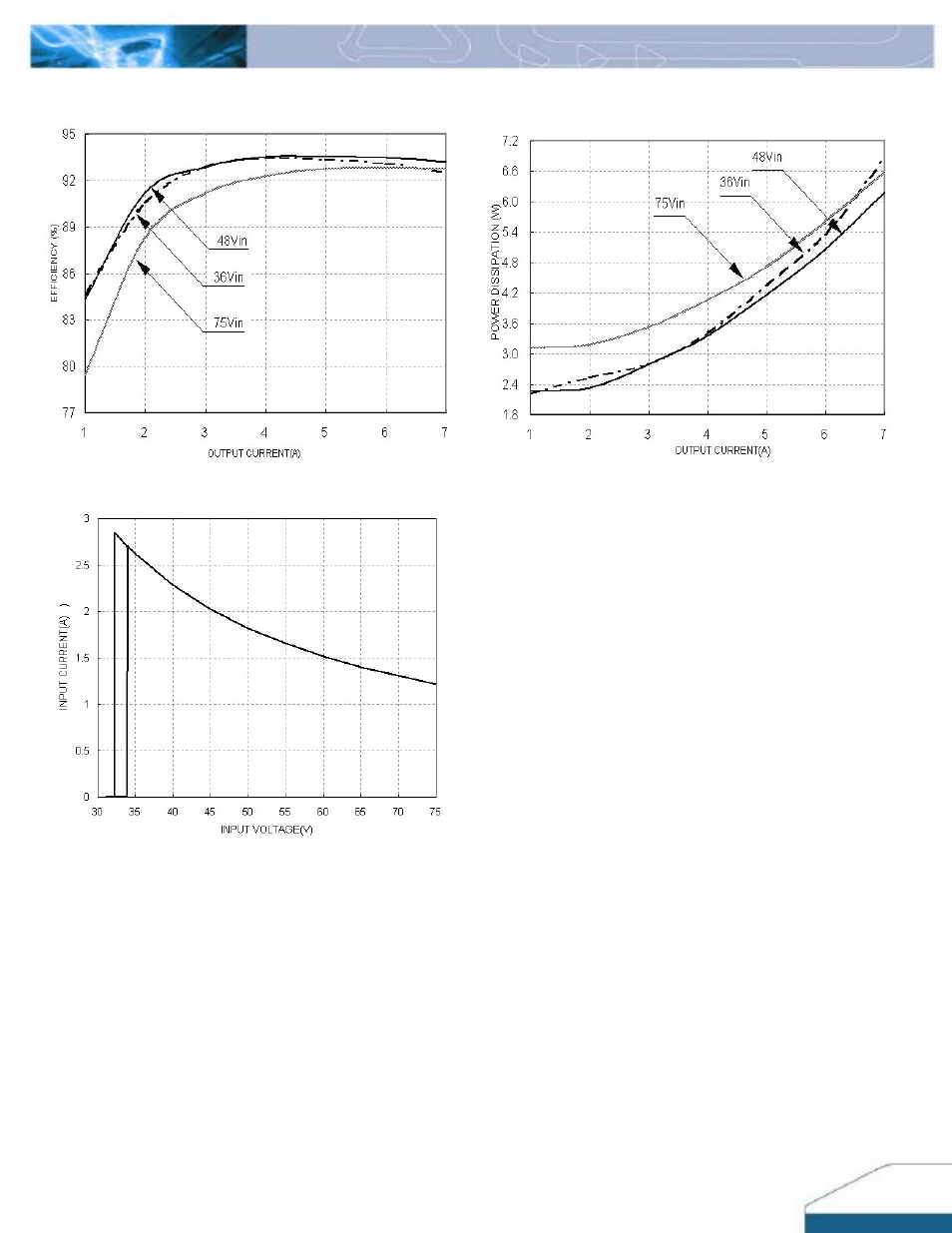

ELECTRICAL CHARACTERISTICS CURVES
Figure 1:
Efficiency vs. load current for minimum, nominal, and
maximum input voltage at 25°C, 300LFM airflow.
Figure
2:
Power dissipation vs. load current for minimum,
nominal, and maximum input voltage at 25°C, 300LFM airflow.
Figure 3:
Typical full load input characteristics at 25°C
