4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)

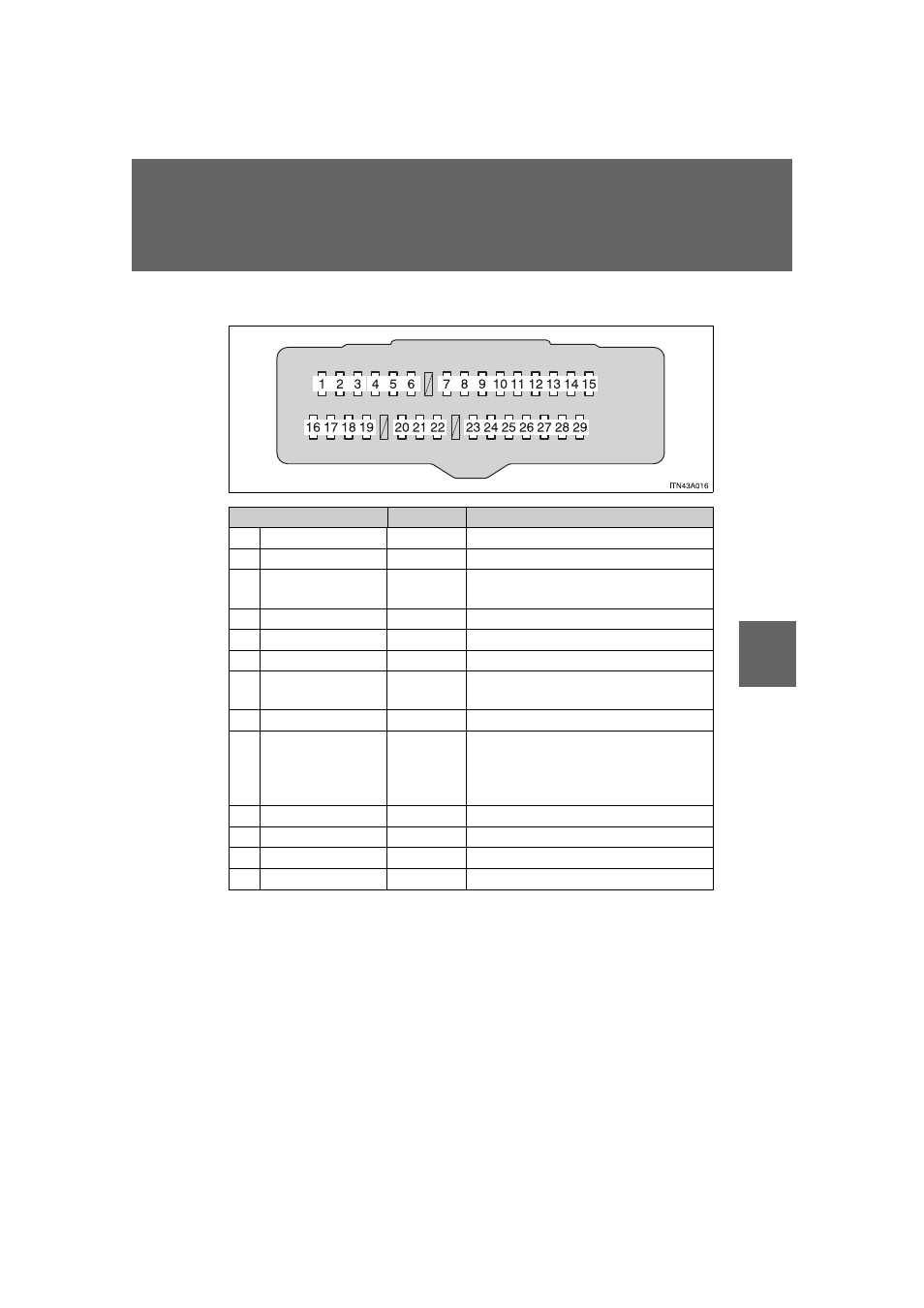

n Driver’s side instrument panel
Fuse Ampere Circuit
1 RR DOOR 20 A Power window
2 RL DOOR 20 A Power window
3 FR DOOR 20 A
Power window, driving position
memory system
4 FOG 15 A Front fog lights
5 OBD 7.5 A On-board diagnosis system
6 MPX-B 7.5 A Multiplex communication system
7 FL DOOR 20 A
Power window, driving position
memory system
8 FUEL OPN 7.5 A Fuel filler door opener
9 AM1 7.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system, starting system, ignition
system
10 A/C 7.5 A Air conditioning system
11 S-HTR 20 A Air conditioning system
12 DOOR No.2 25 A Multiplex communication system
13 S/ROOF 30 A Moon roof
