4-3. Do-it-yourself maintenance
AVALON_U (OM41428U)

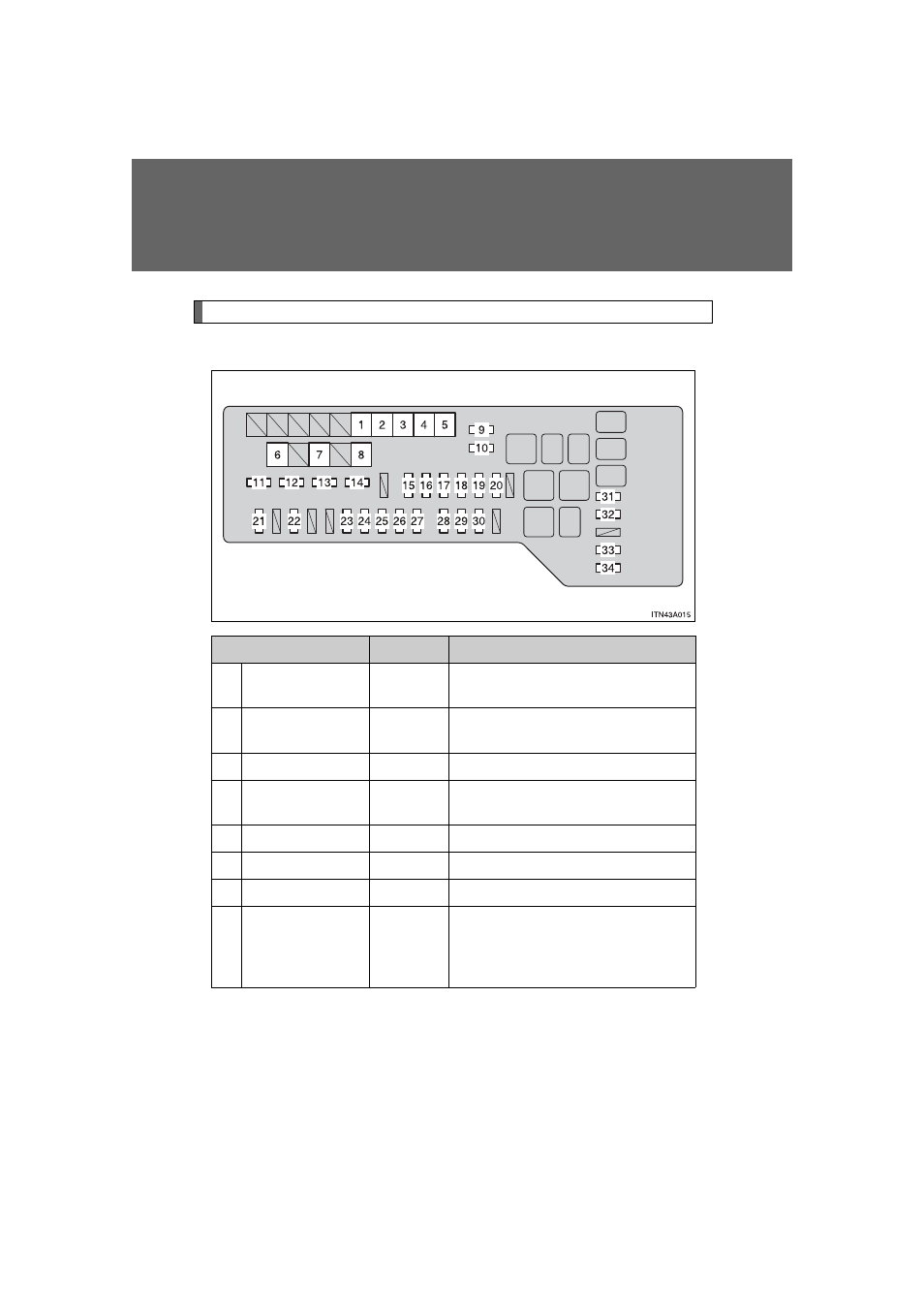

Fuse layout and amperage ratings
n Engine compartment
Fuse Ampere Circuit
1 RR DEF 50 A
Rear window defogger, outside
rear view mirror defogger
2 ABS/VSC No.2 30 A
Anti-lock brake system, vehicle
stability control system
3 RDI FAN 50 A Electric cooling fan
4 ABS/VSC No.1 50 A
Anti-lock brake system, vehicle
stability control system
5 HEATER 50 A Air conditioning system
6 ST/AM2 30 A Starter system
7 MAIN 40 A Headlights
8 ALT
140 A
or
120 A
Charging system, RR DEF, ABS/
VSC No.2, HEATER, ABS/VSC
No.1, RDI FAN, WASHER,
S-HORN
