NAC 552 Preamplifier

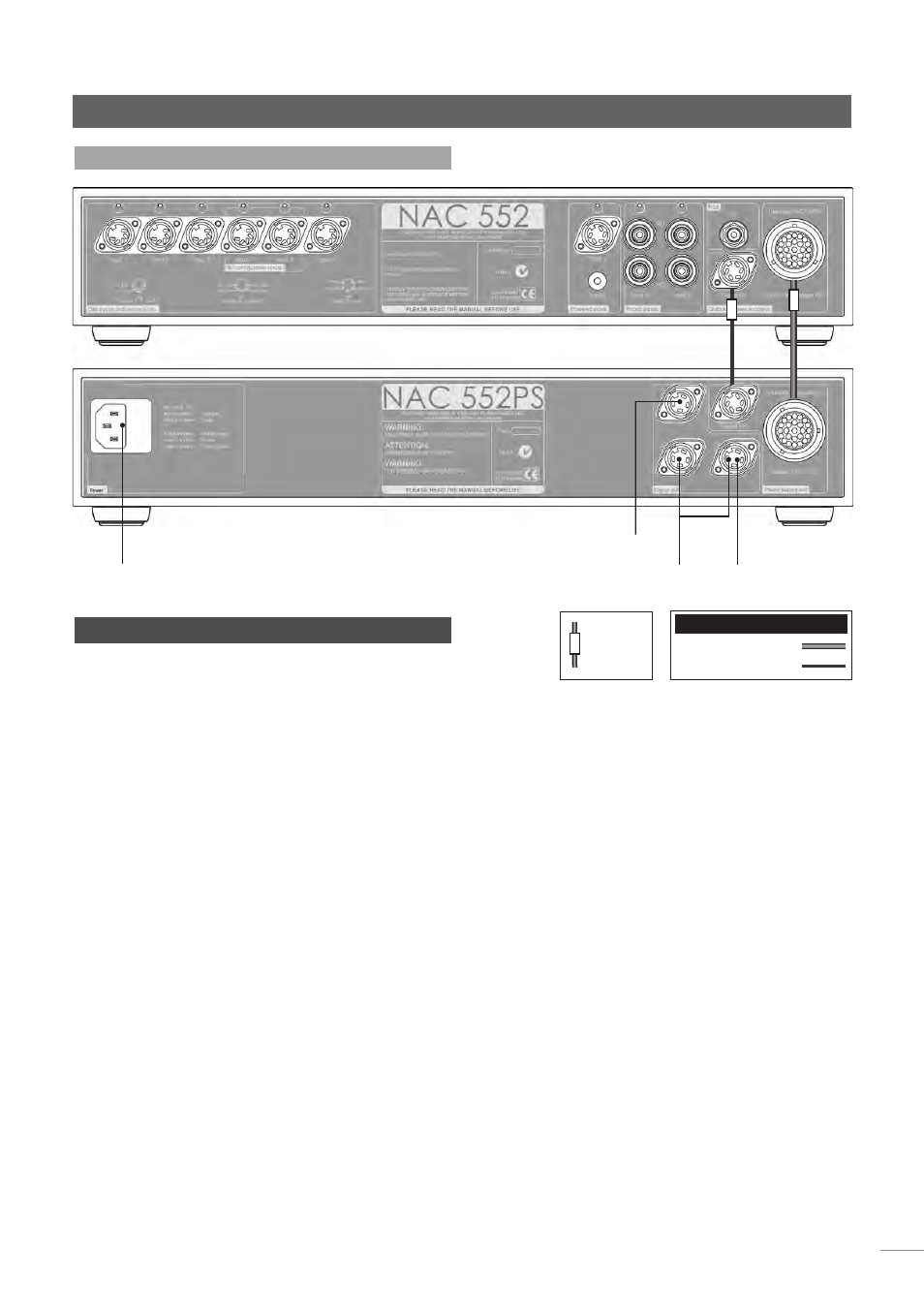

5.3 NAC 552 Connected to NAC 552PS
mains input
and fuse
Note:
For best performance the Burndy and 5 pin DIN
cables should be run as close together as possible.
to stereo power
amplifiers
to mono or dual mono
power amplifiers
additional signal output
cable
direction
marker
NAC 552 Burndy
240° 5 to 5 pin DIN
Interconnect Cables
6 NAC 552/NAC 552PS Specification
Input Sensitivities:
75mV, 47kΩ
Overload Margins:
40dB
(all inputs all audio frequencies).
Main Output Level:
0.775V, <50Ω
Tape Output Level:
75mV, 600Ω
Auxiliary Power Outputs:
For Naim phono stage
Dimensions (H x W x D):
Both 87 x 432 x 314mm
Weight:
NAC 552 - 12.9kg
NAC 552PS - 13.9kg
Mains Supply (NAC 552PS):
100V, 115V or 230V, 50/60Hz
