E14 E15
NAC 152 XS Preamplifier
to power amplifier with internal power supply
17.2 NAC 152 XS Rear
ch1
-ve
nc
nc ch2
cd, tun, hdd, av,
and aux inputs
+ve
-ve
+ve
ch1 ch2
Alternative aux 2
input
Note: The NAC 152 XS AUX 2 input is provided with two
sockets. The right hand socket (fitted on delivery with a
blanking cover), is intended for use with a Stageline or
SuperLine phono stage and incorporates an appropriate
DC power supply. The two sockets must not be used
simultaneously.
Note: The RS232/comms interface is an optional upgrade.
It can be specified at time of order or fitted retrospectively.
Contact your local representative or Naim Audio directly for
further information.
signal ground
cd
in
tuner
in
hdd
in
aux 1
in
av
in
aux 2 in & power out
(cover fitted)
power supply upgrade
link plugs fitted
remote in
RS232
interface
to power amplifier with
internal power supply
aux 2
in
cable
direction
marker
4 to 4 pin DIN
Interconnect Cables
240° 5 to 5 pin DIN
cd in
phono
tuner in
phono
hdd in
phono
av in
phono
aux 1 in
phono
line
output
subwoofer
output
volume front panel
input socket
mute source selection

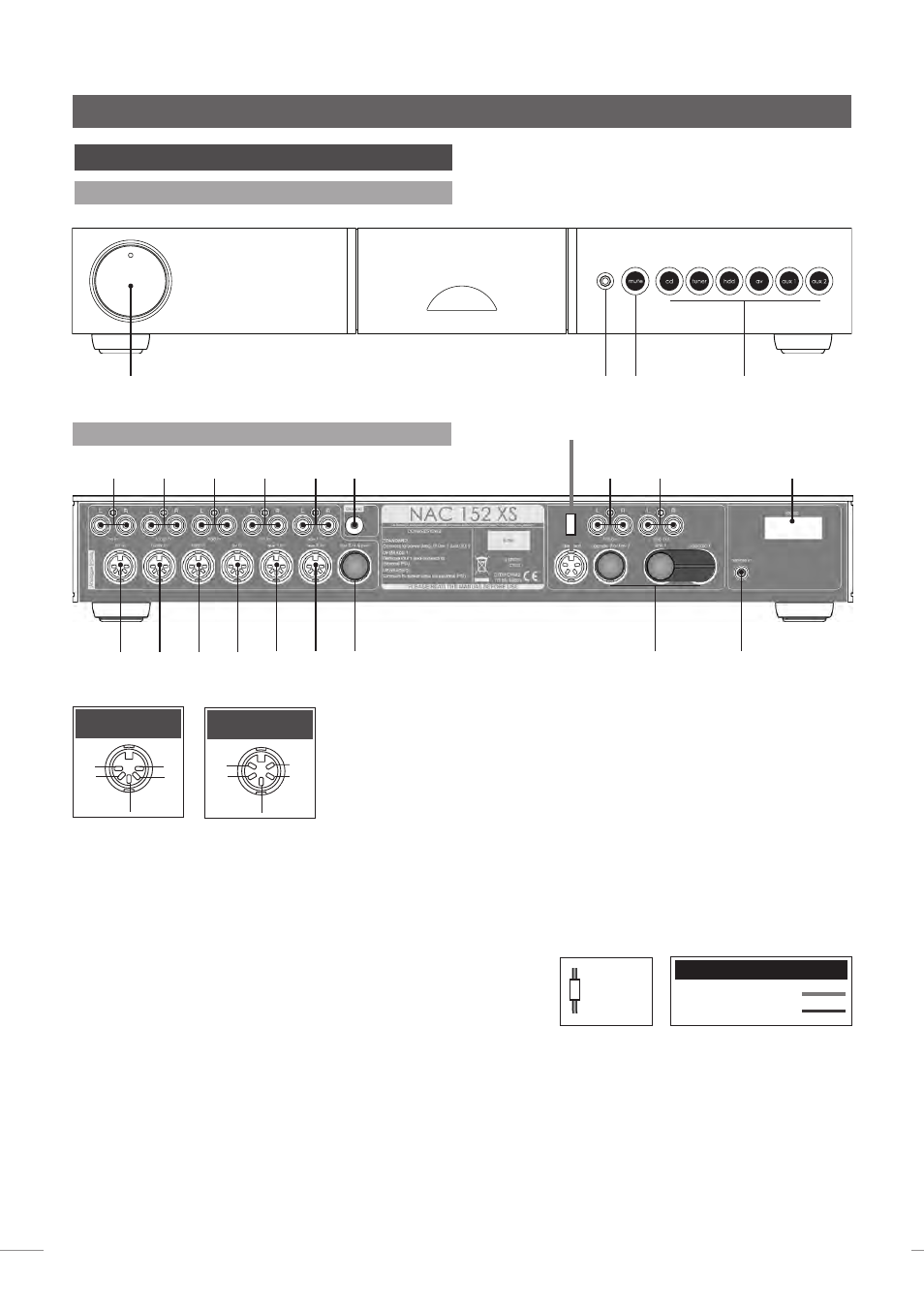

17 NAC 152 XS Controls and Connections
17.1 NAC 152 XS Front
Note: The NAC 152 XS features various technologies to
reduce microphonic effects. Some movement of the board
and sockets when connecting and disconnecting cables is
normal.
