E12
NAC 202 Preamplifier
to power
amplifier
with
internal
power
supply

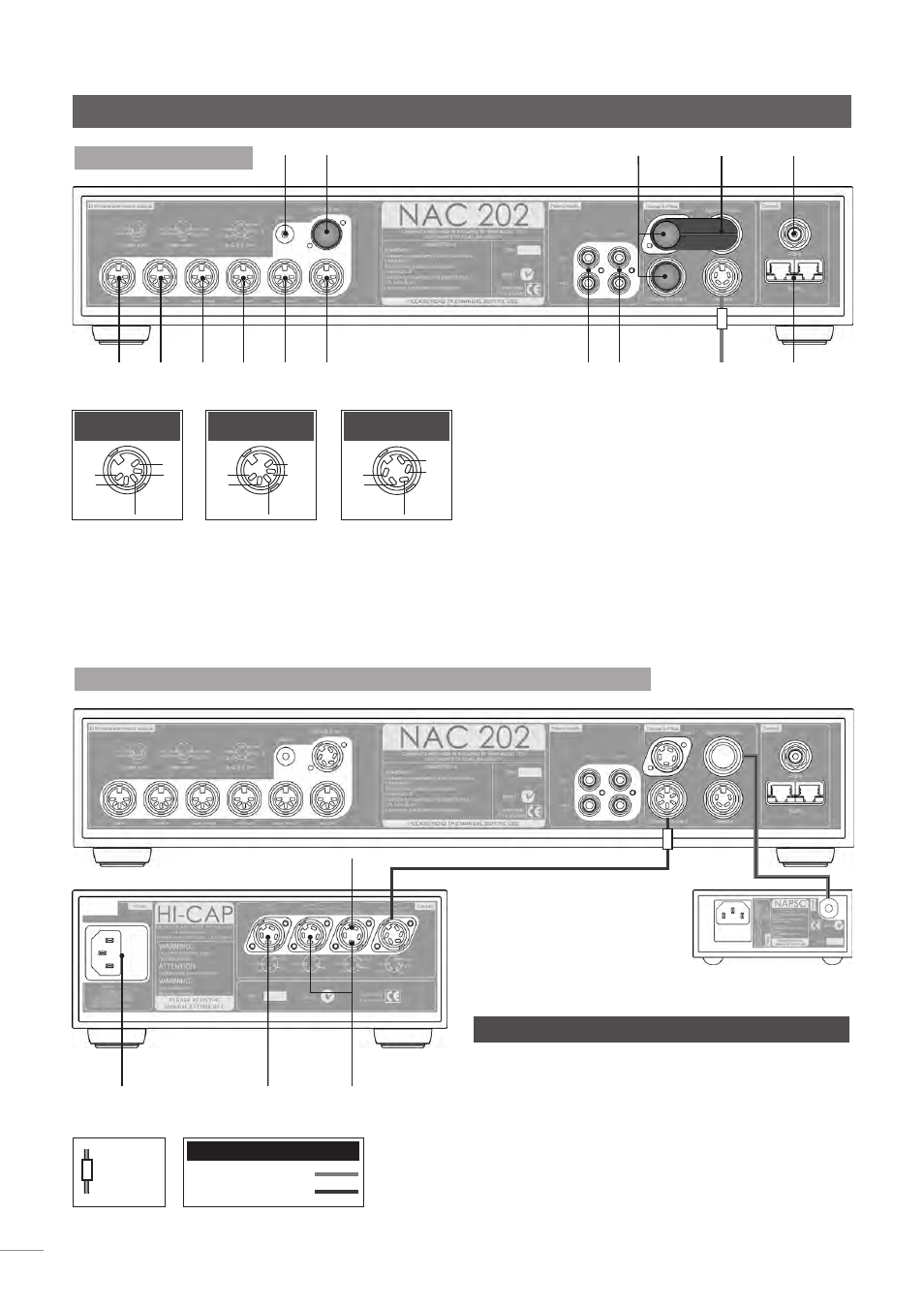

14.2 NAC 202 Rear
in 1
cd
in 2
tuner
in 3
tape
in 4
av
in 5
aux 1
in 6
aux 2
cd/RCA
Phono
ch1(L)
ch2(R)
aux 2/RCA
Phono
ch1(L)
ch2(R)
RS232
interface
RC5 in signal
g’nd
in 6
(alternative)
Note: The NAC 202 AUX 2 input is provided with two sockets.
The upper socket, fitted on delivery with a blanking cover,
is intended for use with a Stageline or Prefix Phono stage
and incorporates an appropriate DC power supply. The two
sockets must not be used simultaneously.
Note: The RS232/comms interface is an optional upgrade.
It can be specified at time of order or fitted retrospectively.
Contact your local representative or Naim Audio directly for
further information.
to NAPSC power supply/output option sockets
with link and blanking plugs fitted
ch1
-ve
nc
nc
ch2
Inputs 1, 2 & 6
ch1
-ve
ch1
(out)
ch2
(out)
ch2
Inputs 3, 4 & 5
+ve
-ve
+ve
ch1
ch2
Input 6
(alternative)
14.3 NAC 202 Connected to Hi-Cap and NAPSC
mains input
and fuse
to stereo power amplifiers
to mono or dual
mono power
amplifiers
additional
signal out-
put
15 NAC 202 Specification
Input Sensitivities: 75mV, 47kΩ
Overload Margins: 40dB
(all inputs all audio frequencies)
Main Output Level: 0.775V, <50Ω
Tape Output Level: 75mV, 600Ω
Auxiliary Power Outputs: For Naim phono stage.
Dimensions (H x W x D): 87 x 432 x 314mm
Weight: 7.0kg
Mains Supply (Hi-Cap): 100V, 115V or 230V, 50/60Hz
cable
direction
marker
4 to 4 pin DIN
Interconnect Cables
240° 5 to 5 pin DIN
