FORM NO. L-20230-E-1107
INSTALLATION

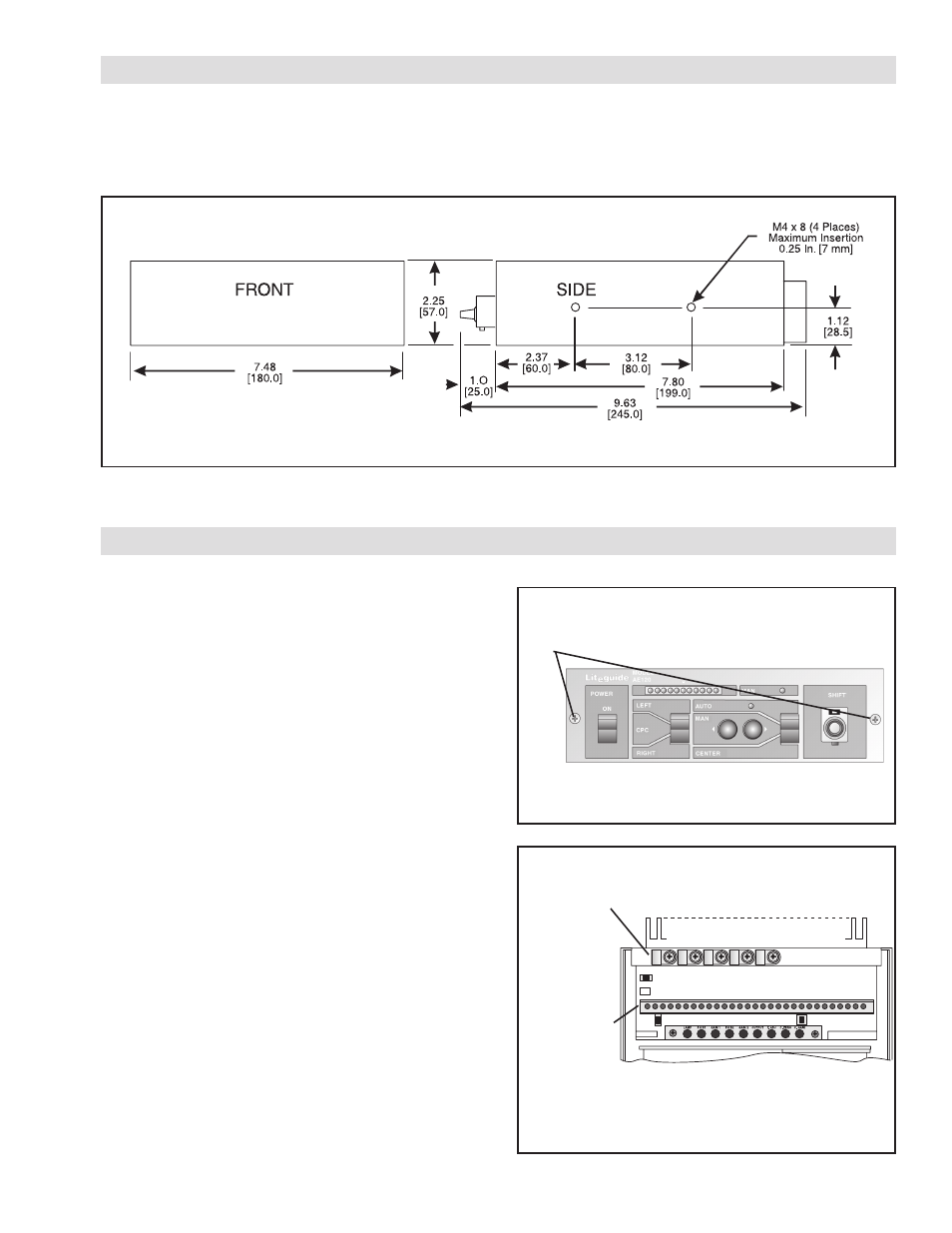

Refer to Figure 3 for mounting dimensions when the
AE120 is used as a free standing Web Guide Amplifier.
FIGURE
Remove
screws
Terminal Block
Strain Relief
Clamps
FIGURE
FIGURE
NOTE: The AE120 is an electronic component and
should be mounted in a shock and vibration free
area which has an ambient temperature greater
than 32 o F [0 o C] and less than 122 o F [50 o C].
ELECTRICAL CONNECTIONS
When used as a stand alone Web Guide Amplifier,
make electrical connections according to the following
procedure:
1. Remove two screws on the front panel (See
Figure 4).
2. Slide the chassis out of the housing to allow access
to the Terminal Block (See Figure 5).
NOTE: All cables must be routed through the
Strain Relief Clamps (See Figure 5).
