FORM NO. L-20341-E-0208

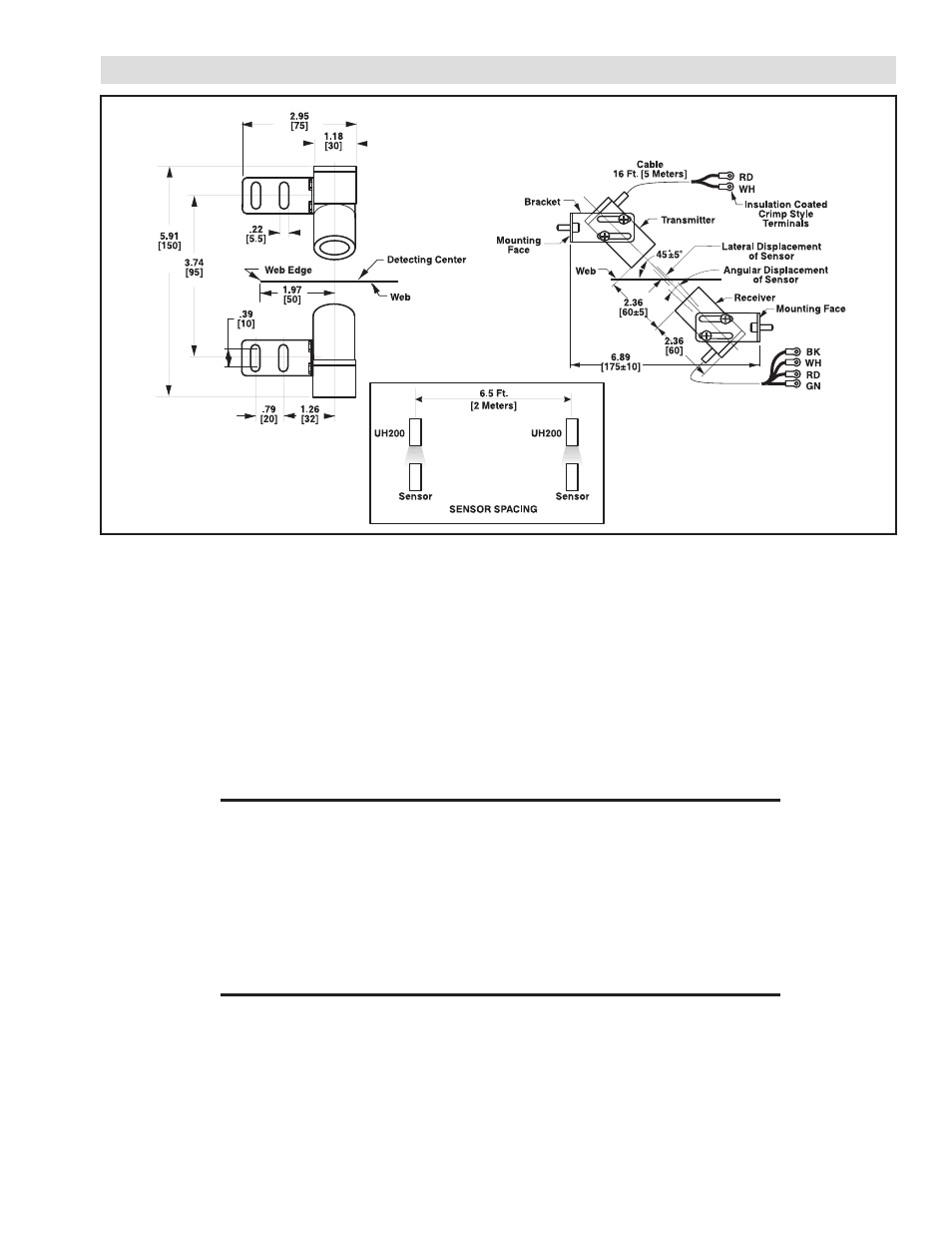

FIGuRE 2
NOTE: Sensor placement is dependent on the application, whether web or sheet-fed type machines.
SENSORS
The PC210 utilizes the UH200 sensor pair (finished
in black). The sensor model is selected with a switch
located on the PC210 Setup Control inside the Cover
Panel.
The UH200 sensor operates at a frequency of 40kHz.
If two sets of sensors of the same frequency are placed
close together there is a possibility of interference of
the signals. To prevent this interference or crosstalk, the
sensors must be placed at least 80 in. [2m] apart. In no
event may the sensors be placed closer than 8 in.[20 cm].
WEB FED MACHINES
The Sensor must be installed where the web pass line
is stable and does not change. If possible, position the
Sensor between two closely spaced rolls on a vertical
web run. The Sensor must be set at least 2 in. [50 mm]
in from the edge of the web. NOTE: If several different web widths will run on the
machine the Sensor must be mounted where it will not
have to be moved when the web width is changed.
SHEET-FED MACHINES
Place the Sensor a minimum of 2 in. [50mm] in from the
edge of the sheet. The Sensor must be placed in an area
of the machine where the sheets are stable as they pass
through the Sensor beam.
INSTALLATION
(continued...)
(continued...)
