1

FORM NO. L-20341-E-0208

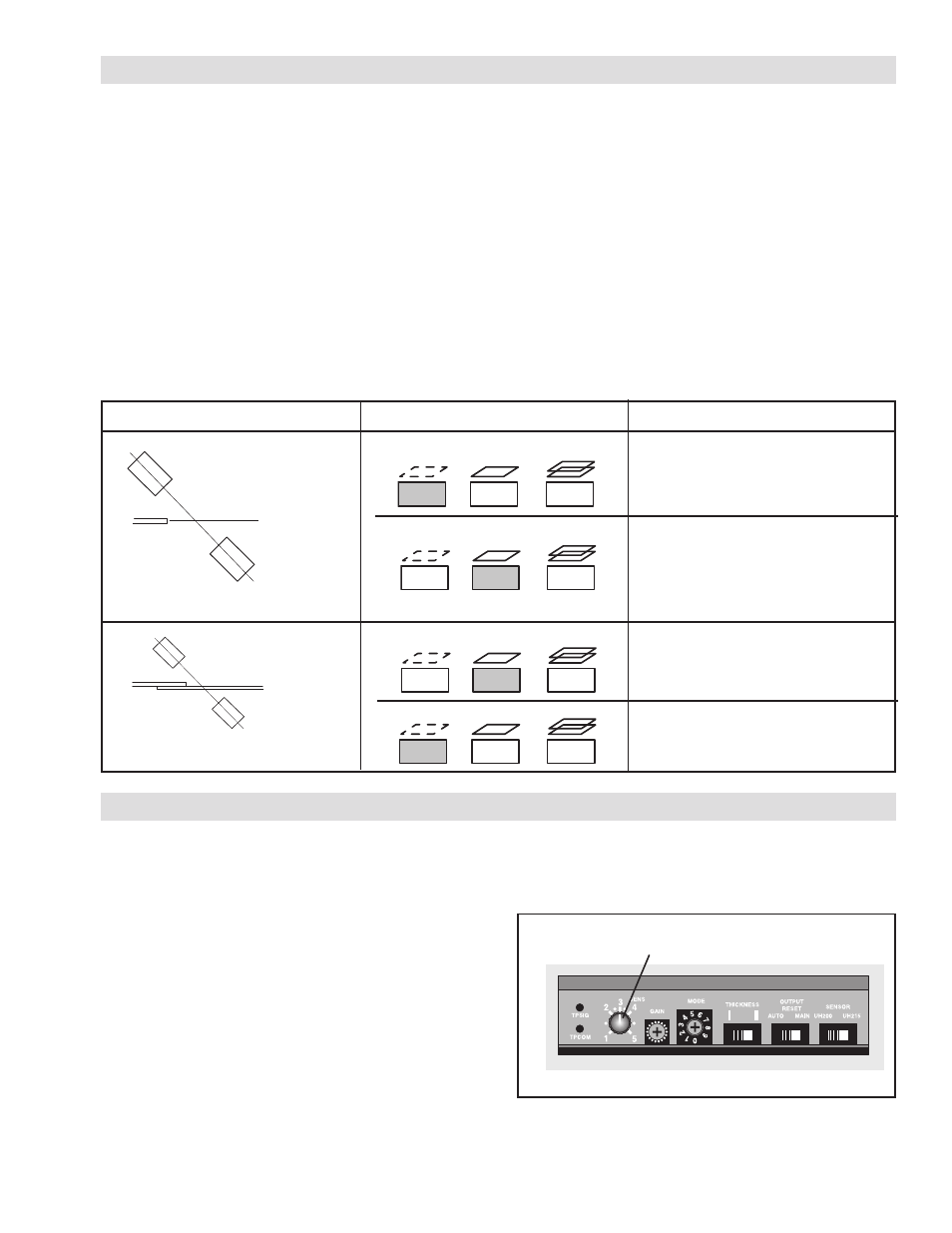

T

esT

R

un

in

W

eb

b

Reak

o

peRaTion

1. Set the Mode Selector Switch to Mode 2 or 5.

2. Set the Web Thickness Selector Switch as

appropriate for web.

3. Set the Power Switch to ON.

4. Check operation according to Table 5.

5. The Test Switch can be depressed prior to testing

to prevent the Web Break Relay from changing state
when a test piece is placed in the sensor path with
an open section (which looks like a web break).
The PC210 is in test mode when the red LED in
the Test Switch glows. When the open section
passes through the sensor, the Normal Run Indicator
should go out and the Web Break Indicator should
glow. The PC210 will return to normal State when a
section of web reenters the Sensor.

6. Depress Test Switch again and the imbedded LED

will go out, indicating the PC210 is back to normal
operation and the Web Break Relay is operational.

CONDITION

STATuS

CORRECTIvE ACTION

45

o

No Web in Sensor

Normal

Abnormal

1. Is the Sensor installed

and aligned correctly?

2. Has dust accumulated inside

the Sensor tube?

(Clean the Sensor tube with an

air gun or remove the Sensor

tube for cleaning.)

Normal

Abnormal

Set the Web Thickness Selector

Switch LEFT 0.002 - 0.008 In. [0.05

- 0.020 mm].

Single thickness of Web in Sensor

TABLE 5 WEB BREAk OPERATION

None

None

CALIBRATION

This potentiometer adjusts PC210 sensitivity to splices.

It has no effect in Sheet-Fed Mode 7.

The Web Splice Sensitivity Control is normally set to

Position 3. In rare cases where the thickness of the

splice is not twice the thickness of the web (as a butt

splice made with single sided taping and very thin tape),

it may be necessary to increase sensitivity (See Figure 6).

The sensitivity should be increased slowly from 3 - 3.5 or

even 4.

NOTE: An increase in sensitivity will also increase the

possibility of false triggering. Increase sensitivity slowly

and only as much as necessary.

Web Splice

Sensitivity Control

FIGuRE 7

WEB SPLICE SENSITIvITY CONTROL

(See Figure 7)

OPERATION

(continued...)
