Chapter 6 DIP Switch Settings

: You must re-start for DIP switching configuration to take

effective.

6.1 Connecting to a projector or monitor

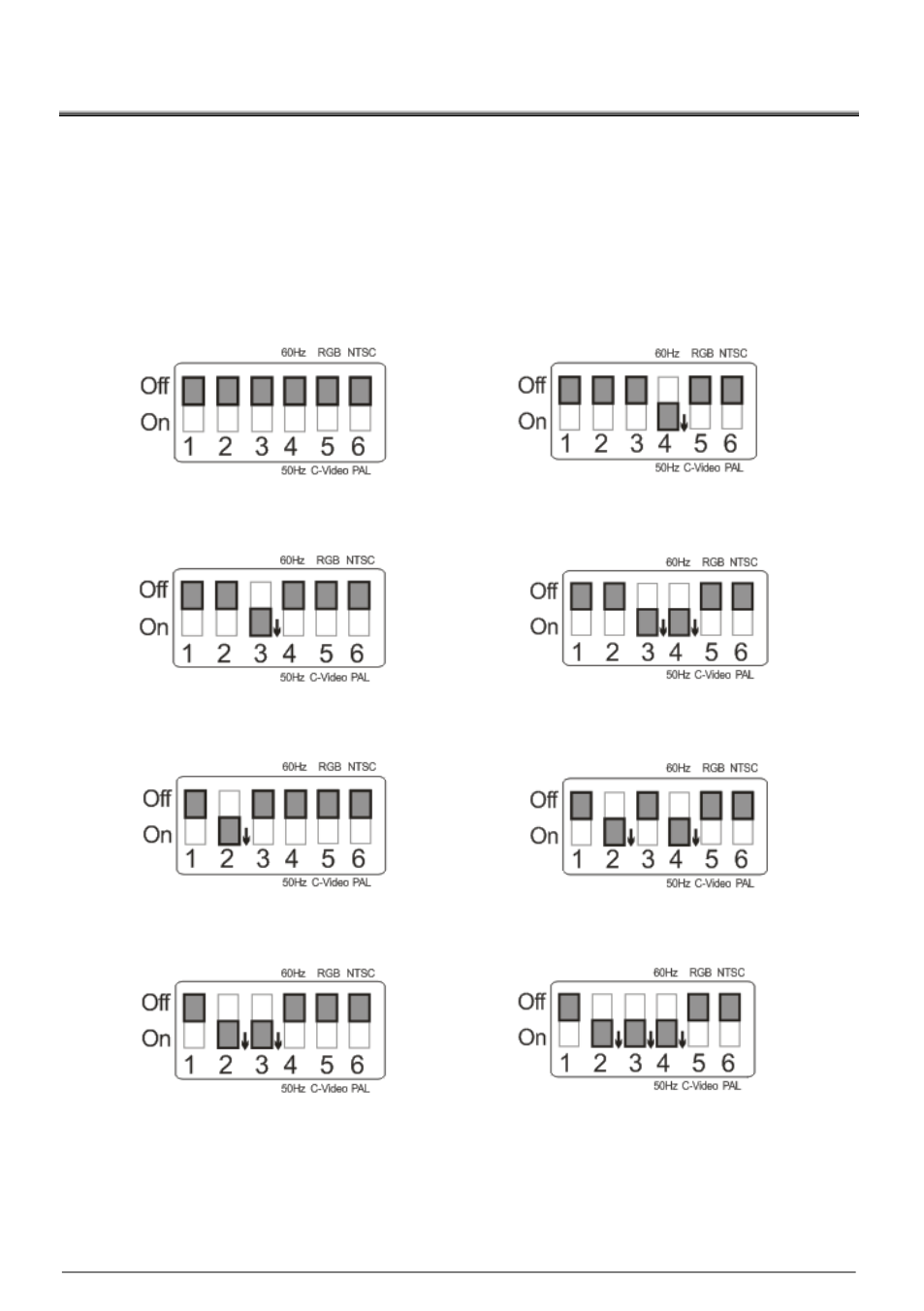

6.1.1 XGA 60Hz output( default values) XGA 50Hz output

6.1.2 SXGA 60Hz output

SXGA 50Hz output

6.1.3 720P 60Hz output

720P 50Hz output

6.1.4 Special Mode 60Hz output

Special Mode 50Hz output
