8. Install the snap-fit ferrite clamp on all of the external
digital telephone cables as close as possible to the
cables’ board connectors.
CAUTION: The ferrite clamp must be installed in
order to meet EMI requirements.
9. Select a new PCI slot and repeat steps 3-8 for each
board you are installing.
10. Use the CT Bus cable to connect the board(s) you are
installing to other boards in the system.
NOTE: Your system may include both CT Bus and
SCbus boards. To connect both board types, you must
install a CT Bus/SCbus Adapter on one of the CT Bus
boards in a system. See the CT Bus/SCbus Adapter
Quick Install Card for installation details about the
Adapter and the bus cables. Contact your Dialogic
®
Sales Representative to order an Adapter.
11. Install CT Bus Termination Jumpers only on boards
located at each end of the CT Bus cable. See Physical
Description section.
12. Replace the chassis cover plate when finished and
reconnect the power cords.
13. Turn the power to the chassis ON.
CAUTION: If your BIOS is set to use Plug and Play
technology and there are ISA boards in your system,
an IRQ conflict can be created if a DM3 board is
assigned the same IRQ as an ISA board. This could
cause the machine to stop responding. You can prevent
this by entering the BIOS and reserving the appropriate
IRQs (those used by your ISA boards) for ISA use
only.
After Installing the
Hardware
After installing the Dialogic
®
hardware, proceed with the
software installation as described in the Dialogic
®
System
Software documentation (if applicable).
For technical specifications and product information, see
the Dialogic website,
Warranty and Return
Information
Warranty Period
For specific warranty information for this board, refer to
the Warranty section of the Products page, located at this
URL: http://www.dialogic.com/warranties/.
Contacting Technical Support
Dialogic provides technical support for its products
through a network of value added distributors who are
trained to answer technical questions on installing and
configuring Dialogic
®
products. If you are unsure how to
contact your support channel, please call Dialogic in the
United States at 973-967-6600 (9am-5pm EST) and we
will assist in obtaining the appropriate support channel.
Outside the United States please refer to
to obtain
local contact information. Dialogic also provides direct
support via Dialogic
®
Pro™ Services agreements. For
more details of direct support from Dialogic please refer
.
Returning a Product
To return a board for warranty repair or any other returns,
please refer to the following:
Sales Assistance
If you have a sales question, please contact your
local Sales Representative or the Regional Sales Office for
your area. Address, telephone and fax numbers, are
available at the Dialogic website located at:
To purchase Dialogic
®
products, please refer to the
following website to locate the appropriate supplier:
All contents of this document are furnished for informational use only
and are subject to change without notice and do not represent a
commitment on the part of Dialogic Corporation or its subsidiaries
(“Dialogic”). Reasonable effort is made to ensure the accuracy of the
information contained in the document. However, Dialogic does not
warrant the accuracy of this information and cannot accept
responsibility for errors, inaccuracies or omissions that may be
contained in this document.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN
CONNECTION WITH DIALOGIC
®
PRODUCTS. NO LICENSE,
EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO
ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY
THIS DOCUMENT. EXCEPT AS PROVIDED IN A SIGNED
AGREEMENT BETWEEN YOU AND DIALOGIC, DIALOGIC
ASSUMES NO LIABILITY WHATSOEVER, AND DIALOGIC
DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY,
RELATING TO SALE AND/OR USE OF DIALOGIC PRODUCTS
INCLUDING LIABILITY OR WARRANTIES RELATING TO
FITNESS FOR A PARTICULAR PURPOSE,
MERCHANTABILITY, OR INFRINGEMENT OF ANY
INTELLECTUAL PROPERTY RIGHT OF A THIRD PARTY.
Dialogic products are not intended for use in medical, life saving, life
sustaining, critical control or safety systems, or in nuclear facility
applications.
It is possible that the use or implementation of any one of the concepts,
applications, or ideas described in this document, in marketing
collateral produced by or on web pages maintained by Dialogic may
infringe one or more patents or other intellectual property rights owned
by third parties. Dialogic does not provide any intellectual property
licenses with the sale of Dialogic products other than a license to use
such product in accordance with intellectual property owned or validly
licensed by Dialogic and no such licenses are provided except pursuant
to a signed agreement with Dialogic. More detailed information about
such intellectual property is available from Dialogic’s legal department
at 9800 Cavendish Blvd., 5
th
Floor, Montreal, Quebec, Canada H4M
2V9. Dialogic encourages all users of its products to procure all
necessary intellectual property licenses required to implement any
concepts or applications and does not condone or encourage any
intellectual property infringement and disclaims any responsibility
related thereto. These intellectual property licenses may differ
from country to country and it is the responsibility of those who
develop the concepts or applications to be aware of and comply
with different national license requirements.
Dialogic, Diva, Eicon, Eicon Networks, Eiconcard and SIPcontrol,
among others, are either registered trademarks or trademarks of
Dialogic. Dialogic's trademarks may be used publicly only with
permission from Dialogic. Such permission may only be granted by
Dialogic’s legal department at 9800 Cavendish Blvd., 5th Floor,
Montreal, Quebec, Canada H4M 2V9. Any authorized use of
Dialogic's trademarks will be subject to full respect of the trademark
guidelines published by Dialogic from time to time and any use of
Dialogic’s trademarks requires proper acknowledgement. The names
of actual companies and products mentioned herein are the trademarks
of their respective owners.

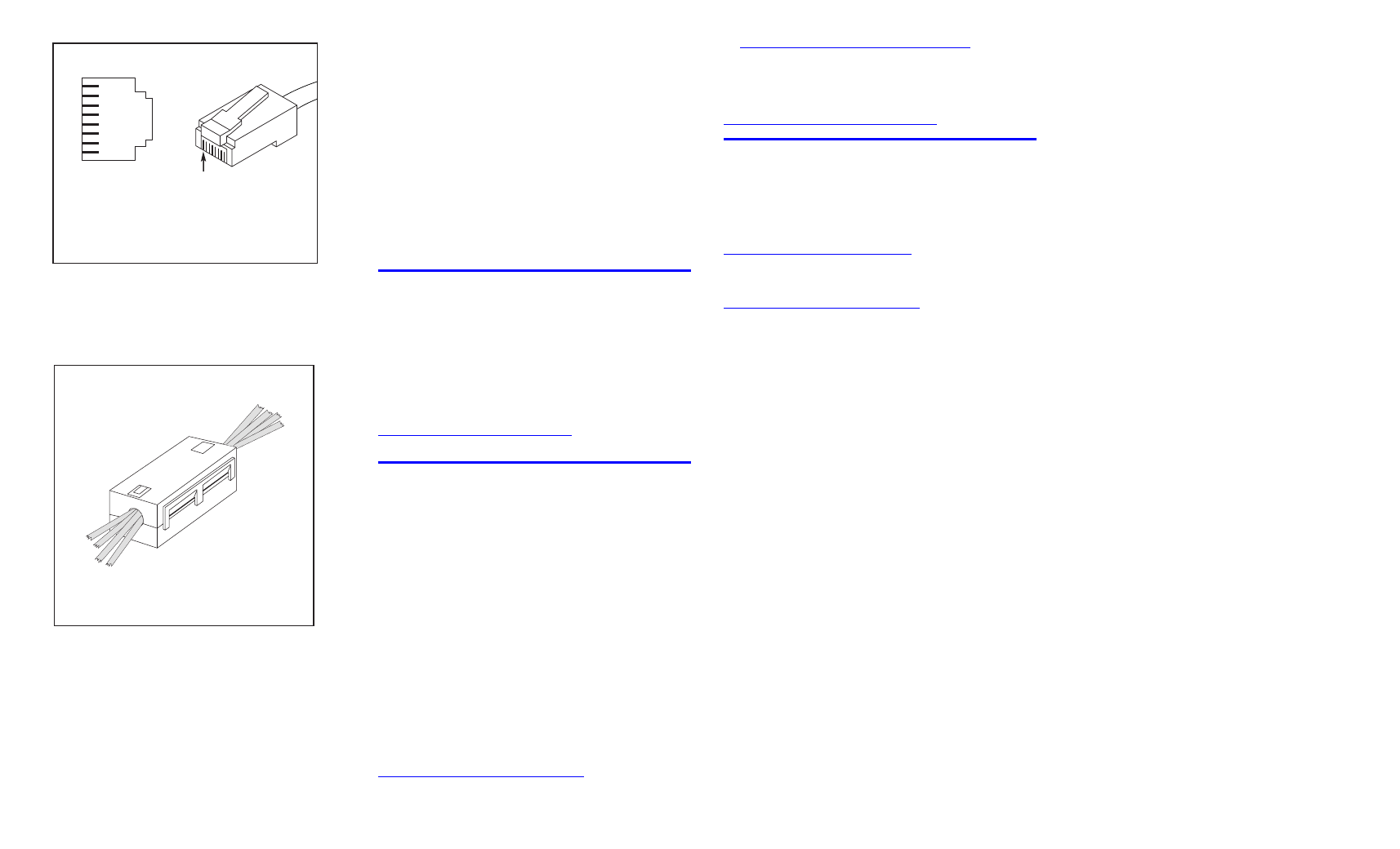

Network Interface
Cable Connector
CHASSIS GROUND
CHASSIS GROUND
CHASSIS GROUND
XMIT_TIP
XMIT_RING
CHASSIS GROUND
RCV_TIP
RCV_RING
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
Pinouts for the RJ–48C
Jack on Bracket
Pin 1
Ferrite Clamp
Cables
Connect to the
PCI Board
External Digital
Telephone Cables
