XAIRCRAFT X650 Pro - Manual (Page 9)

电池
Battery
扎带
Fastener
先扣入一边的挂载杆，扣入时注意用力，以免损坏
挂载固定件。
Assemble one side of hanger.
DO NOT OVER-EXERT TO AVOID DAMAGE.
使挂载固定件形变，并将其压入挂载杆。注意用力
避免损坏挂载固定件。
Assemble the other side of hanger as shown
in the figure.
DO NOT OVER-EXERT TO AVOID DAMAGE.

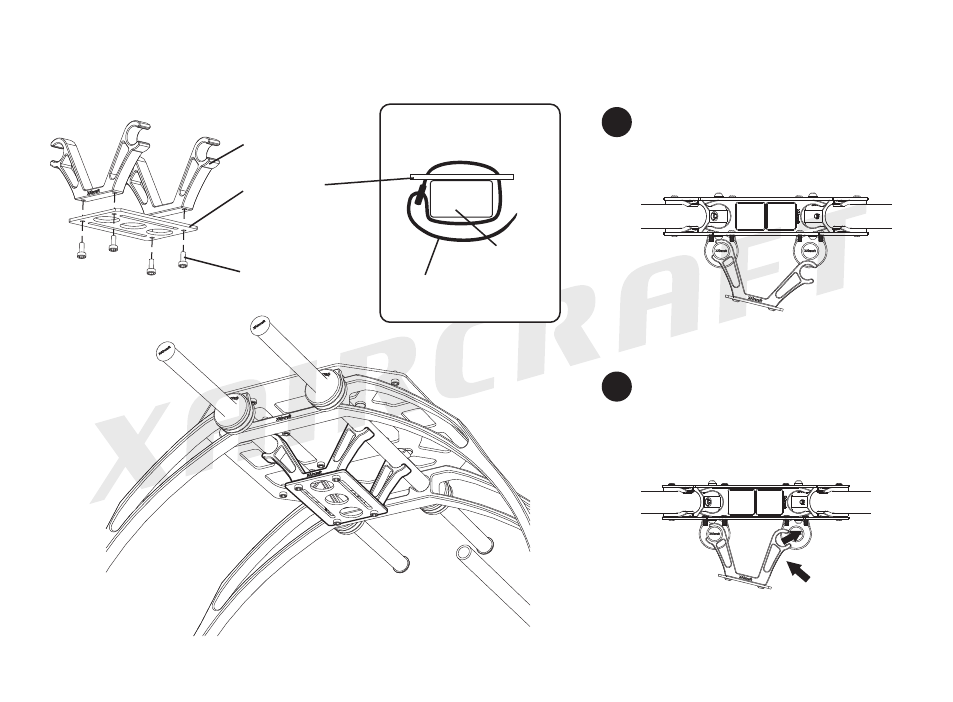

电池挂载架安装 Assembly Battery Mounting
施力点
Force Point
电池安装
Battery Installation
F3 - F3010
挂载固定件
Load Hanger
F1 - F3005C
电池板
Battery Mounting Plate
M - M7001 ×4
M2.5×6 杯头内六角螺丝
M2.5×6 Socket Screw
1
2
7
