-2- -19-
COMPONENT LIST
DIAGRAM 30” PART 36” PART 48” PART PART
NUMBER NUMBER NUMBER NUMBER DESCRIPTION
1 41-0102 (3) 41-0102 (4) 41-0102 (6) Cooking Rack
2 41-0104 41-0104 41-0104 Damper Plates (3)
3 N/A N/A N/A Cabinet Assembly
4 41-0106 41-0106 41-0106 Water Bowl
5 41-0707 41-0107 41-0207 Door Panel
6 41-0108 41-0108 41-0108 Carry Handle (2)
7 41-0109 41-0109 41-0109 Wood Chip Box Lid
8 41-0110 41-0110 41-0110 Smoker Box / Wood Chip Box
9 41-0111 41-0111 41-0111 Wood Chip Box Stand
10 41-0112 41-0112 41-0112 (2) Door Handle with Spring & Washer
11 41-0113 41-0113 41-0113 Name Plate
Push Nuts (2)
12 41-0133 41-0133 41-0133 Temperature Gauge
3/8-16 Washer
3/8-16 Nut
13 41-0115 41-0115 41-0115 Ignitor Knob
14 41-0116 41-0116 41-0116 Control Knob
15 41-0117 41-0117 41-0117 Legs (4)
16 41-0118 41-0118 41-0118 Ignitor Electrode Assembly
17 41-0119 41-0119 41-0119 Brass Burner
18 41-0120 41-0120 41-0120 Gasket
19 41-0121 41-0121 41-0121 Venturi
20 41-0122 41-0122 41-0122 Burner Chamber
21 41-0123 41-0123 41-0123 Access Panel
22 41-0124 41-0124 41-0124 Control Panel Nameplate
23 41-0125 41-0125 41-0125 Control Panel Assembly
24 41-0126 41-0126 41-0126 Rotary Ignitor
25 41-0127 41-0127 41-0127 Hose / Valve /
Regulator Assembly (HVR Assembly)
26 41-0735 41-0135 41-0235 Cabinet Side Rail (2)
Not Shown
41-0128 41-0128 41-0128 Hardware Bag A1
1/4-20 x 3/8” Bolts (3)
1/4-20 Nuts (3)
Not Shown
41-0129 41-0129 41-0129 Hardware Bag A
1/4-20 x 5/8” Bolts (12)
Not Shown
41-0130 41-0130 41-0130 Hardware Bag B
10-24 x 5/8” Bolts (3)
10-24 Nuts (3)
10-24 Lock Washers (3)
Not Shown
41-0131 41-0131 41-0131 Hardware Bag C
5/16-18 x 3/4” Bolts (8)
5/16-18 Nuts (8)
5/16 Lock Washers (8)
Not Shown
41-0132 41-0132 41-0132 Hardware Bag D*
1/4-20 x 3/8” Bolts (2)
*48” Model Contains 2 Hardware Bag D Door Handle Mounting Plate
3/8 Washers (2)
Not Shown
41-0134 41-0134 41-0134 Hardware Bag F
HVR S-Hook
Zip Tie
27 N/A* 41-0103 41-0103 Sausage Hangers (2)
*30” Model Does Not Contain Sausage Hangers

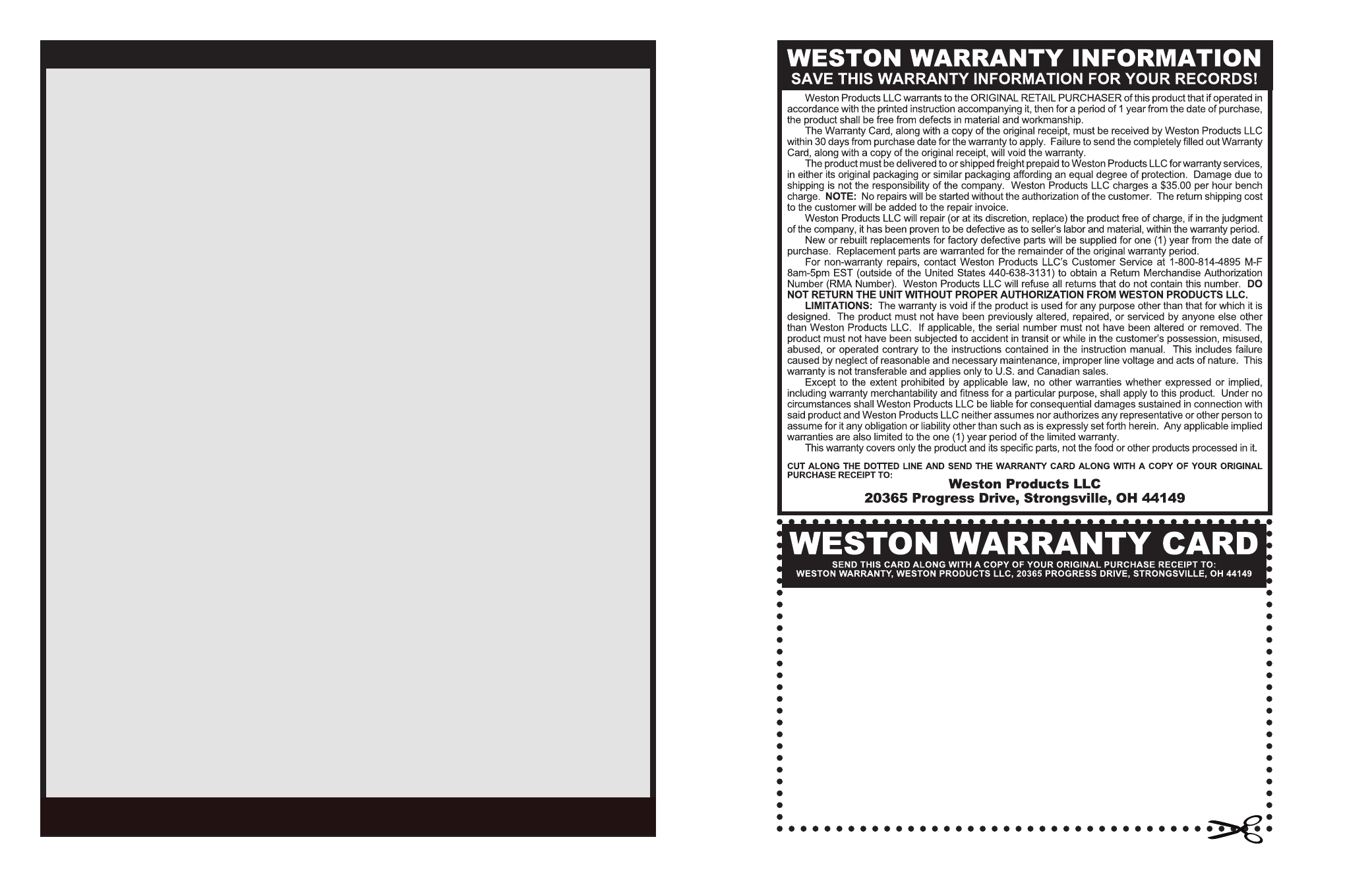

If any components of this unit are broken or the unit does not operate properly, call Weston Products LLC Toll Free at
1-800-814-4895
Monday thru Friday 8:00am-5:00pm EST. Outside the U.S. call 440-638-3131
Customer Name: _________________________________
Address: _______________________________________
City/State/Zip: ___________________________________
Telephone Number: (_________) ____________________
E-Mail Address: _________________________________
Original Date of Purchase: ______/________/________
Product Model #: _________________________________
Serial # (if applicable): ______________________
