5.2 PASSENGER-SIDE SUPERCHARGER BRACKET INSTALLATION
A. Remove any accessories from the front of
the passenger side head. Clean the
cylinder head so that the mounting plate
will sit flat when installed.
B. Attach the support plates and spacer to the
supercharger mounting plate as shown.
Make sure to install the two 1 ¼” bolts
through the side of one of the support
plates and into the end of the other.
C. Install the assembly onto the passenger
side cylinder head. Progressively tighten
both the bolts that secure the assembly to
the engine and those that tie the support
plates together.
D. Verify that all mating surfaces are flush and
all fasteners are tight.

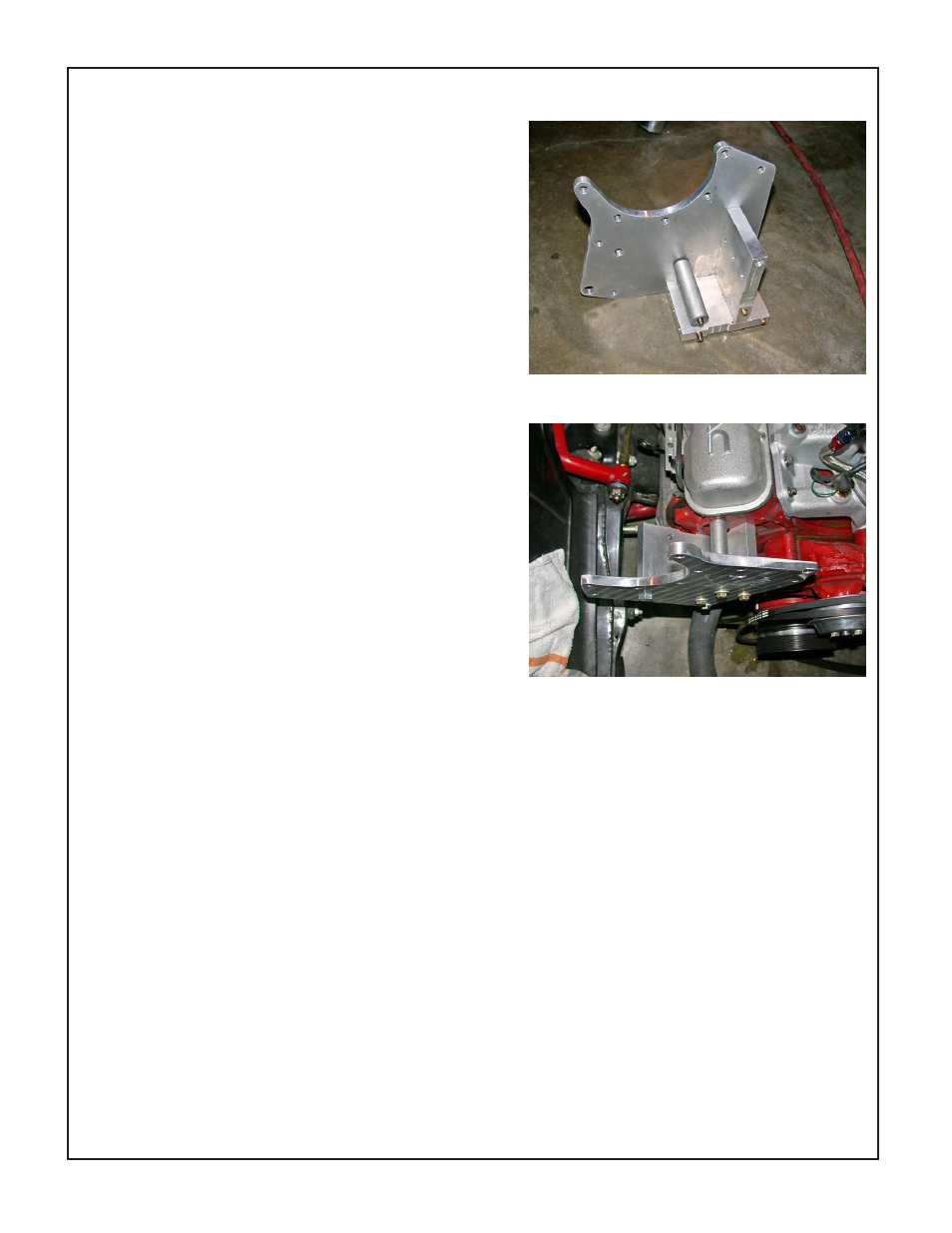

Fig. 5.2-a
Fig. 5.2-b
