F. Wire the fuel pump and relay (see Fig. 11-c ). Use the
supplied tie wraps to run the wire and keep it away
from heat/abrasion. Use the supplied 8mm nut to
connect the main power lead on the relay to the
factory fuse/power box underhood (the factory has
provided two open power lugs under the power box
cover). Tap the yellow relay wire (terminal #87) into
the solid gray wire in the harness running along the
driver side frame member. Use the supplied wire
tap.
11. SUPPLEMENTARY FUEL PUMP AND HARNESS, cont'd.
10
GROUND
3/8” FROM
TANK
1/2” HOSE
TO 3/8”
COMPRESSION
FITTING
#8 HOSE
CLAMP
#8 HOSE CLAMP FUEL PUMP
RELAY
TERMINAL #87
5/16” HOSE TO 3/8”
COMPRESSION FITTING
FACTORY
FUEL FILTER
3/8”
TO RAIL

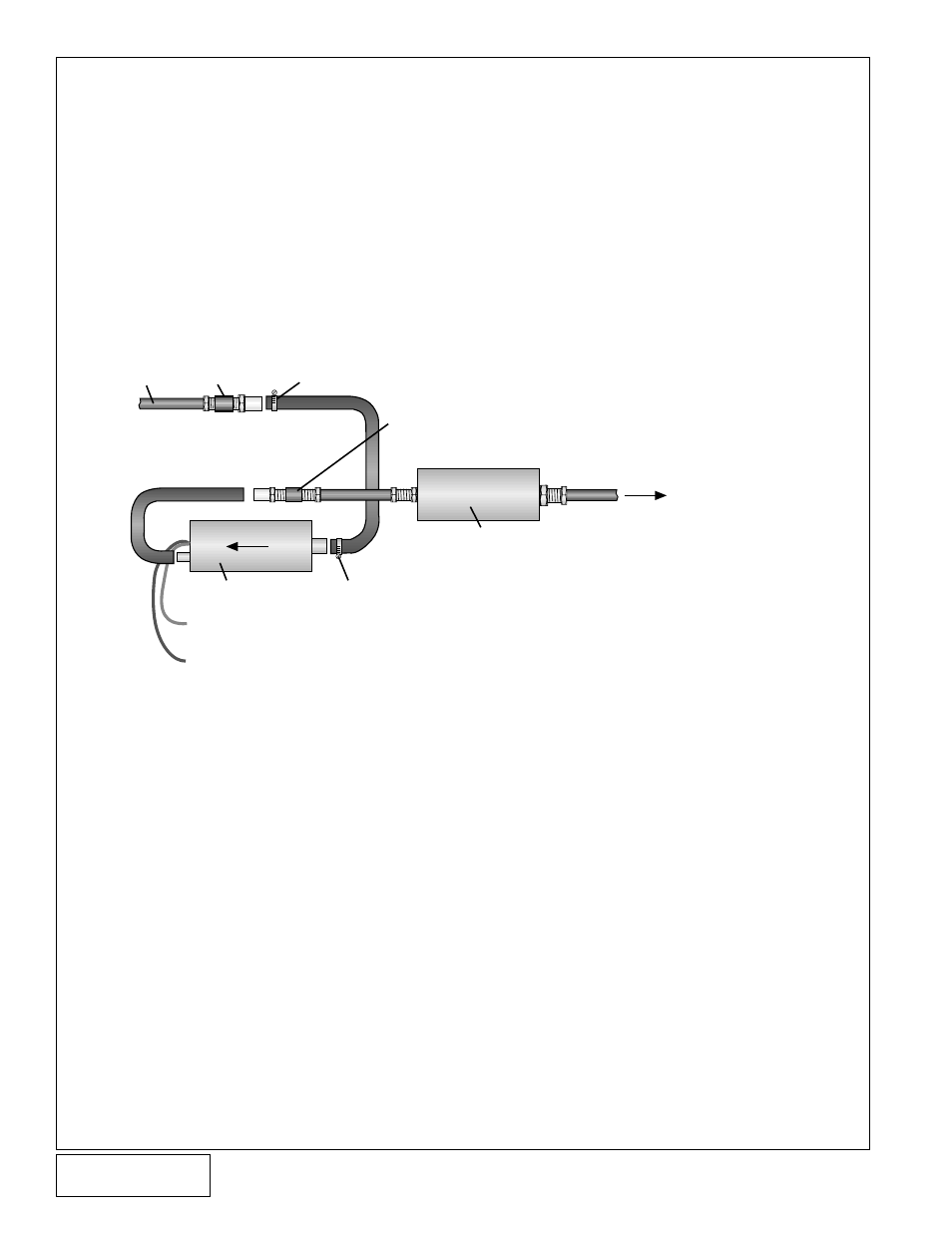

Fig. 11-c
