6. SUPERCHARGER/ACCESSORY DRIVE BELT
A. Separate the spacer and hardware from the factory idler re-
moved in step 1. Using the supplied flanged idler and spacer with
hardware mentioned above, secure the idler to the threaded
boss located on the face of the air conditioner compressor pump
mounting bracket. (See
Fig. 6-a .)

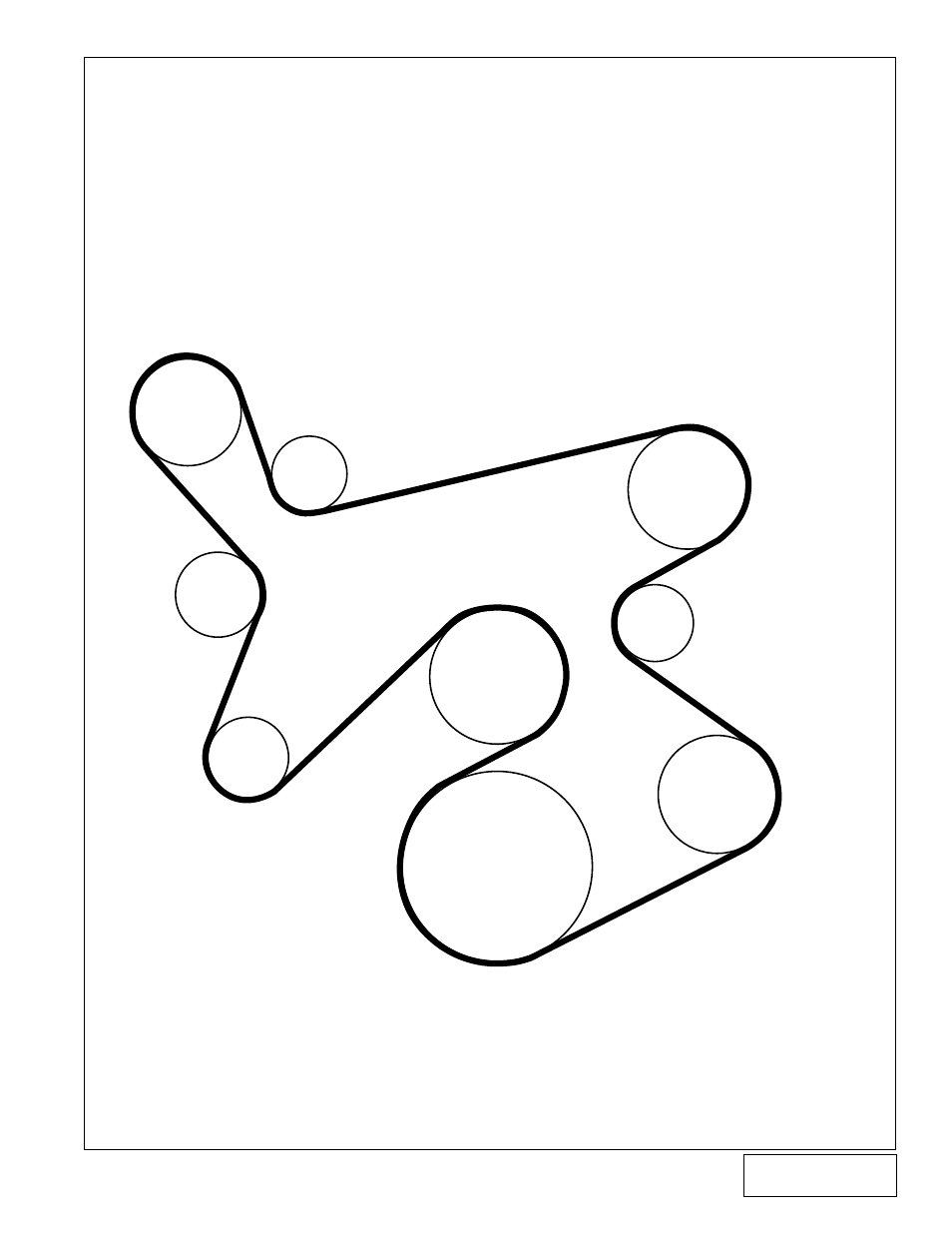

B. Route the supplied belt as shown in the graphic. Belt installation
is easiest when the water pump is the last pulley to be mounted
(the radius on the edge of the water pump pulley allows the edge
of the belt to slide over it).
5
Fig. 6-a
S/C
SUPPLIED
SPRING
TENSIONER
ALT.
WATER
PUMP
CRANK
POWER
STEERING
SUPPLIED
3”
FLANGED
IDLER
AIR
CONDITIONER
(NEW LOCATION FOR
FACTORY IDLER)
MOVED FROM
ALTERNATOR
BRACKET IN STEP 1
SUPPLIED
3” NON-
FLANGED
IDLER
