Vortech 2004-2006 Ford 5.4L 3V F-150 User Manual

Page 15

P/N: 4FN020-010

02MAR07 v2.0 Ford F-150(4FNv2.0)

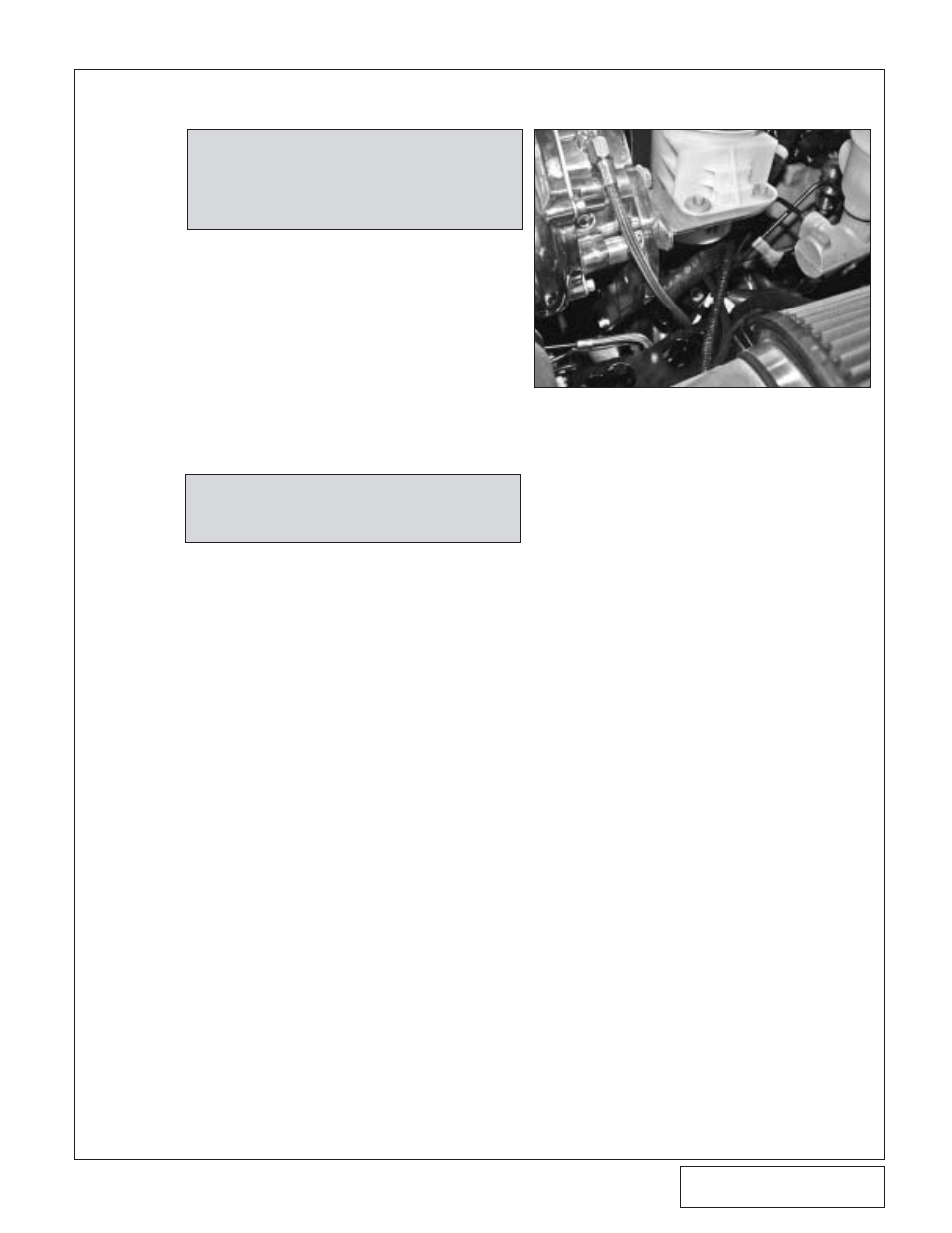

Fig. 6-c

G. Install the supplied power steering reservoir

mounting bracket onto the supercharger
mounting bracket using the two 5/16" x 3/4"
bolts. Attach the reservoir to the bracket
using the original 6mm screws and the sup-
plied nuts. (See Fig. 6-c.)

Remove the cap from the supercharger oil
feed and using engine oil on the threads,
install the 1/8"NPT x -4 x 90° fitting so that it
points down. Attach the free end of the oil
feed line to the fitting and tighten. (If the oil
feed hose does not reach, loosen the 90°
end of the oil feed hose and re-position.)

Attach the capacitor removed from the top
of the engine cover to the 8mm hole in the
supercharger mounting plate using the
remaining power steering reservoir hold-
down screw.

Verify that the accessory drive belt has
clearance to all hoses and wires.

NOTE: DO NOT use any type of sealant on the oil

feed fittings. It may become dislodged and

clog the oil feed orifice, causing premature

failure of the supercharger.

NOTE: If the belt does not have enough slack to

allow installation, start the belt around the

supercharger and have an assistant rotate

the engine (with a ratchet on the harmonic

damper bolt) until the belt is completely

installed.

SUPERCHARGER INSTALLATION, cont’d
