A. Remove the oil pressure sending unit locat-
ed near the oil filter.
B. Install the supplied 1/4"NPT nipple into one
end of the supplied TEE. Install the 1/4"NPT
to #4 fitting onto the other end of the TEE.
C. Install the end of the nipple into the engine
block and tighten all fittings.
D. Re-install the oil pressure sending unit into
the side of the TEE.
E. Connect one end of the supplied oil feed
line to the installed fitting. Temporarily cover
the open end of the oil feed line.
F. Route the line back around the engine
mount to the frame rail and then up the
inner fender. Use tie-wraps to secure the
line and protect it from kinking, abrasion,
and high heat areas. (See Fig. 4-a.)

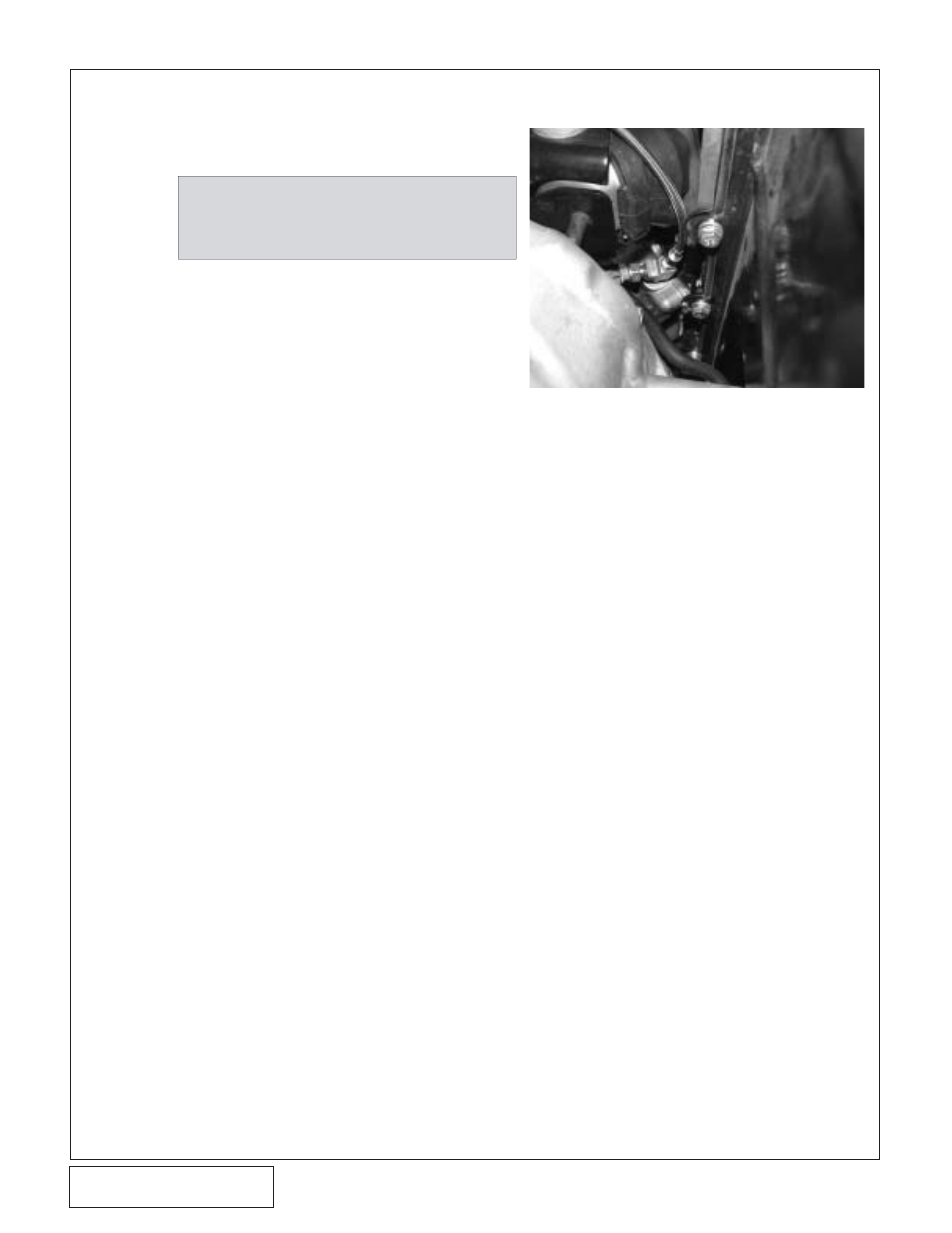

Fig. 4-a
4. OIL FEED LINE INSTALLATION
WARNING: Use engine oil on the pipe threads. Teflon
tape or sealant is not recommended as it
may loosen and cause blockage of the oil
feed orifice resulting in supercharger
failure.
