6. SUPERCHARGER INSTALLATION
A. Remove the cap on the supercharger oil
drain fitting, attach the supplied 1/2" oil
drain hose and secure with a supplied #8
hose clamp.
B. Install the supercharger using five of the
supplied .75" spacers and 3/8" x 1-3/4"
bolts. (See Fig. 6-a.)
C. Attach the oil drain hose to the fitting previ-
ously installed in the valve cover and secure
with a #8 hose clamp.
D. Use a zip-tie to secure the sensor wires to
the oil drain fitting (away from the eventual
accessory drive belt location).
E. Install the supplied smooth idler onto the
supercharger mounting plate in the location
shown in Fig. 6-b using one each of the
supplied (.55" aluminum and .46" steel with
pilot) spacers between the supercharger
plate and the idler and 3/8" x 2.25" bolt.
F. Route the belt per Fig. 6-b except for the
supercharger pulley. Using a 1/2" drive
ratchet or breaker bar, fully compress the
spring tensioner while pulling the belt onto
the supercharger pulley.

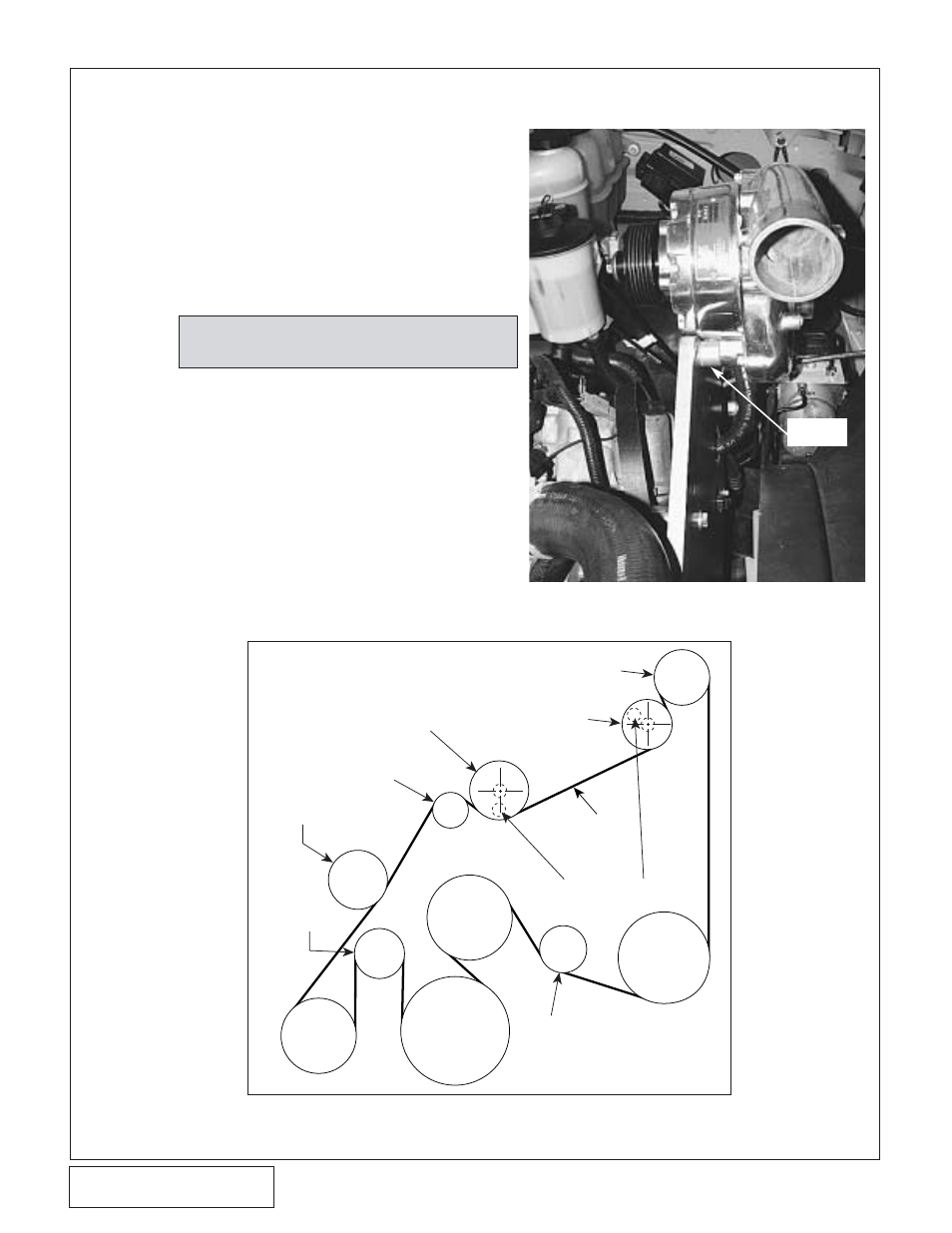

Fig. 6-a
Fig. 6-b
SUPERCHARGER
PULLEY
SUPPLIED
SMOOTH IDLER
RELOCATED FACTORY
SMOOTH IDLER
SUPPLIED
ACCESSORY
BELT
POWER
STEERING
PUMP
PULLEY
CRANK
PULLEY
FACTORY
RIBBED
IDLER
WATER
PUMP
PULLEY
SPRING
TENSIONER
A/C
COMPRESSOR
FACTORY
IDLER
ALTERNATOR
PULLEY
THESE HOLES
ARE NOT USED
NOTE: The installed oil drain hose cannot have
dips, kinks or uphill routing. Trim hose
length if necessary.
SUPPLIED
SPACERS
