Vortech 1994-2000 Ford 3.8 Mustang - Manual (Page 19)

P/N: 4FF020-010
©2003 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
09JUN03 V2.1 (94-00 3.8L Mus.(4FF V2.1))

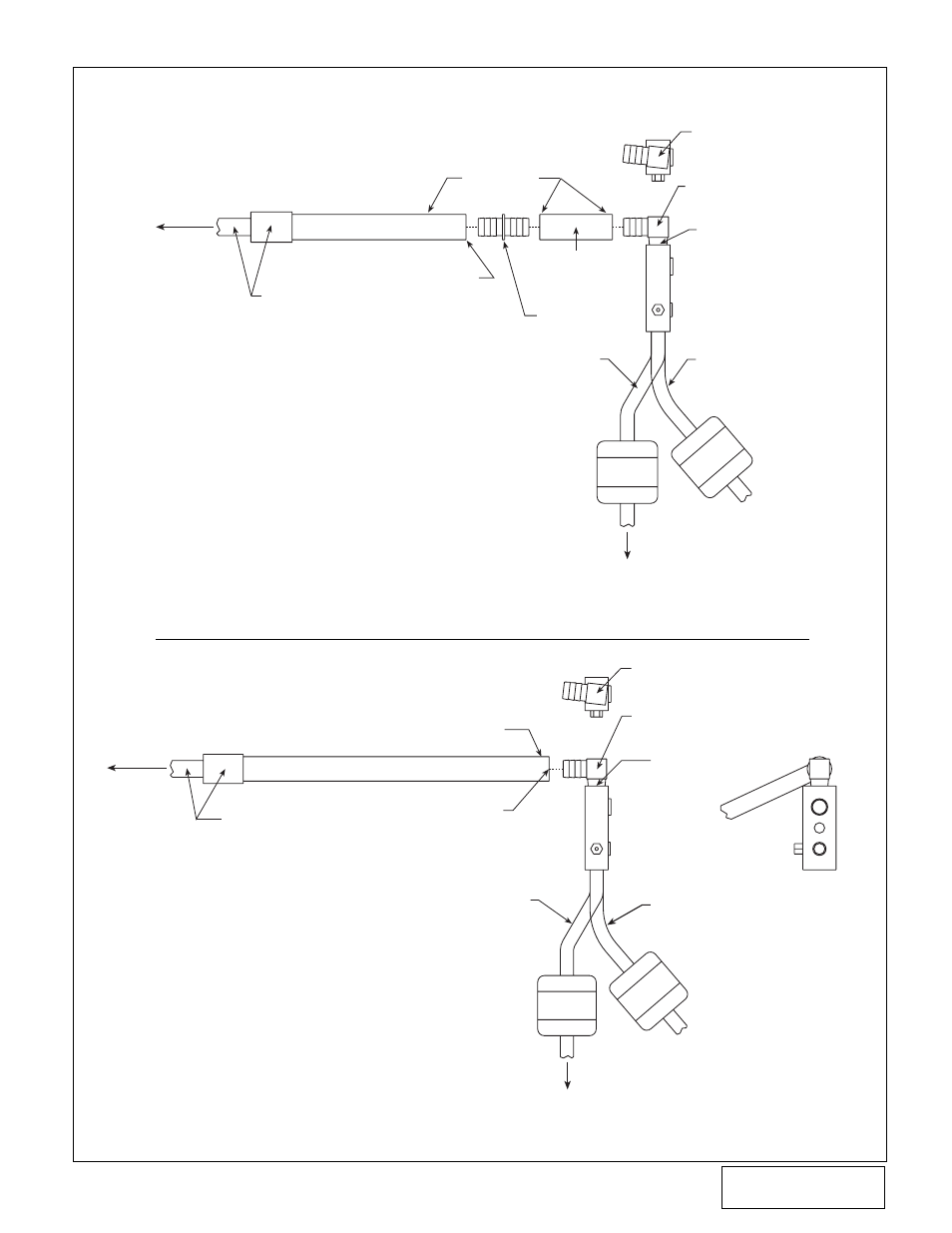

7. A/C LINE MODIFICATIONS, cont'd.
1996-98 MODELS
11
Fig. 7-c
Fig. 7-d
CUT OFF STEEL
TUBE HERE-THEN
DRILL AND TAP
3/8” NPT
FITTING CLOCKING (TOP VIEW)
FACTORY HOSE CUT AT END
OF ORIGINAL FERRULE
ATTACH #10 HOSE CLAMP
5/8" RUBBER A/C HOSE
TO FIREWALL
MOUNTED
CANISTER
FACTORY TUBE/
FERRULE
STOCK POSITION
3/8" NPT X 5/8" ELBOW
SIDE VIEW
(PASSENGER SIDE)
MODIFIED
POSITION
TO HEAT EXCHANGER (FRONT OF RADIATOR)
FITTING CLOCKING
(TOP VIEW)
CUT OFF STEEL
TUBE HERE-THEN
DRILL AND TAP
3/8” NPT
3/8" NPT X 5/8"
ELBOW
SIDE VIEW
(PASSENGER SIDE)
STOCK
POSITION
TO HEAT EXCHANGER
(FRONT OF RADIATOR)
MODIFIED (BENT)
POSITION
5/8" HOSE BARB
UNION
ATTACH #10
HOSE CLAMPS
FACTORY TUBE/
FERRULE
FACTORY HOSE
CUT AT END OF
ORIGINAL FERRULE
FACTORY 5/8" RUBBER A/C HOSE
5/8" X 3.75
LONG A/C HOSE
(SUPPLIED)
TO FIREWALL
MOUNTED
CANISTER
1994-1995
& 1999-2000 MODELS
