7. A/C LINE MODIFICATIONS, cont'd.

10

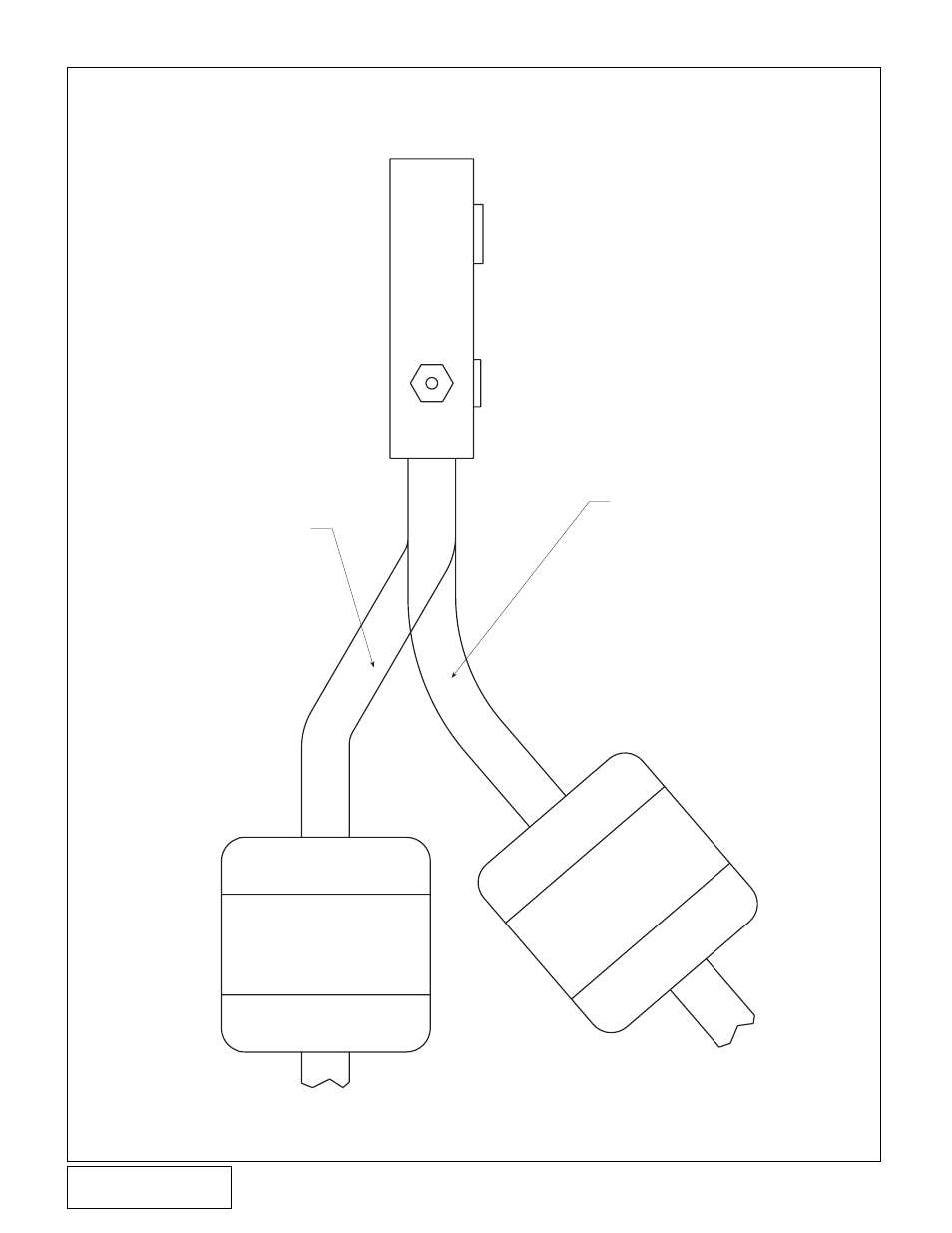

Fig. 7-b

MODIFIED (BENT)
POSITION

SIDE VIEW (PASSENGER’S SIDE)

STOCK POSITION

FULL SCALE BEND TEMPLATE
