CoNtRolS & CoNNeCtioNS
The subwoofer is set up, configured and adjusted by the controls, inputs and connections located on the back and front panels of the
subwoofer and the remote. Figures 1, 2 and 3 show the location of each of these important operational interfaces. Brief descriptions of each
interface are below.
Cabinet Front
In order to access the controls and connections on the front of the cabinet, you need to remove the grille. You don’t need to remove the grille
right now. For instructions on how to remove and re-install the grille, see the Remove Subwoofer Grille and Install Subwoofer Grille sections.

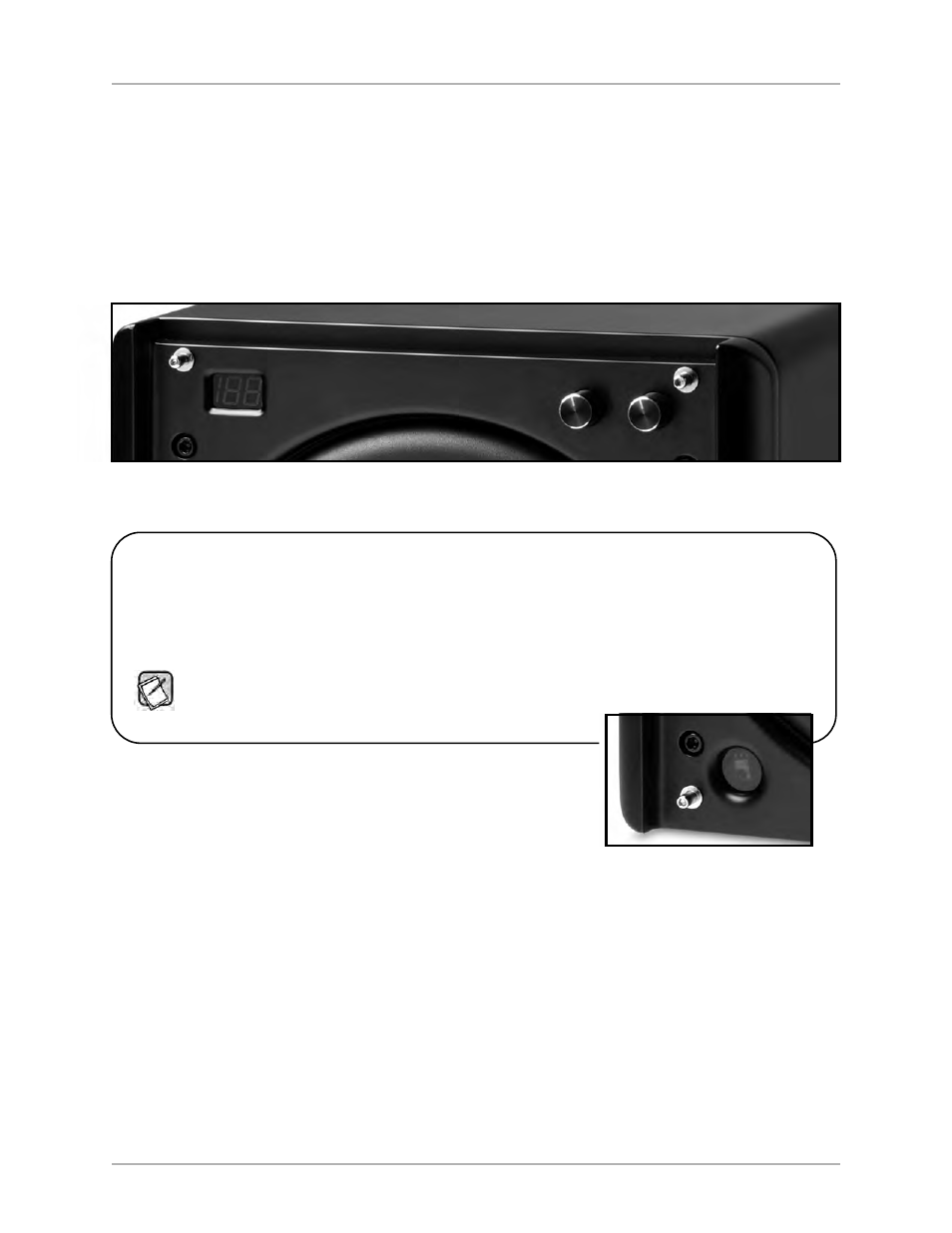

Figure 1: Subwoofer Cabinet Front with Grille Removed
RemoVe SubWooFeR GRille
To remove the grille:
1. Place your thumbs on the top outside corners of the grille.
2. Use your thumbs to gently apply downward pressure to the top outer grille edges and pull the top grille edge towards you.
3. After the top of the grille is free of the top cabinet face, carefully rock the bottom grille cups of the grille off of the steel grille pegs.
iNStall SubWooFeR GRille
To reinstall the grille:
1. Carefully insert the bottom grille cups of the grille onto the lower steel grille pins.
2. Place your thumbs on the top outside corners of the grille.
3. Use your thumbs to gently push the top grille onto the cabinet face.
4. Push the grille to the cabinet over each grille pin.
[ 6 ]
PART ONE — OPERATE
Digital Servo User’s Manual
A. LED Display: Shows volume level,
crossover frequency and Auto-EQ
status messages. LED display is
visible through the front grille.
B. VOLUME: Adjust subwoofer output
volume. The volume level shows
on the LED.
C. CROSSOVER: Adjust low pass
crossover frequency. The crossover
frequency shows on the LED.
D. Remote Control Sensor: Receives
remote control commands. This sensor
is on bottom front of sub.
The volume and crossover frequency return to their saved values after a power
cycle unless these settings were saved using the software’s TV screen. The
volume and crossover knobs don’t change settings during Self-EQ, Auto-EQ
or Manual-EQ.
