30 - Digital Drive Series User’s Manual

20. Continue this process until the “SYSTEM RESPONSE” graph shows a +/– 3 dB response across the

bass frequencies (that is, up to about 120Hz.). Note that this does not necessarily mean a “ruler flat”
response; +/- 3 dB is typical for an optimized response curve.

NOTE: The following steps use the parametric equalizer to achieve room equalization. If you do not wish to use

the parametric eQ feature, skip to step 24.

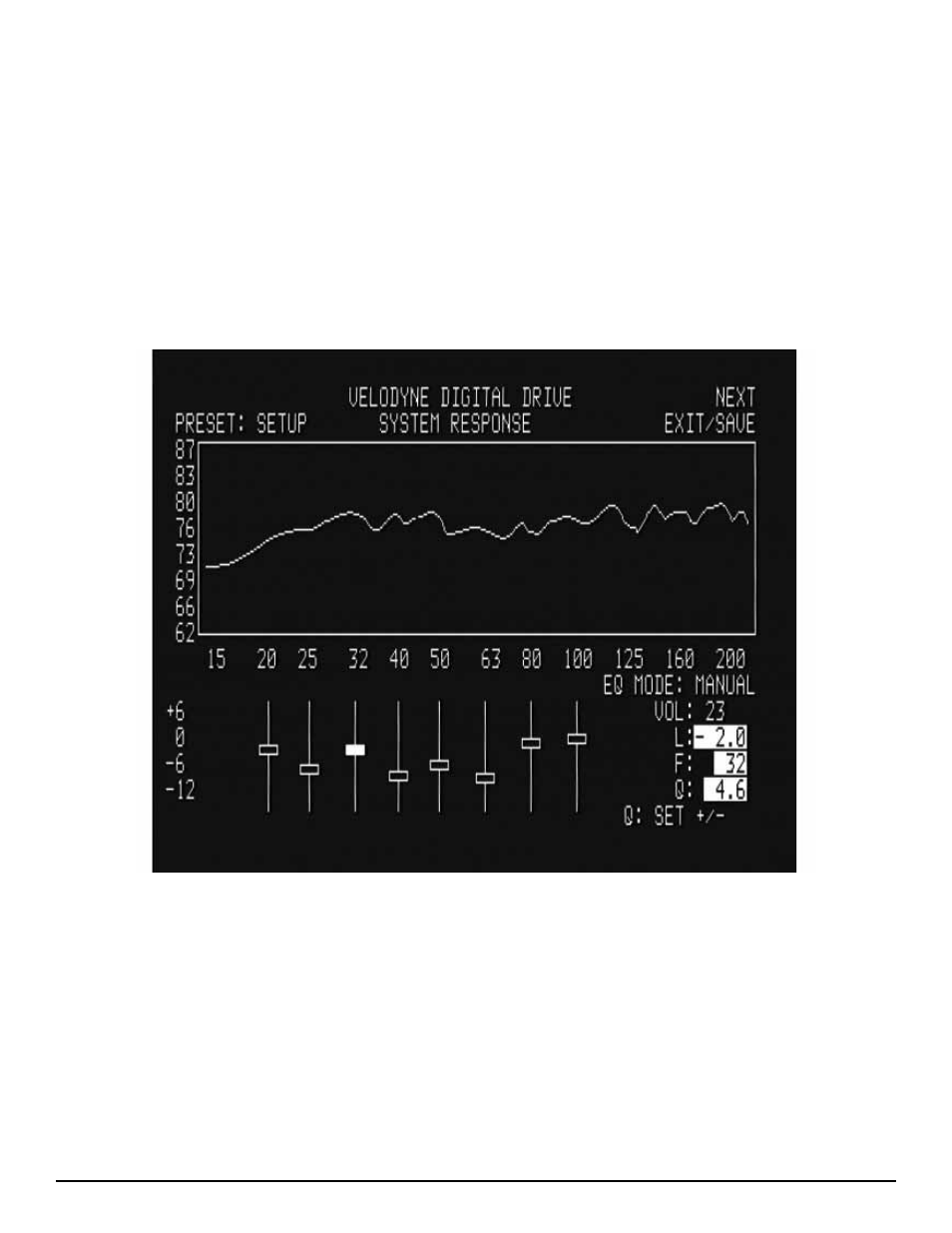

21. To fine tune the response even further, use the parametric EQ feature. Position the cursor over the EQ

and press the SelecT button. The values for that particular eQ appear on the right hand side of the
screen. The following screen is shown:
