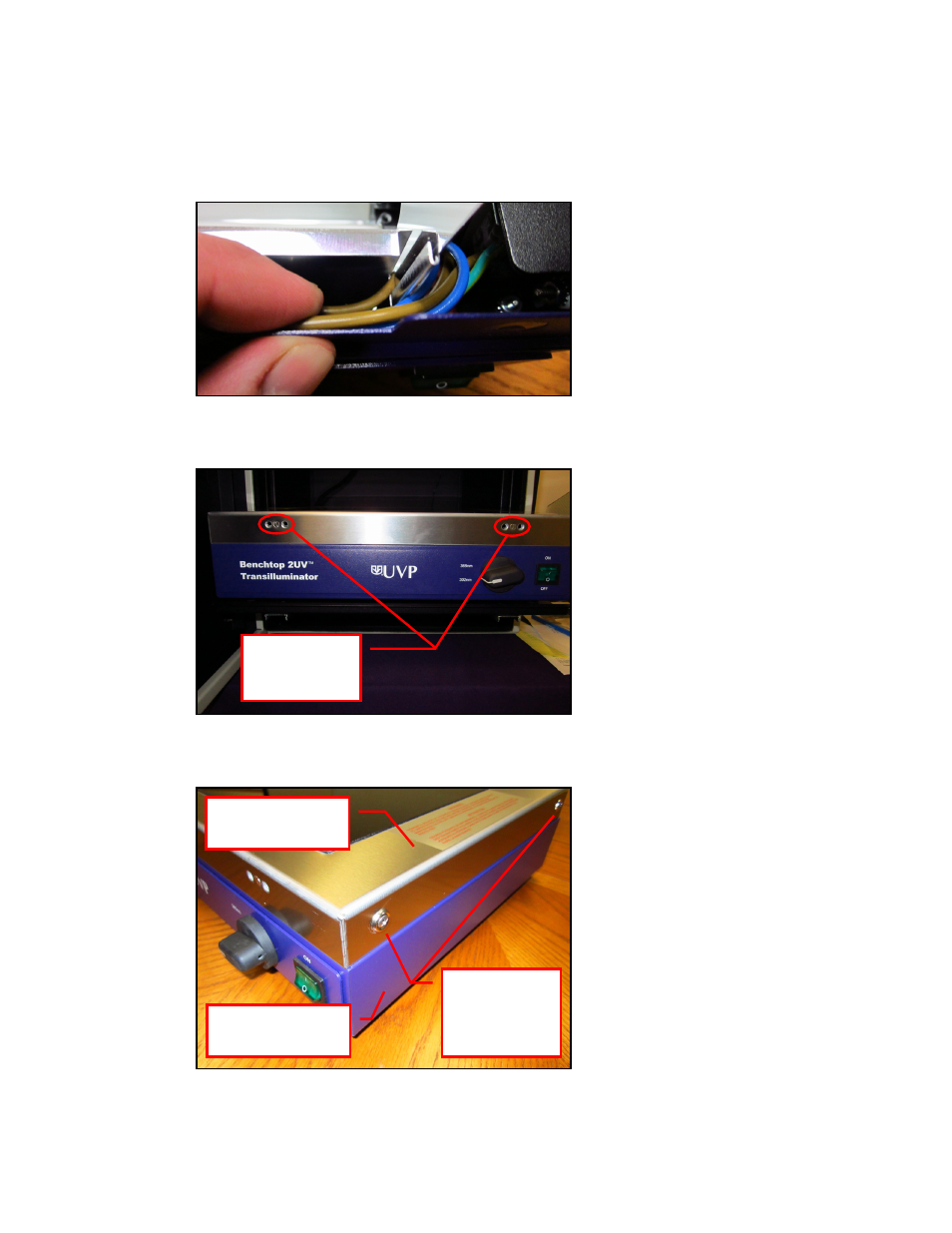

As the edges of the side reflector panels are sharp, ensure that all wiring is moved out of the
way during installation of the side reflector panels to avoid cutting into the sheathing of the
wiring. Slide the side reflector panels into place until the top edges of the reflector panels are
flush with the top edges of the main reflector panel.
5. Replace the transilluminator filter frame on top of the body of the transilluminator with the two
sets of two small holes on the filter frame facing toward the front of the unit.
6. Reinstall the four Phillips-head screws and washers on the sides of the transilluminator to
secure the transilluminator filter frame to the transilluminator body.
Two of Four
Phillips-Head
Screws and
Washers
Transilluminator
Filter Frame
Transilluminator
Body
Two Sets of
Two Small
Holes
