Appendix E : INDEX
Subject Section
Alarm
(Failsafe) 3.2
Auto-Shut Off 3.2
Backlight 4
Back View 2.2
Battery Charger 1 & 3.3
Battery Indicator 2.1
Calibration Appendix B
Charger Socket 2.4
Charging 3.3
Clock 4.5
CO 4.1.1 & Appendix A
CO
2
4.1.1 & Appendix A
Data (Downloading) 9
Data (Printing) 7
Data (Reviewing) 6
Data (Saving) 5
Dimensions Appendix A
Display 2.1 & Appendix A
Efficiency (Nett & Gross) 4.1.2
Excess Air 4.1.2
Exhaust Port 2.3
Filters Appendix B
Front View 2.1
Fuel Selection 3.2
Fuels 3.2 & Appendix B
Func/Backlight Key 2.1 & 4
Guarantee Appendix C
Infrared Printer 1, 7 & Appendix B
Infrared Window 2.3 & 7
Inlet Ports 2.2 ; 2.4 ; 3.1 ; 4.1 ; 4.3 & 4.4
In-Line Filter 1 ; 3.1 ; 4.1 & Appendix B
Leak Detection 4.4
Low Flow 3.1
Mini In-Line Filter 1 ; 3.1 ; 4.4 & Appendix B
O
2
4.1.2 ; 4.1.3 & Appendix A
Off 3.2
On 3.1
5
2. Instrument Overview

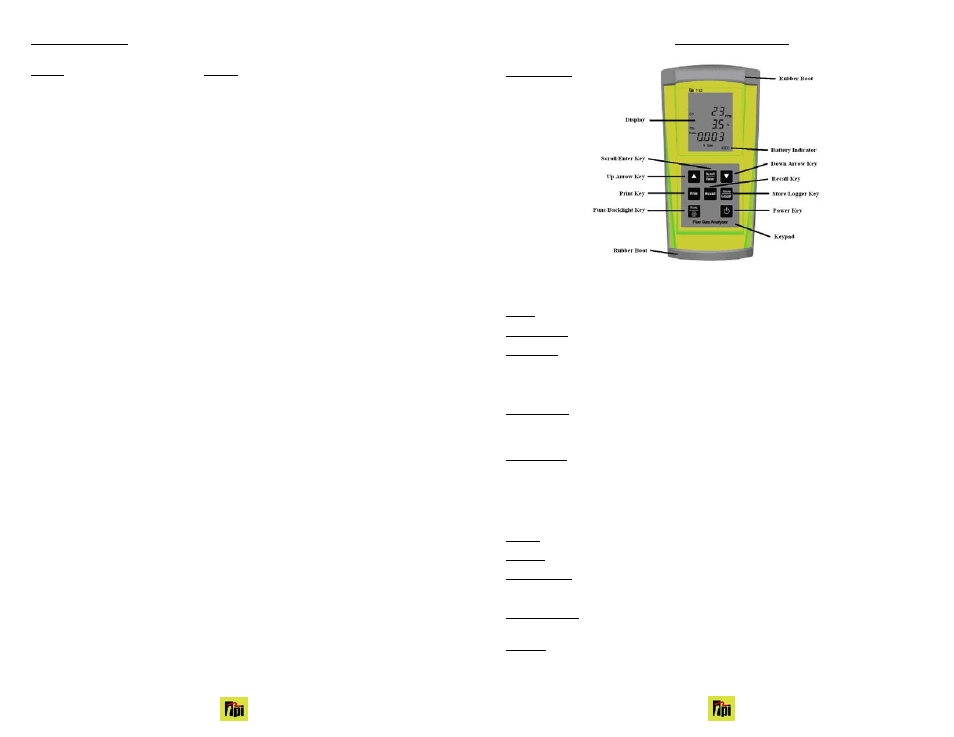

2.1 Front View
Rubber Boot Protects the instrument from accidental damage
Display Large 3 Parameter Backlit Display
Battery Indicator Showing battery life
Up Arrow Key Scrolls through selectable fuels (see 3.1 )
Switches between Gross and Nett Efficiency (see 4.1.2)
Switches between ºC and ºF (see 4.2.1)
Moves up through the Stored Data Addresses (see 5, 6 & 7)
Down Arrow Key Zeroes pressure reading (see 4.3.1)
Moves down through the Stored Data Addresses (see 5, 6 & 7)
Decreases data logging time intervals (see 8)
Scroll/Enter Key Scrolls through Gas Analysis Function Screens (see 4.1)
Turns temperature differential calculation ON/OFF (see 4.2.1)
Turns ch2 temperature ON/OFF (see 4.3.1)
Allows you to change the Date and Time (see 4.5)
Allows you to choose a Stored Data Address (see 5, 6, 7, & 8)
Print Key Sends stored or real time data to a separate infrared printer (see 7)
Recall Key Allows you to view stored data on the display (see 6)
Store/Logger Key Stores readings to memory (see 8)
Starts and Stops data logging (see 8)
Func/Backlight Key Moves you through the 3 Functions (see 4)
Turns Backlight ON and OFF (see 4)
Power Key Turns the instrument ON and OFF (see 3.1 & 3.2)
