Test Products International 715 User Manual
Page 17
8

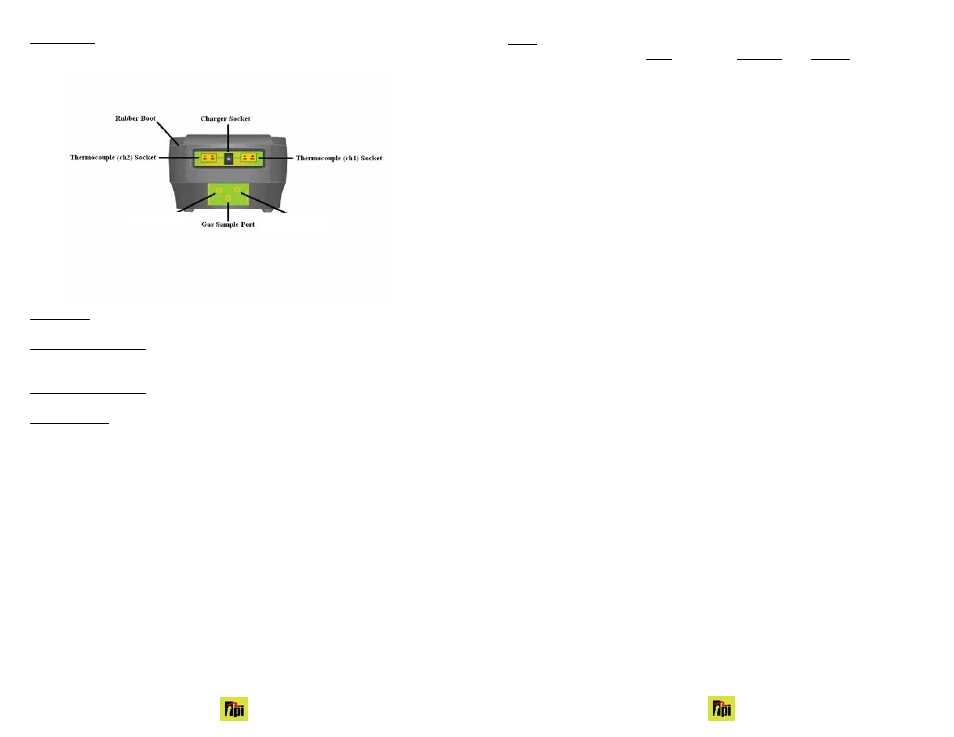

2.4 Top View
Power Socket
Connection for 12V Car Adapter (see 3.3)
Thermocouple (ch1) Socket
Connection for thermocouple plug on probe (see 4.1)
Connection for any ‘K’ type thermocouple probe (see 4.2)
Thermocouple (ch2) Socket Connection for any ‘K’ type thermocouple probe (see 4.2)
Gas Sampling Port
Connection for Gas Sampling Probe (see 4.1)
Connection for In-Line Filter for Gas Leak Detection (see 4.4)
17
Gases
Range Resolution Accuracy
Oxygen 0-25%
0.1%
+/-
0.3%
Carbon Monoxide
0-10 %
+/-0.001 %
<20 ppm : +/- 3 ppm
>100 ppm : +/- 5 %
Carbon Dioxide (calculated)
0-25%
0.1%
+/- 0.3%
CO/CO
2
Ratio (calculated)
0-0.999
0.001
Combustion Efficiency
0-100%
0.1%
NOx
0-5,000 ppm
1 ppm
calculated
Nitrogen Oxide
0-5,000 ppm
1 ppm
+/- 3 ppm
