Configuring the InfoStation II for Dual-Channel
CAUTION:
Remove ALL power from the InfoStation II before removing the I/O module.
The I/O module contains NO USER SERVICEABLE PARTS inside the unit.
Refer ALL servicing to qualified service personnel!
NOTE:
A #2 Phillips screwdriver will be required for this procedure.
1.
Unplug the InfoStation II and verify that all cables have been disconnected.
2.
Place the InfoStation II on a soft clean surface to protect finish of the chassis.
3.
Loosen and remove the two (2) #6-32 Phillips Flat Hd. screws securing the I/O
blank plate (refer to Figure 7 for correct location) to the InfoStation II chassis (Figure
6).
4.
Remove the I/O blank plate.
5.
Remove access panel (Figure 4).
6.
Remove the center jumper block so that the second I/O repeater module and ter-
minator can be installed. Correct dual-channel backplane configuration is shown
in Figure 8.

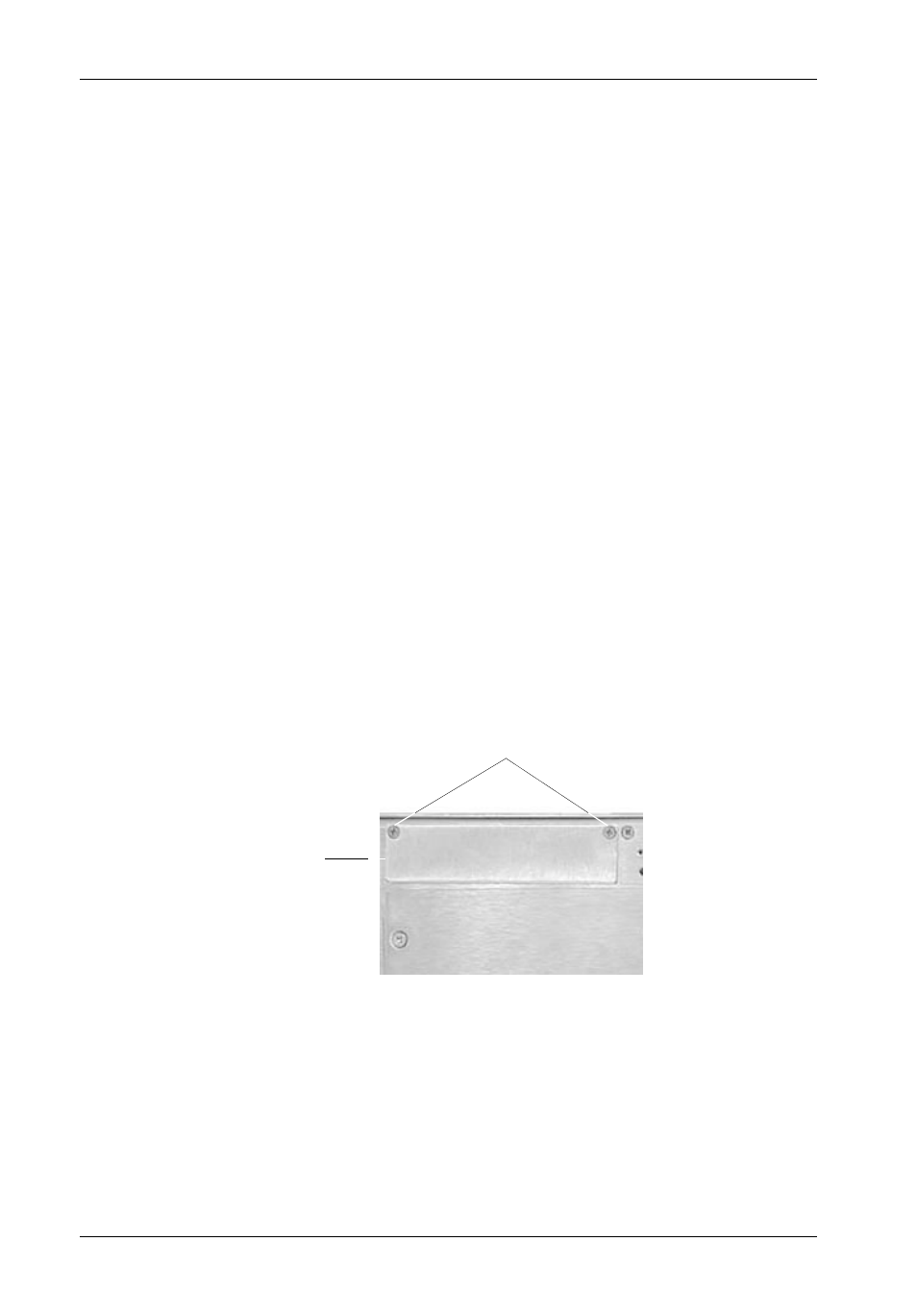

Figure 6: Removing the I/O Blank Plate
I/O Blank
Plate
#6-32 Phillips
Flat Hd. Screw
(2 Total)
IFS14_11
