InfoStation II Ultra160 I/O Kits

StorCase Technology, Inc.

D89-0000-0176 Rev.A00

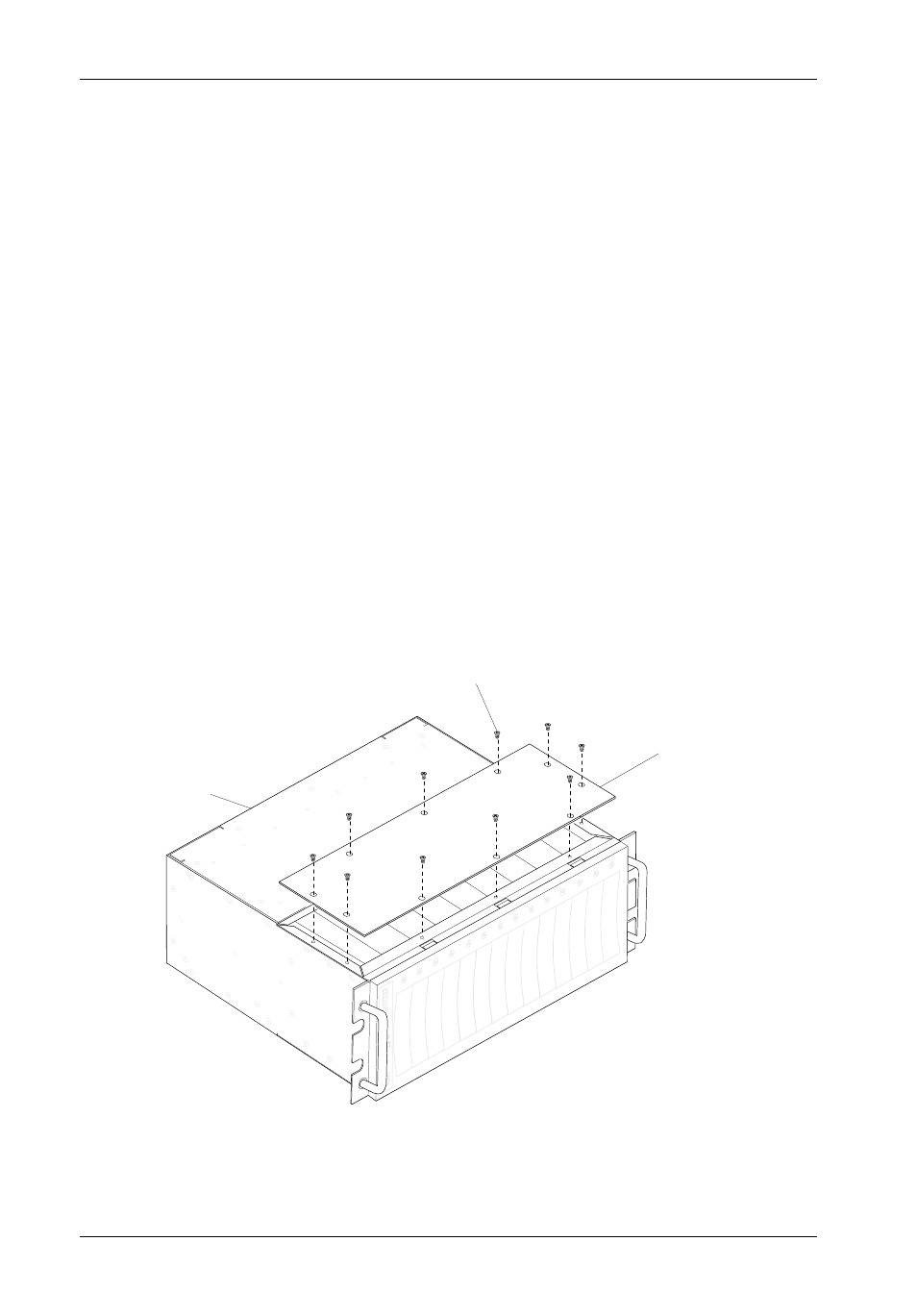

Figure 4: Removing the Access Panel

Removing the InfoStation II Access Panel

CAUTION:

Remove ALL power from the InfoStation II before removing the access

panel(s). The InfoStation II contains NO USER SERVICEABLE PARTS

inside the unit. Warranty is VOID if any of the modules inside the

InfoStation II are opened. Refer ALL servicing to qualified service

personnel!

NOTE:

A #2 Phillips screwdriver will be required for this procedure.

1.

Unplug the InfoStation II and verify that ALL cables have been disconnected.

2.

Place the InfoStation II on a soft clean surface to protect finish of the chassis.

3.

Remove the ten (10) #6-32 Phillips Flat Head screws securing the access panel to

the InfoStation II chassis (Figure 4).

NOTE:

Remove the access panel located on the RIGHT SIDE (Top) of the chassis

only.

4.

Remove the access panel by carefully lifting the panel(s) off the chassis (Figure 8).

5.

To reinstall panel, simply reverse the above mentioned steps.

Access Panel

(Right Side)

#6-32 Phillips

Head Screw

(10 total)

InfoStation II

Chassis

IFS14_19
