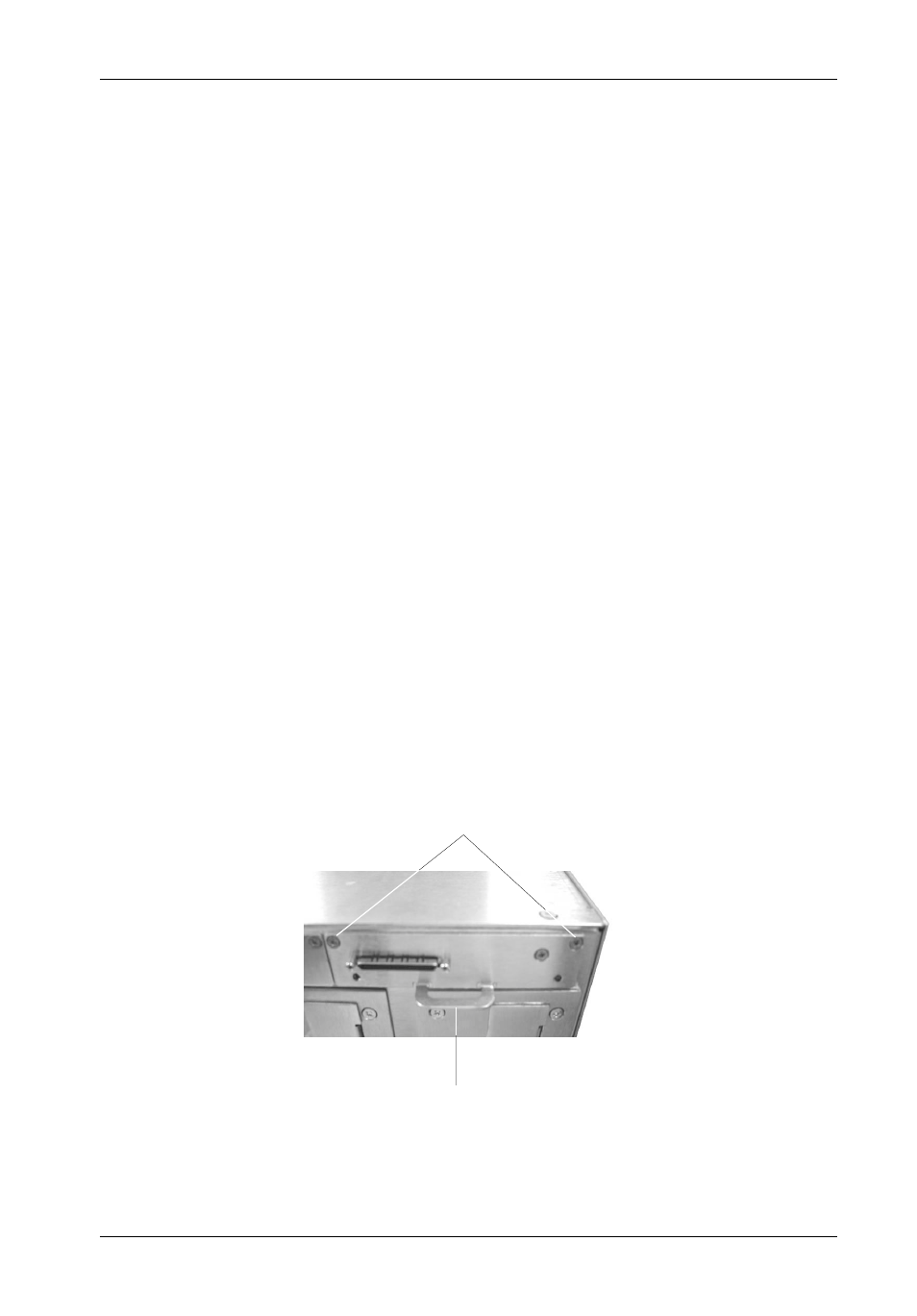

Figure 3: Removing and Installing the I/O Module
Removing and Installing the I/O Module
(Procedure and information below applies to both the I/O Module and the optional I/O Repeater
Module)
CAUTION:
Remove ALL power from the InfoStation II before removing the I/O module.
The I/O module contains NO USER SERVICEABLE PARTS inside the unit.
Refer ALL servicing to qualified service personnel!
NOTES:
The I/O module is NOT hot-swappable! Remove ALL power to chassis
before removing and installing the I/O module.
A #2 Phillips screwdriver will be required for this procedure.
1.
Unplug the InfoStation II and verify that ALL cables have been disconnected.
2.
Place the InfoStation II on a soft clean surface to protect finish of the chassis.
3.
Loosen and remove the two (2) #6-32 Phillips Flat Hd. screws securing the I/O
module to the InfoStation II chassis (Figure 3).
4.
Remove the I/O module by grasping handle and pulling out from chassis.
5.
To reinstall I/O module, simply reverse above mentioned steps.
NOTE:
Blank plate (provided) must be installed if module slot is left empty. Instal-
lation of the blank plate is necessary for proper cooling inside chassis.
#6-32 Phillips
Flat Hd. Screw
(2 Total)
Module
Handle
IFS14_10
