D89-0000-0106 Rev. F01 StorCase Technology, Inc.
InfoMon Web-based Monitoring Utility 33

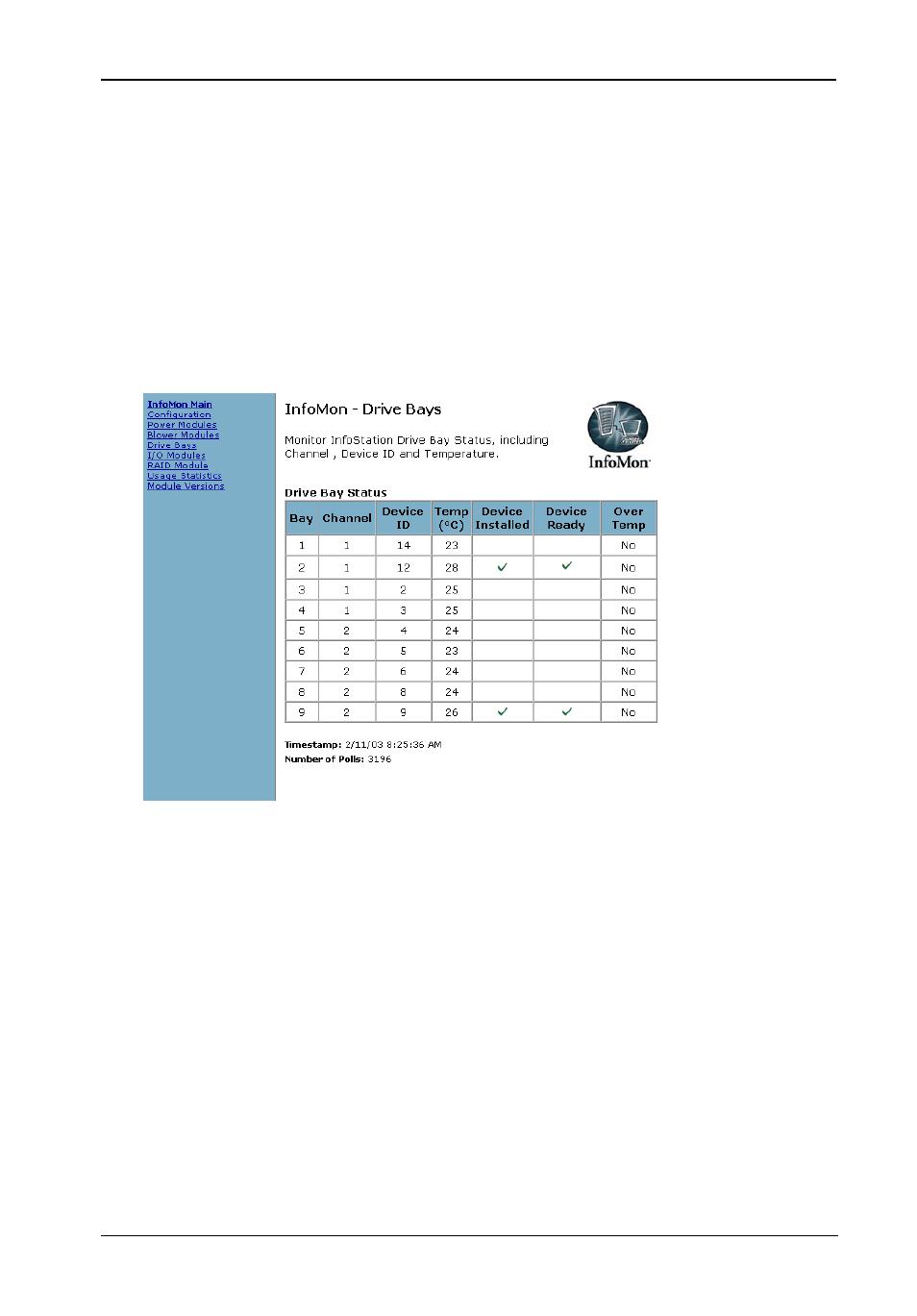

Figure 22: Drive Bay Status Screen
(9-Bay Status Screen Shown)
Drive Bay Status Screen
NOTE: When remote monitoring via the internet, always hit "Refresh" on the browser
to make sure you are viewing the most up-to-date information.
The Drive Bay Status Screen (Figure 22) allows the user to monitor the status of each
InfoStation drive bay, such as channel (or loop), device ID, and temperature conditions.
