4 Introduction
StorCase Technology, Inc. InfoStation 14-Bay User's Guide - Rev. C01
• Drive Carrier LED(s) - Provides the following information:
Drive Ready - Indicates that the drive is properly installed and ready for
access.
Drive Activity - Indicates that the drive is being accessed.
Drive Fault - Indicates a drive failure.
• Key Lock(s) - Assure proper seating of the drive carrier within the chassis and
prevent unauthorized removal or installation of the carrier.
NOTE: The key lock is only to prevent unauthorized removal or installation of the
drive carrier. Locking the key lock is not requried for drive carrier oper-
ation.
• Insert/Remove Push Button(s) - Allow the drive carrier(s) to be removed and
installed at anytime (Refer to the InfoStation Installation Guide for further infor-
mation).
• Chassis Handle(s) - Provide a sturdy grip for the installation and removal of the
rack-mount chassis.

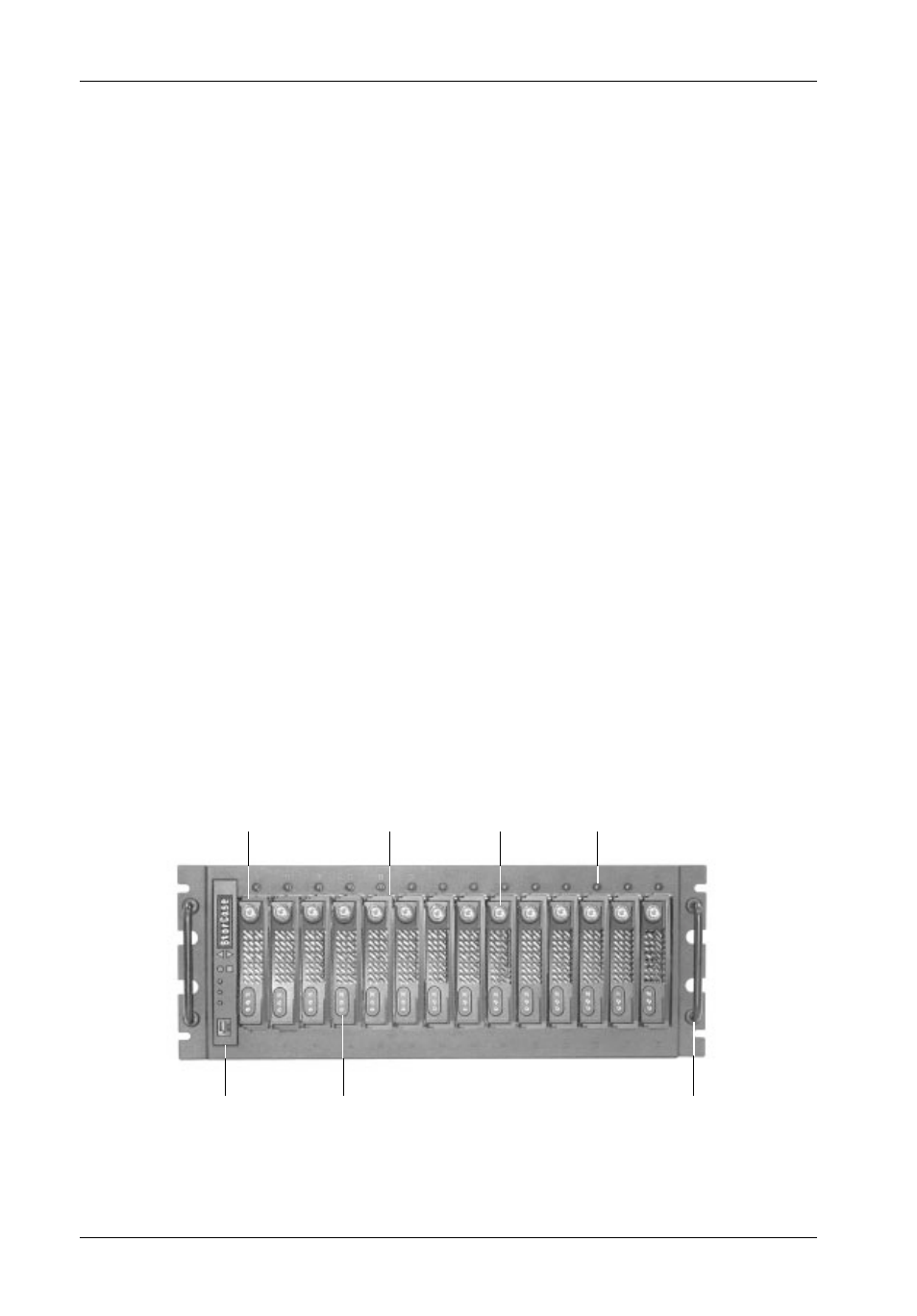

Figure 2: InfoStation Front Panel
Chassis
Handle
User Interface
Module
SCA Drive
Carrier
Drive Carrier
Handle
Key
Lock
Drive Carrier
LEDs
Insert/Remove
Push Button
IFS14_2
