2 Installation
StorCase Technology, Inc.InfoStation 12-Bay RAID Installation Guide - B00

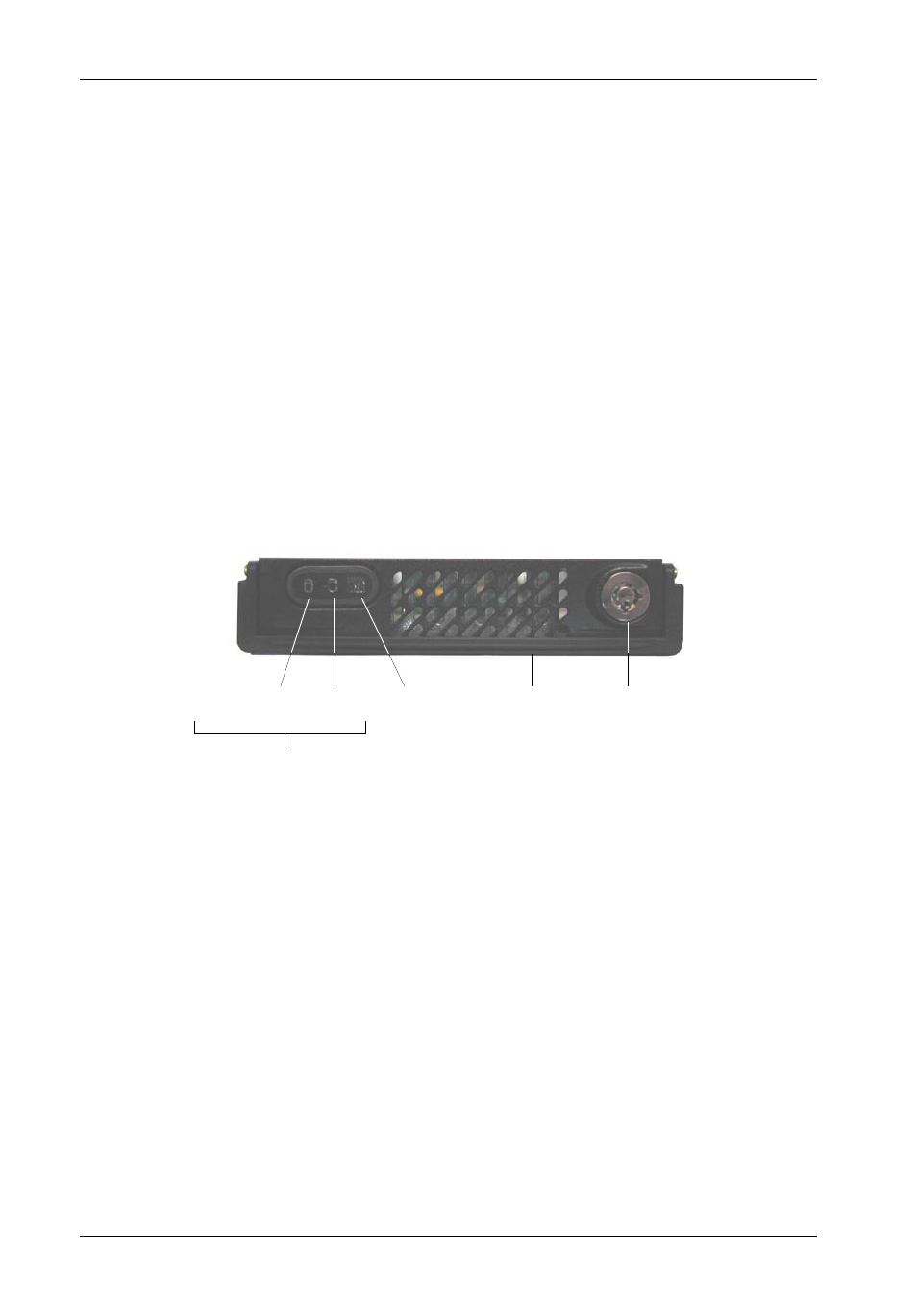

Figure 1: Drive Carrier
Inserting a Drive Carrier (without a Drive Installed)
Lift carrier handle while inserting drive carrier into chassis. Push down on carrier handle once
carrier is pushed all the way in. The carrier should latch into place if inserted correctly.
Lock the key lock to prevent unauthorized removal or installation of drive carrier.
Drive Carrier Interface Panel
Each InfoStation drive carrier provides a User interface for individual carrier operation (Figure
1).
Drive Ready
(or Drive Fault)
Drive
Activity
Serial ATA
Logo
Key
Lock
Carrier
handle
LEDs
