18 Fibre Channel Configurations
StorCase Technology, Inc. InfoStation 14-Bay FC User's Guide - Rev. B00
TYPICAL FIBRE CHANNEL CONFIGURATIONS
NOTES: The installation, configuration, and use of the StorCase InfoStation chassis
requires a certain level of expertise and experience on the part of the user/
integrator. Since there are many configuration options and variables (ie. host
platforms, applications, etc), only general/typical configuration guidelines will
be discussed in this User's Guide.
For redundant loop configurations, make sure your O/S supports disk duplexing/
mirroring. Refer to O/S manufacturer's documentation for further information.
An additional PBP Module is available as an upgrade. Contact StorCase for
further ordering information.

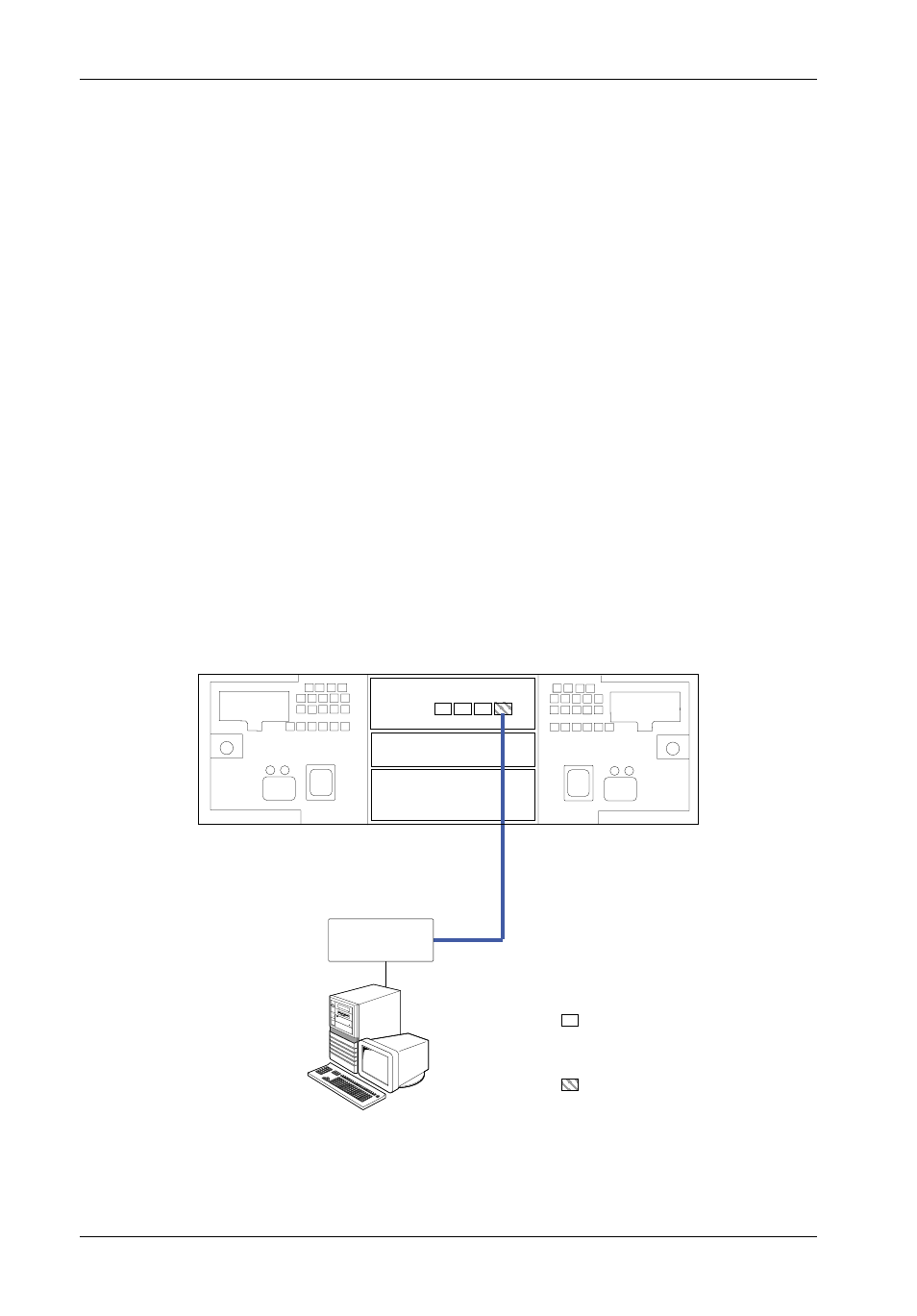

Figure 12: Typical Single 14-Device Loop Configuration (Single Chassis)
FC-AL #1
PC
FC HBA
Host 0
NOTES: Auto Loopback is enabled when there are no SFP Modules installed in the open
Host ports.
SFP modules are optional. Contact StorCase for further ordering information.
Up to 9 InfoStations or 126 FC Drives maximum.
= SFP Module
Installed
= No SFP
Module Installed
(Auto Loopback)
