16 Fibre Channel Configurations
StorCase Technology, Inc. InfoStation 14-Bay FC User's Guide - Rev. B00
3. To remove SFP Module from PBP Module, remove any cables installed in the SFP
Module.
For Optical SFP Modules, lower the Release Lever and pull the SFP Module from PBP
Module (Figure 11).
For HSSDC2 SFP Modules, squeeze the Release Tab while pulling the SFP Module
from the PBP Module.
WARNING: DO NOT look directly into the open end of an active LC (optical) cable or optical
SFP module (with plugs removed)! Serious eye damage can occur from direct
exposure to the infrared light!

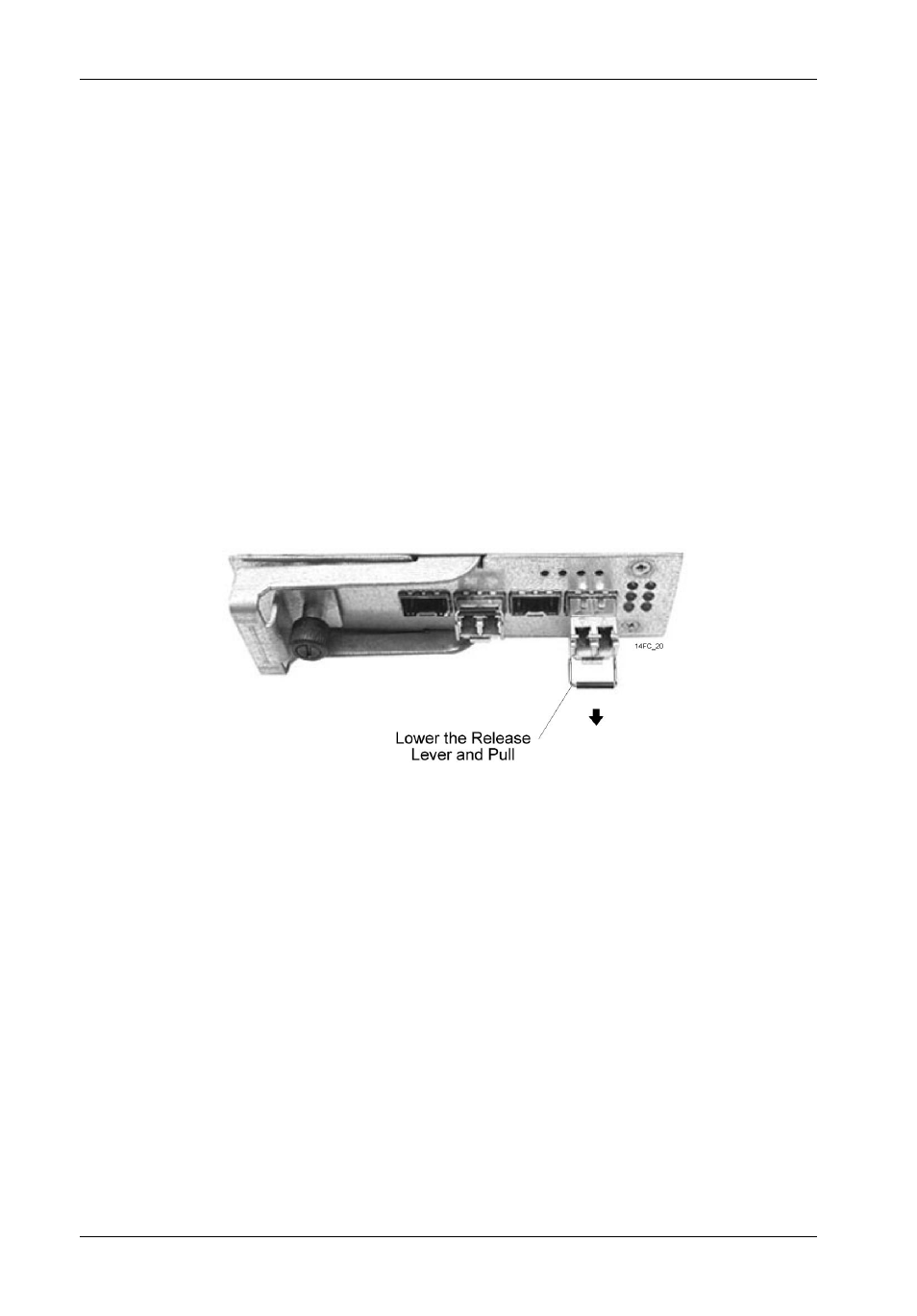

Figure 11: Removing the Optical SFP Module from the PBP Module
