14 Installation
StorCase Technology, Inc. DS351 User's Guide - Rev. B02
IF INSTALLING AN 8-BIT SCSI DEVICE:
The unit ID cable contains black, brown, red/black, and orange wires. Attach three
(3) connectors from the SCSI ID select cable to the appropriate 2mm drive pins (Figure
14). The fourth (orange) wire is not used for the 8-bit installation.
The single black wire plugs into the drive pin used to select ID1, the brown wire plugs
into the drive pin for ID2, the red/black wire plugs into the drive pin for ID4. The orange
wire is not used for this interface.
In most cases, the drive manufacturer labels each pair of SCSI ID select pins in
significant bit order (0, 1 and 2). One row of drive pins is the signal row, and one row
is designated for ground (refer to the drive manufacturer's documentation for specific
pin configurations).
The Data Silo ID select cable provides 2mm, 2-conductor drive connectors. A single
wire attaches to one side of each connector (with the exception of the red/black
connector). The cable side of each connector must align with the signal pin on the
drive. On the red/black connector, the red wire aligns with the signal pin on the drive
and the black wire aligns with the ground pin.
NOTE: Some versions of the Data Silo have a reversible ID select cable. This cable may
be attached to either 2mm or 1.25mm drive pins.

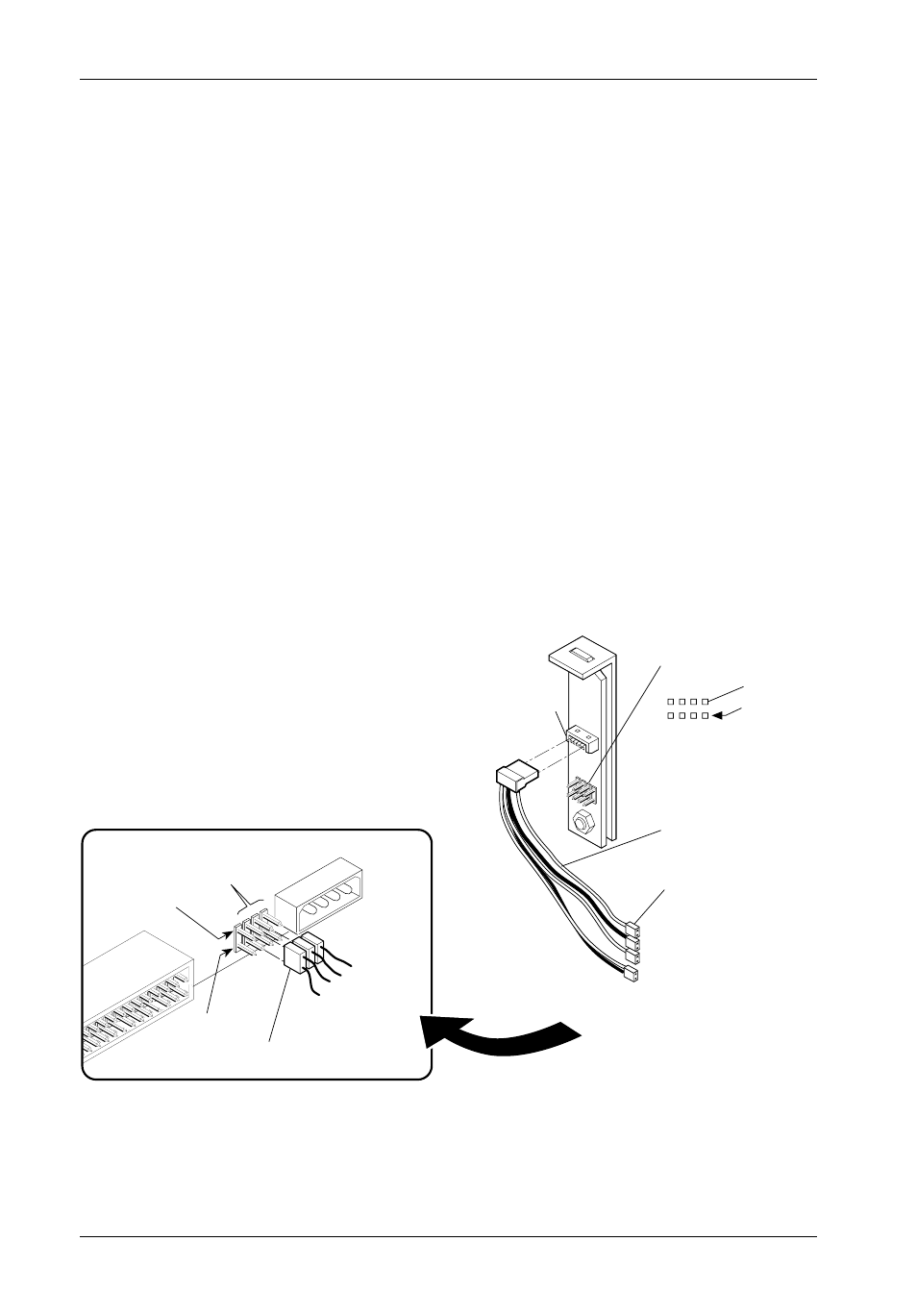

Figure 14: 8-Bit SCSI ID Cable Connection
ID Select Cable (2mm) from
Data Silo ID Select Connector
0
1
2
Typical Drive 8-Bit Single-Ended ID Select Pins
(Pins vary on each drive model. See Drive
Manufacturer's Manual.)
0538A
Signal Row
Black (ID
0)
Brow
n (ID
1)
Red (ID
2) Black (G
ND)
GND Row
ID Select
Cable
2mm Drive
Connectors
Black (ID0)
Brown (ID1)
Red (ID2)/Black (GND)
Orange (Not Used)
TO
SCSI ID Select
Connector (1.25mm)
SCSI ID Select
Connector (2mm)
ID0 ID1 ID2 Not Used
Ground
Row
Pin 1
