4 Introduction
StorCase Technology, Inc. DS351 User's Guide - Rev. B02

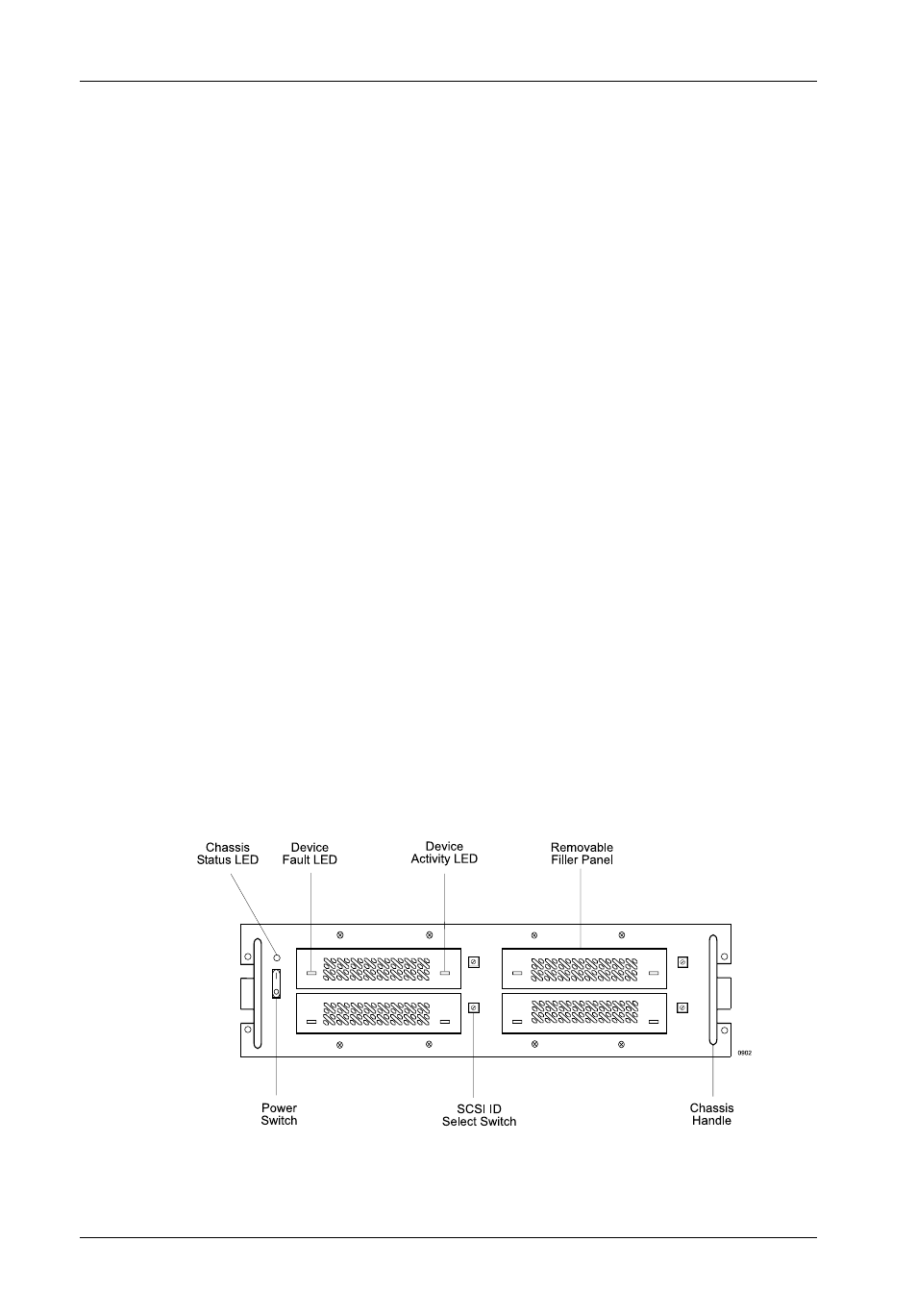

Figure 3: DS351 Front Panel
Front Panel
(Figure 3)
• Chassis LED/Audio Indicator - Provides the following operating information:
Green = Power ON
Red = Power Supply Failure (alarm will continually buzz)
Flash Red = Fan Failure (alarm will continually buzz)
Chassis Temperature Exceeds 40° C (alarm will intermittently buzz)
• SCSI ID Select Switch(es) - Provide SCSI ID selection. The Data Silo uses four (4)
rotating switches (refer to "Selecting the SCSI ID Number" for additional information).
• Device Fault LED - Provides a visual indication of the status for each installed drive.
This LED is housed in the removable filler panel(s) and provides connectors which
can easily be attached to the installed drive(s) within the chassis.
• Device Activity LED - Provide a visual indication of drive activity. This LED is housed
in the removable filler panel(s) and provides connectors which can easily be attached
to the installed drive(s) within the chassis.
• Removable Filler Panel(s) - Accommodate up to four (4) low-profile or half-height,
or two (2) full-height removable media devices (CD-ROM, DAT drives, etc.).
• Chassis Handle(s) - Provide a sturdy grip for the installation and removal of the rack-
mount chassis.
• Power Switch - Rocker switch controls power to the DS351 chassis.
