StorCase Technology, Inc. DE100i-SW160 User's Guide - Rev. C01
20 Appendix B - Factory-Installed Options

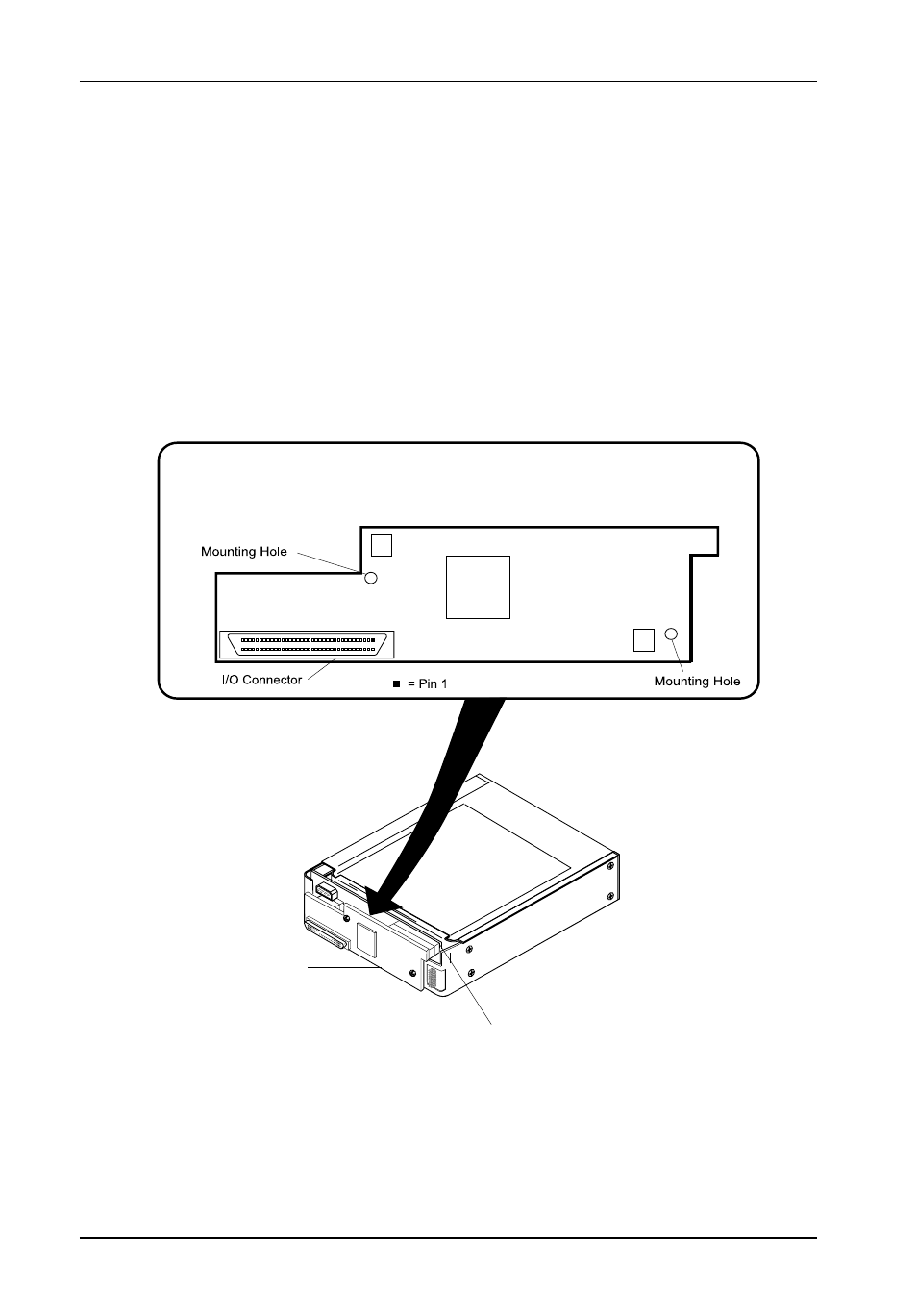

Figure B-1: Isolator Board Details
2. Remove the two (2) screws on the receiving frame motherboard.
NOTE: Save these screws for Step 5!
3. Attach two (2) stand-offs (included) to the mounting holes on the receiving frame
motherboard (Figure B-3).
4. Carefully align the connectors of the Isolator Board with the connectors on the
receiving frame motherboard and gently push the board into position. Make certain that
all connectors are properly mated.
5. Secure the board to the receiving frame stand-offs with the same two (2) screws from
Step 2 (Figure B-3).
DX1/200-SW160/RH
Isolator Board Detail
DX1/200-SW160/RH
Isolator Board
DE100 or DE200
(Ultra160 Only)
Receiving Frame
Motherboard
0501a
