StorCase Technology, Inc.

DE100i-SW160 User's Guide - Rev. C01

12

Installation

Mounting
Holes (Right)

Mounting
Holes (Bottom)

Front of Unit

Mounting
Holes (Left)

0086

IMPORTANT NOTE: In order to use remote ID selection from a computer or expansion

chassis, the Unit ID number on the DE100i-SW160 receiving

frame must be set to "0" with the provided alignment tool. Refer

to the section "Selecting the Unit ID Number" later in this manual

for the Unit ID selection procedure.

4.

With the drive carrier locked in place inside the receiving frame, install the DE100i-

SW160 into the 5.25” drive opening in the computer or expansion chassis. Use

the appropriate guides to position the DE100i-SW160, and fasten it into place with

the four (4) #6-32 Phillips Flat Hd. screws provided. Figure 9 illustrates the

location of the mounting holes. Mounting holes are provided on each side and

the bottom of the receiving frame to accommodate a variety of mounting

configurations. Use the mounting holes which best suit the computer or

expansion chassis configuration.

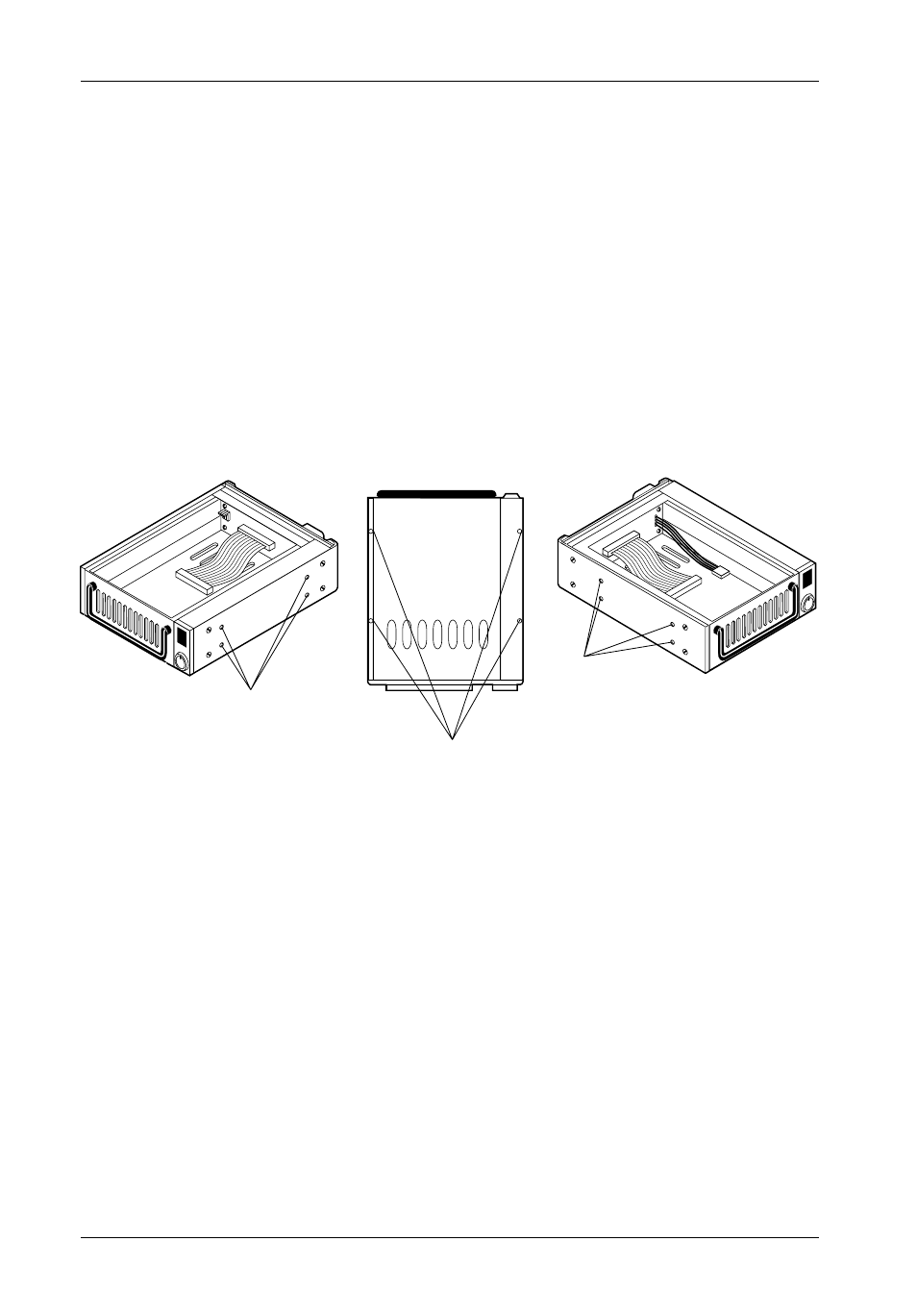

Figure 9: Receiving Frame Mounting Holes

5.

Adjust the front of the receiving frame so the carrier slides freely in and out on

the receiving frame guides. The position of adjoining peripheral units may require

adjustment.

6.

To connect the drive to a Remote Activity LED in the computer system or

expansion chassis, connect the appropriate cable(s) to W1 Pins 9 & 10 on the

receiving frame motherboard as shown in Figure 5.

7.

Connect the I/O cable from the host adapter to the receiving frame. The Pin 1

indicator on the cable must be properly aligned. Refer to Figure 5 for the correct

Pin 1 location.

NOTE:

No onboard termination is provided on the DE100i-SW160.
External termination must be provided.
