Adjusting the spin down/up timer – StorCase Technology DE100i-SW160 User Manual
Page 22

DE100i-SW160 User's Guide - Rev. C01
StorCase Technology, Inc.
Installation
15

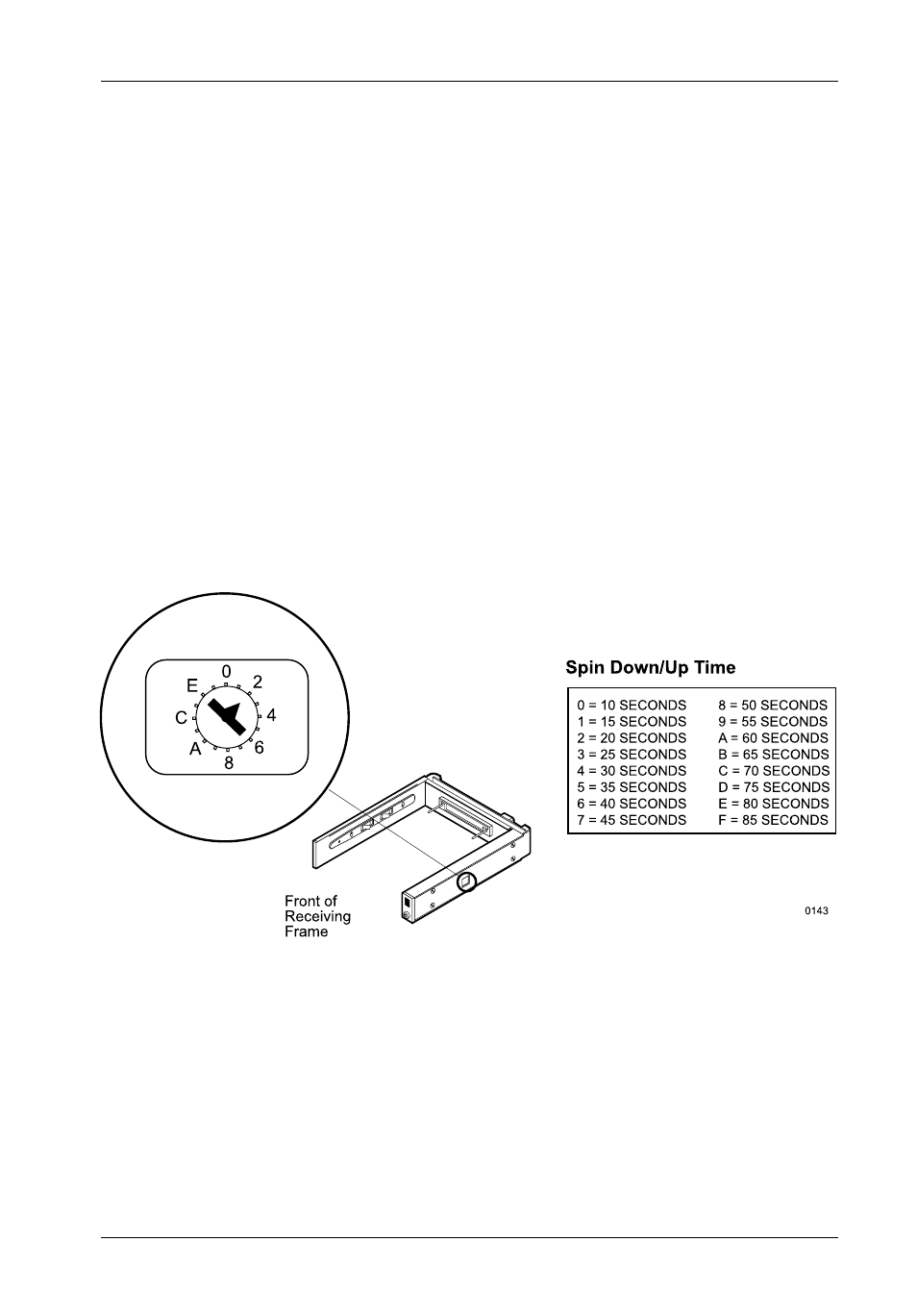

Figure 11: Device Spin Down/Up Timer Switch
Adjusting the Spin Down/Up Timer
The timer for device spin down is controlled by a small selector, located in a cutout on the side
of the DE100i-SW160 receiving frame as shown in Figure 11. When the key is turned to the
OFF position, and when the timer receives a NO SCSI Activity signal from the Isolator Board,
it waits the specified delay time before displaying a u on the front panel of the receiving frame.
The amount of time required for a disk drive to spin down is approximately 15 seconds or more.
This number can vary depending on the type of SCSI device and manufacturer (e.g. a Seagate
Barracuda may require 45 seconds). The factory configuration is set for 20 seconds. A
different delay time may be selected with the provided alignment tool. Refer to the SCSI device
manufacturers manual for more information on required device spin down time.
