4 Introduction
StorCase Technology, Inc. DE100i-SWCU2 User's Guide - Rev. B02

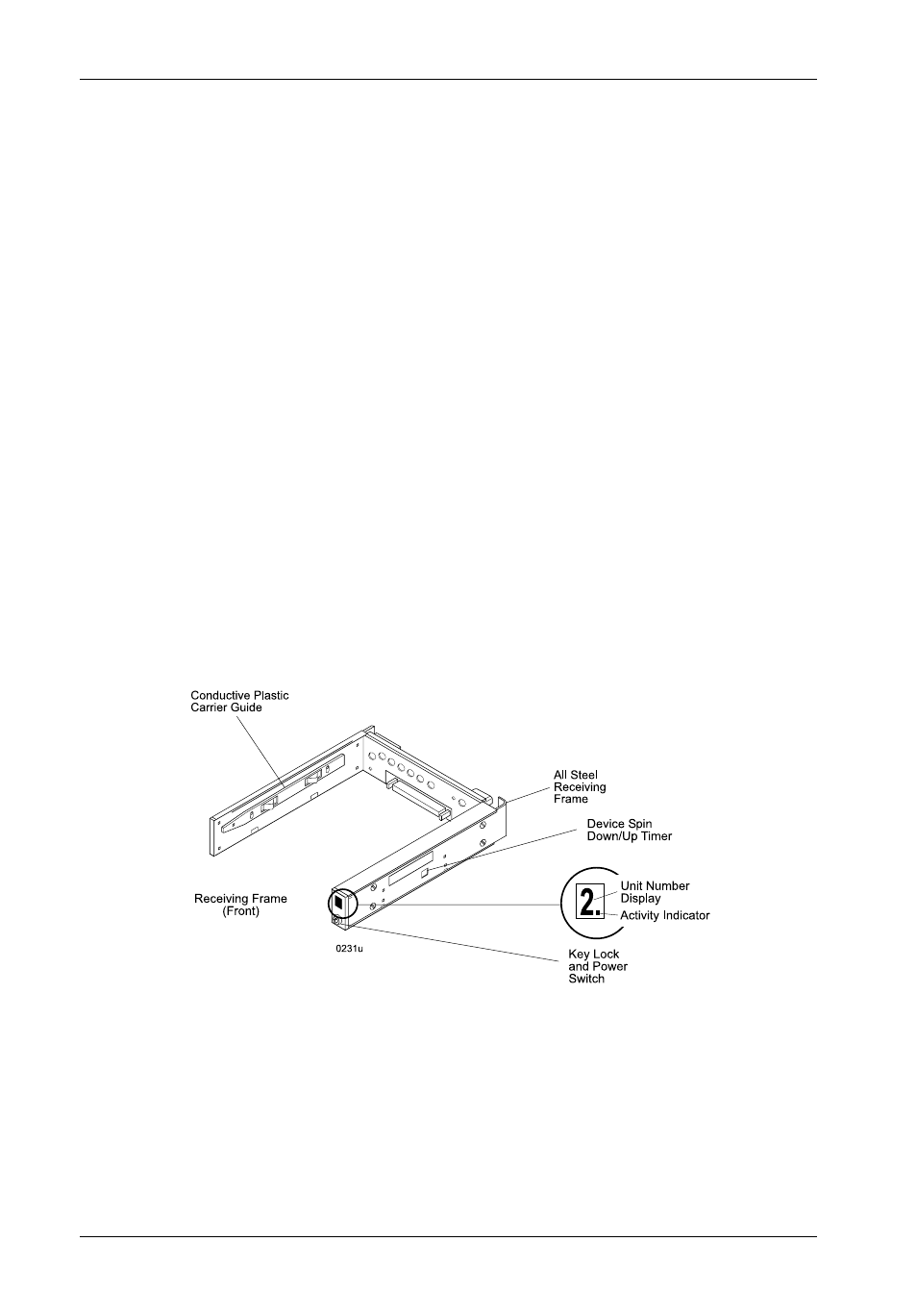

Figure 3: Receiving Frame (Front View)
Receiving Frame (Front)
(Figure 3)
• Key Lock/Drive Power Switch: Performs three functions. The key lock assures
proper seating of the device carrier within the receiving frame, turns power to the
device carrier on and off, and prevents unauthorized removal or installation of the
carrier. For the computer to access data on the drive, the key must be turned
counterclockwise to the locked position.
The key can be permanently attached to the locking mechanism as shown in
Appendix B.
• Unit ID Number Indicator (Figure 4): Displays the physical address of the
DE100i-SWCU2 device carrier if the carrier is Installed and Locked in the receiving
frame or if the carrier is Removed from the receiving frame. If the carrier is Installed
but Not Locked in the receiving frame, a "u" will be displayed to indicate an unlocked
condition. The unit ID number is selected by means of the unit ID select switch inside
the receiving frame using a special alignment tool supplied with the DE100i-SWCU2.
• Activity Indicator: A small dot next to the Unit ID Number which illuminates to show
when the host computer is accessing the data on the DE100i-SWCU2 carrier. This
dot will flash during communication with the host computer.
