Appendix C - Optional Accessories

19

DE100i-A100 User's Guide - Rev. C02

StorCase Technology, Inc.

Drive Cover

Slip Drive Cover
Lip into Top Rear
of Carrier. The
Sides of the Cover
Will Fit Between
the Drive and the
Carrier. Mounting
Holes Must be
Towards Rear of
Carrier.

1

Swing Drive Cover
Down, Covering
the Drive. Make
Certain You Do
Not Damage
Connector Pins or
Cables.

2

Slide Drive Cover
Forward Making Certain
Front Cover Lip is Inside
Carrier. Fasten Screws.

3

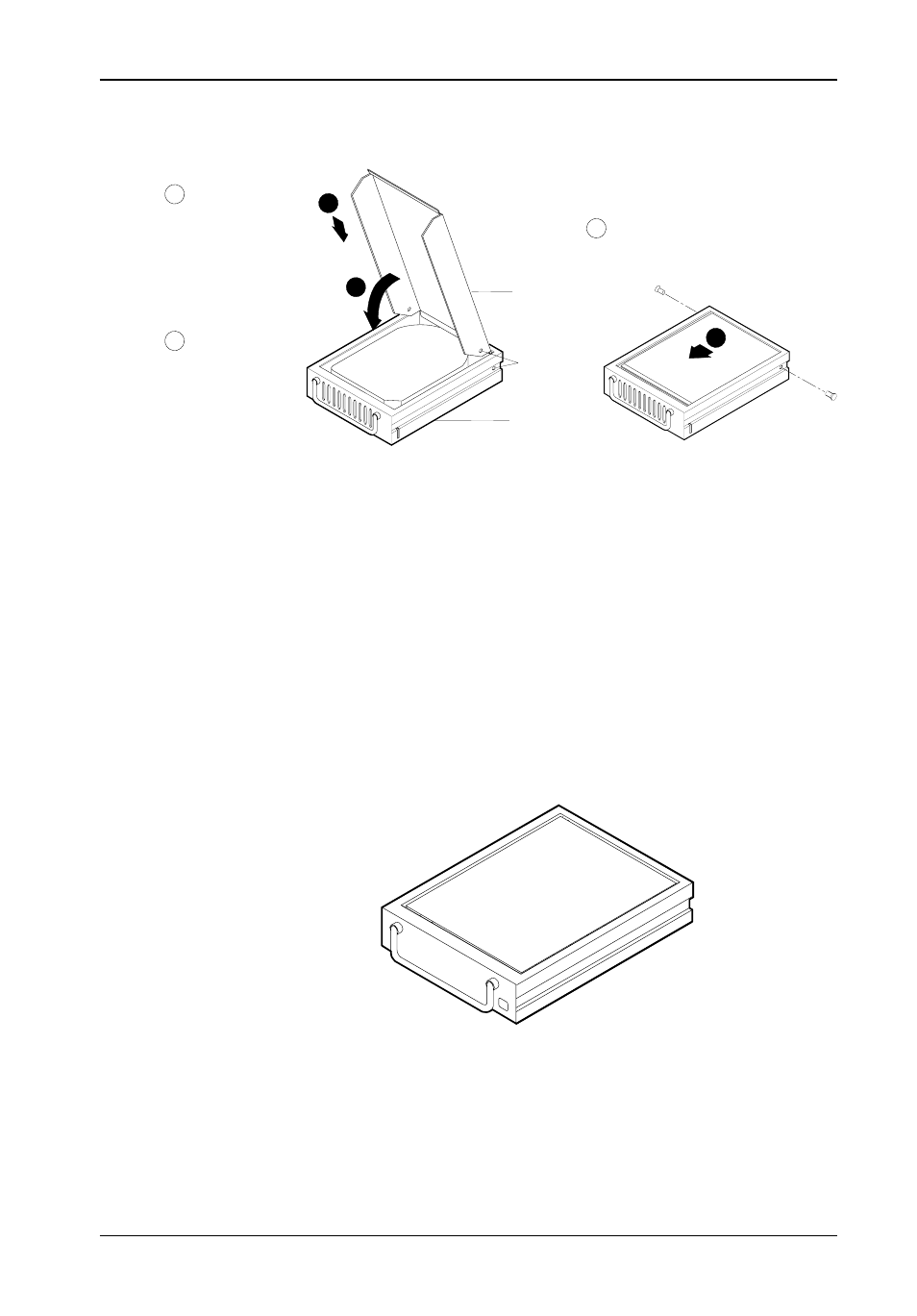

Full Drive Cover (optional)

Disk
Carrier

Drive
Cover

Mounting
Holes

1

2

3

0067

Drive Plug

0429

Figure C-3: Drive Plug

The drive plug (P/N DX100-PLUG), is designed to fill system or external enclosure bays that

are occupied by receiving frames that have no carrier units installed. The purpose of the plug

is to provide an attractive and functional method of directing proper air flow to the other installed

devices in the system or external enclosure.

Figure C-2: Full Drive Cover

The full drive cover (P/N DX100-COV), is an attractive metal cover which can provide additional

protection to the drive, preventing foreign material from coming in contact with the drive and

cables. The full drive cover is similar to the cable cover provided with the DE100i-A100, except

the full drive cover protects the drive as well as the cables. It is easily installed with two (2)

#6-32 Phillips Flat Hd. screws as shown in the illustration above.
