Installation – StorCase Technology DE100i-A100 User Manual
Page 15

8
Installation
StorCase Technology, Inc.
DE100i-A100 User's Guide - Rev. C02
Installation
1.
Attach the I/O cable on the drive carrier circuit board to the drive. Refer to Figure
7 for an illustration of the installation process.
2.
Attach the power cable on the drive carrier circuit board to the drive. Carefully insert
the drive into the drive carrier at an angle, cable-end first. Make sure none of
the cables are pinched. Lower the front of the drive carefully into place. Fasten
the drive into the carrier with the four (4) screws provided as shown in Figure 7.
3.
Install the provided cable cover.

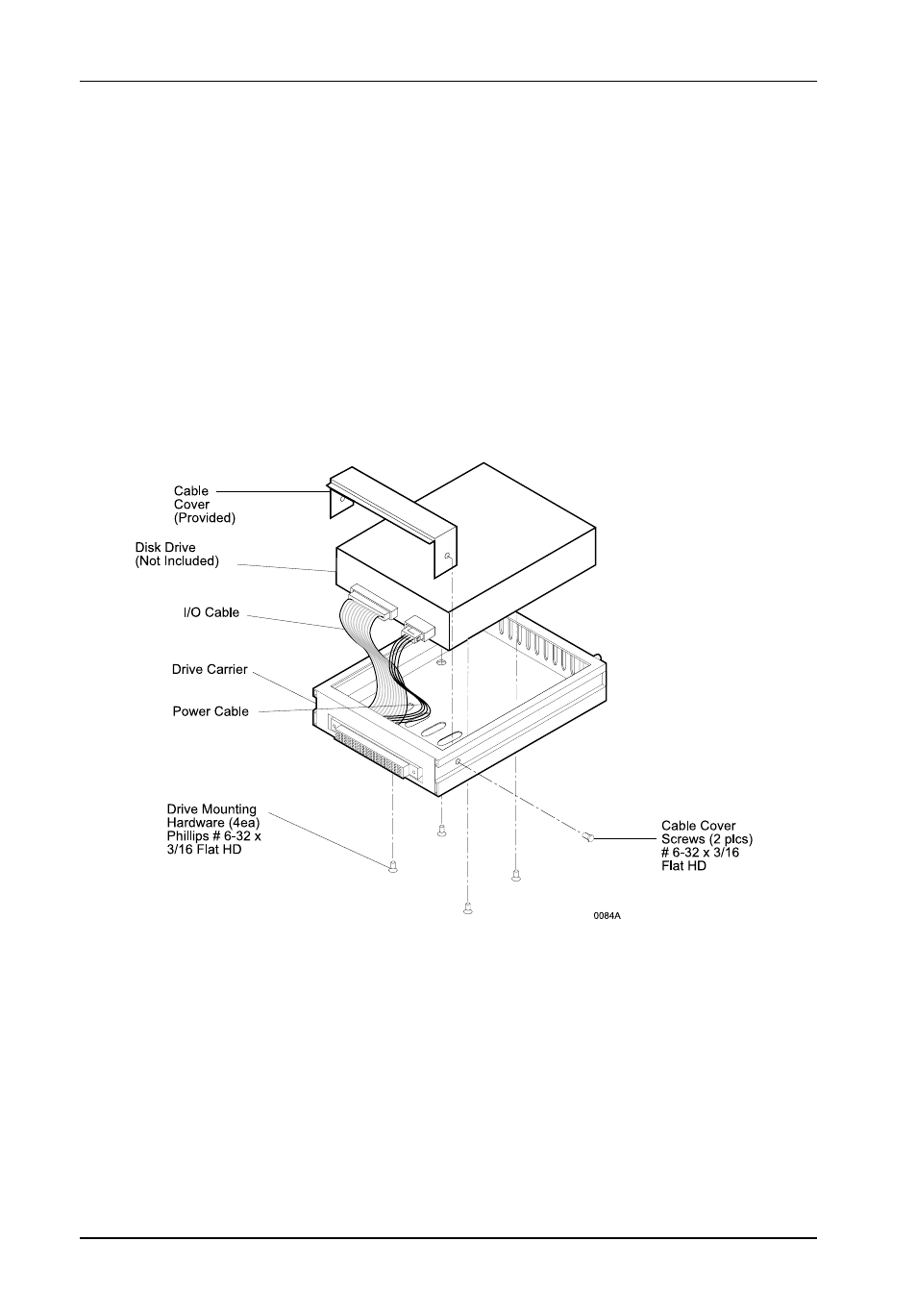

Figure 7: Drive Installation Assembly
