DE100i-A100 User's Guide - Rev. C02

StorCase Technology, Inc.

Installation

7

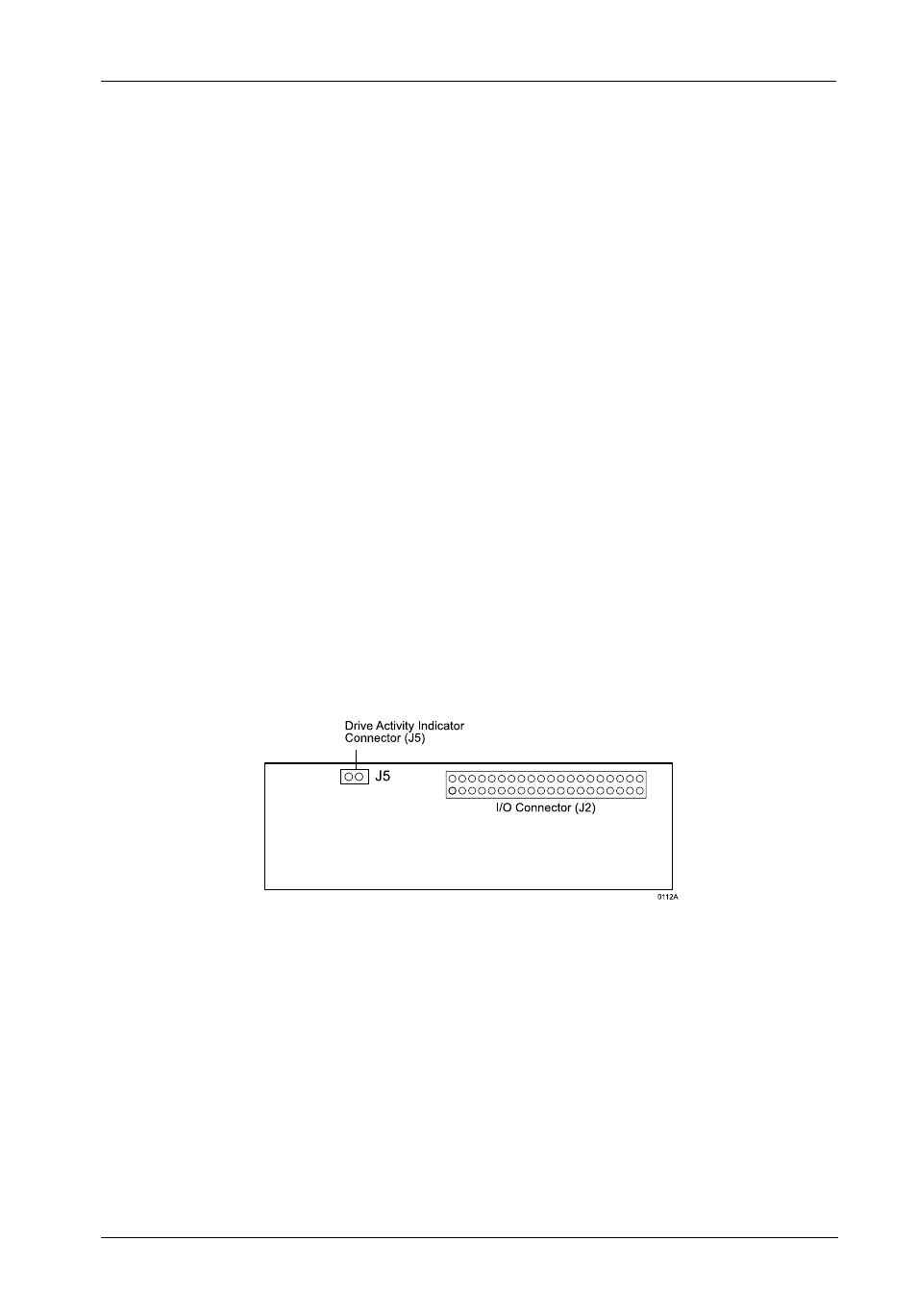

Figure 6: Drive Carrier Circuit Board

INSTALLATION

Installing the Drive into the Carrier

NOTE:

A #2 Phillips screwdriver will be required during this procedure.

While performing the steps in this section, work on a soft surface to prevent excessive shock

to the drive being installed. Also refer to the manufacturer's documentation provided with the
drive.

1.

Remove the drive from its protective packaging.

2.

Plastic Drive Bezel: If the drive came equipped with a plastic front bezel, it must

be removed before installing the drive into the drive carrier.

3.

Master/Slave Drive Selection: In most cases, the drive will be factory-configured

as a Master Ultra ATA133 drive using a jumper plug on the drive itself. No con-

figuration changes are required. For multiple drive configurations, it is necessary

to set the first Ultra ATA133 drive as Master and the second Ultra ATA133 drive to

Slave. This can be done by changing the jumper on the Ultra ATA133 drive itself

(refer to your drive manufacturer documentation for further information).

Drive Activity Indicator Connector J5 (Drive Carrier Circuit Board)

Jumper removed (factory default) disables drive activity indicator (Figure 4).

Jumper installed enables drive activity indicator.

NOTE:

If two (2) drives are installed (with J5 enabled on both drives), both drive activity

indicators will flash simultaneously, even if only one drive is being accessed.
