DE100i-A100 User's Guide - Rev. C02

StorCase Technology, Inc.

Installation

11

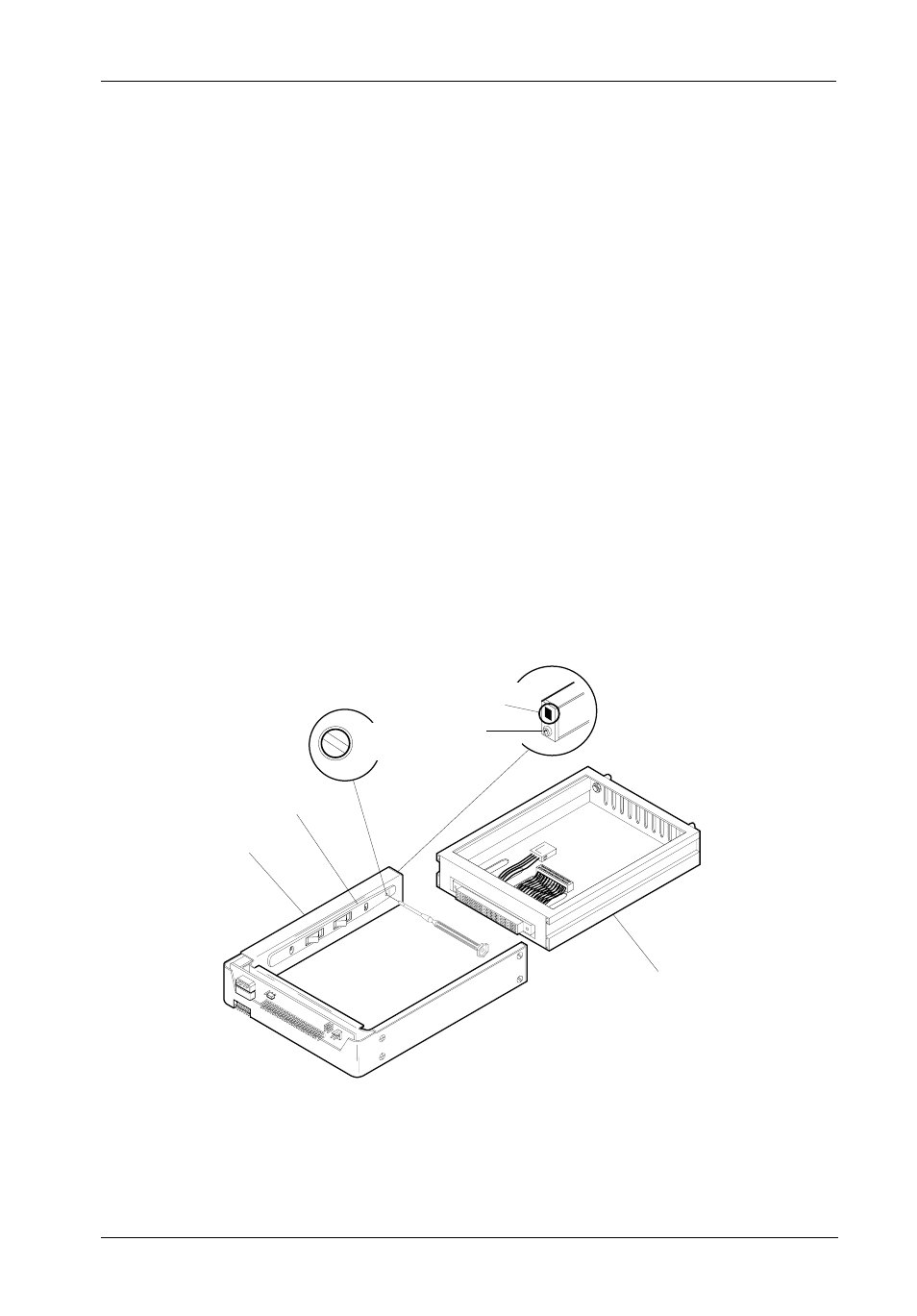

Figure 10: Unit ID Select Switch Location

WARNING:

Unlocking the carrier unit switches DC power off to the drive. Since

disk drives require a short amount of time to spin down, allow about

15 seconds before pulling the carrier unit out of the receiving frame

to avoid possible damage to the drive.

3.

Use the alignment tool supplied with the DE100i-A100 to select the ID number of the

disk drive. Refer to Figure 10 for the location of the ID Select Switch inside the

receiving frame. Table 2 lists the valid unit ID numbers available for the drive.

4.

After you have selected an appropriate unit number, replace the DE100i-A100

carrier in the receiving frame, and LOCK IT IN PLACE.

NOTE:

The lock on the DE100i-A100 receiving frame functions as a lock and

a DC power switch for the carrier unit. The lock must be engaged

in order to supply power to the carrier and installed drive.

5.

Reboot the computer. The new disk is now ready for use, although it may have to

be formatted or initialized prior to use with your operating system and applications

software.

Drive Carrier

Guide

Receiving

Frame

Unit ID Select

Rotating Switch

Drive Carrier

(removed)

Unit ID

Number

Display

Lock

and DC

Power

Switch

Front of Unit
