Appendix B - Attaching the ON/OFF Key
The following information will provide the necessary steps to attach the ON/OFF key to
the key lock mechanism so that it is non-removable, preventing accidental key loss. The
procedure can be reversed at a later date to revert back to a removable key.
1. Make certain power is OFF to the receiving
frame.
Locate the rectangular shaped key lock
mechanism access hole on the inside of the
receiving frame. Note that the pawl is in an
upright position.
Insert the key into the lock.
2. Rotate the key 90 degrees counterclockwise
so that the pawl is visible in the access hole
as shown in the figure at left.
3. Using the provided alignment tool, unscrew
and remove the pawl from the access hole.
4. Rotate the key 180 degrees clockwise.
5. Reinstall the pawl into the access hole with
the alignment tool.
The key lock has now been reconfigured.

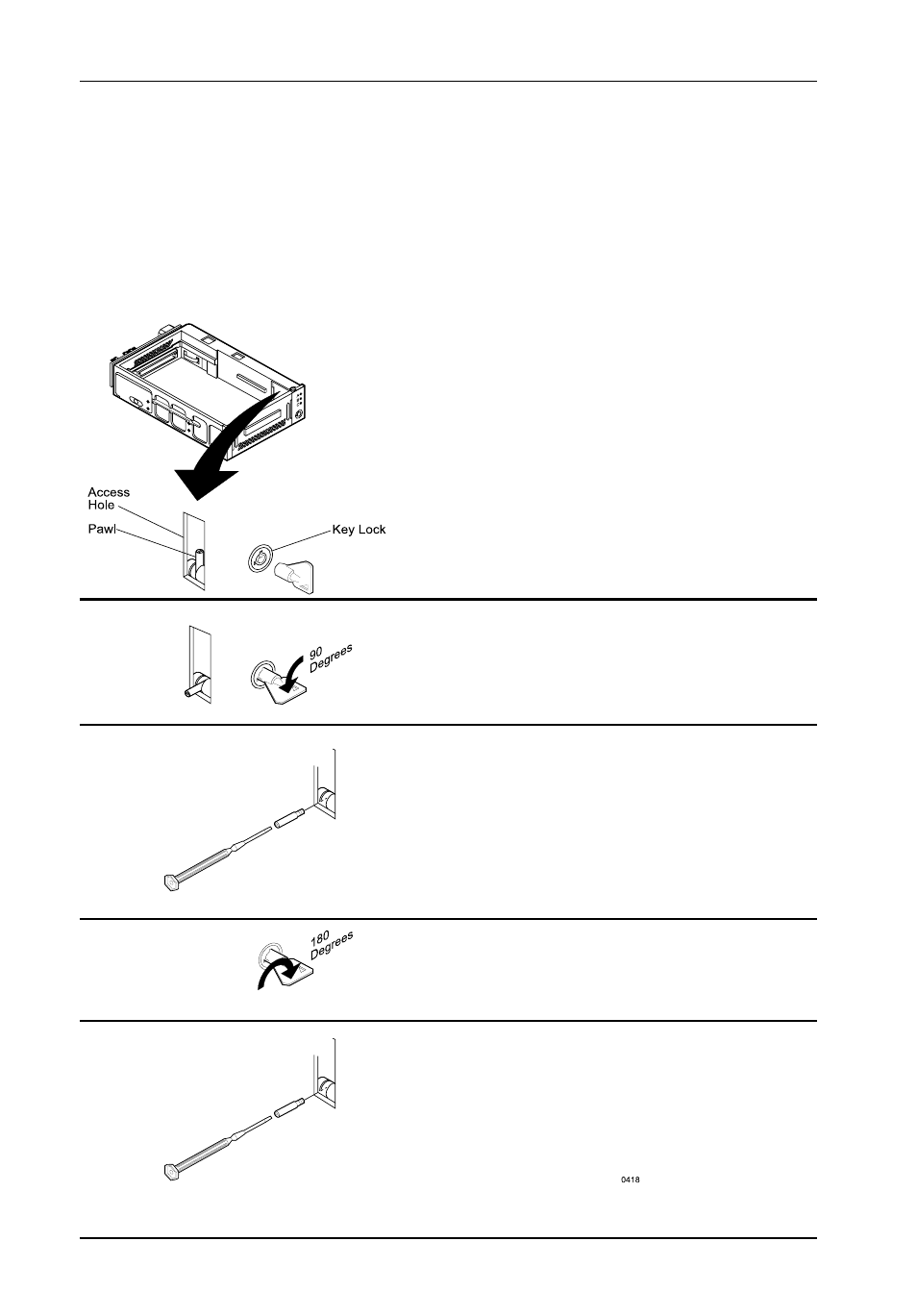

Figure B-1: Attaching the ON/OFF Key
